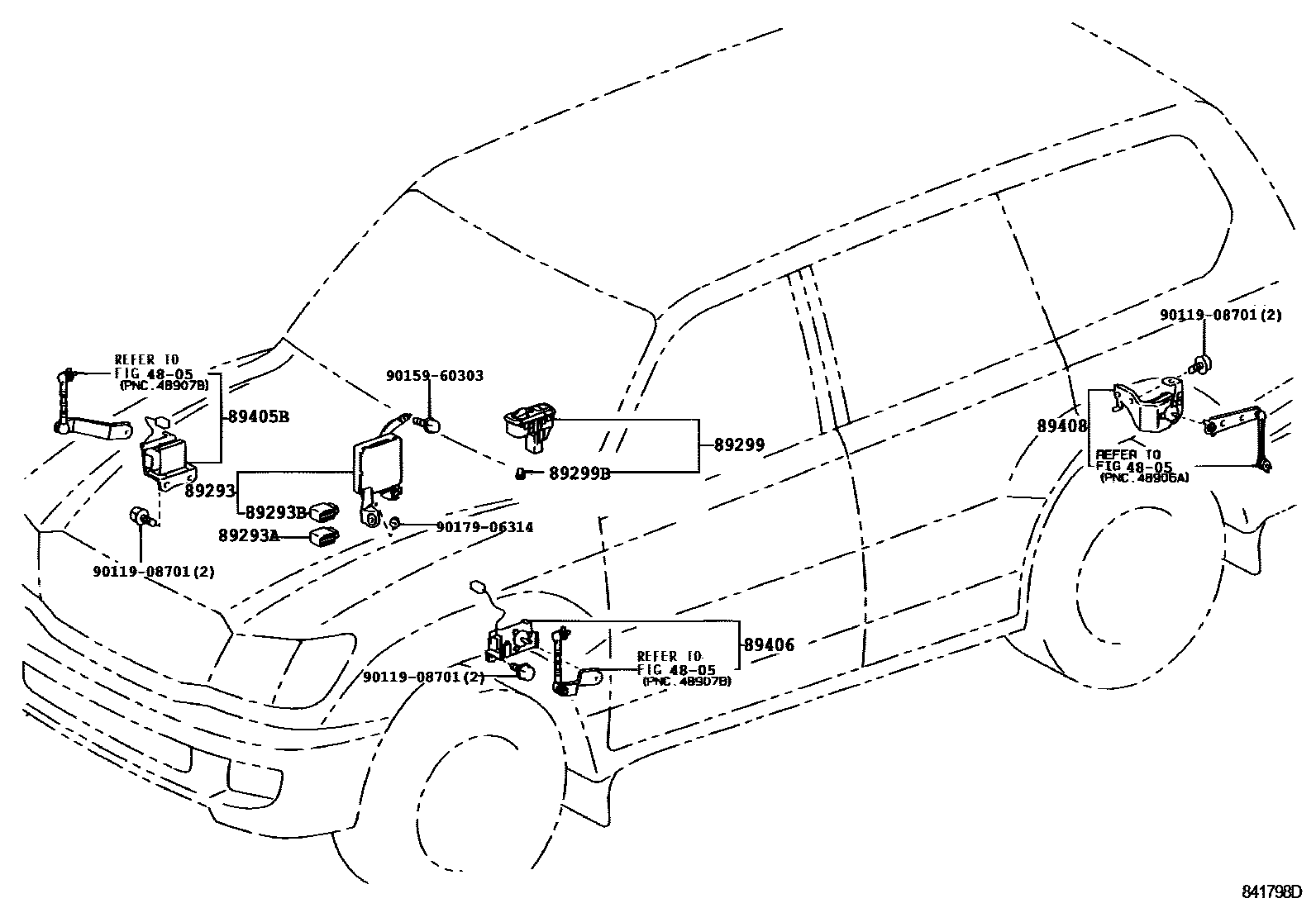

ELECTRONIC MODULATED SUSPENSION

4805HEIGHT CONTROL (AUTO-LEVELER)

→ Go to FIG 48-05

89293COMPUTER, SUSPENSION CONTROL

main89290-60010iHDJ101,UZJ100199801-199907

main89290-60011iHDJ101,UZJ100..CYG,VXL199907-200208

main89290-60030iHDJ101,UZJ100..CYG,VXL200208-200409

main89290-60031iHDJ101,UZJ100..CYG,VXL200409-200505

89293ARELAY, SUSPENSION CONTROL

main88263-24020iHDJ101,UZJ100199801-199907

89293BRELAY, SUSPENSION CONTROL MAIN

main89278-60010iHDJ101,UZJ100..CYG,VXL200505

main90987-02004iHDJ101,UZJ100199801-199907

89299SWITCH, SUSPENSION CONTROL

main89299-60010iHDJ101,UZJ100199801-199907

main89299-60020iHDJ101,UZJ100..CYG,VXL200308-200505

89299BBULB(FOR SUSPENSION CONTROL SWITCH)

main90010-01039×3iHDJ101,UZJ100..CYG,VXL200505

89405BSENSOR SUB-ASSY, HEIGHT CONTROL, FRONT RH

main89405-60010iHDJ101,UZJ100199801-199804

main89405-60011iHDJ101,UZJ100..CYG,VXL199907-200208

main89405-60012iHDJ101,UZJ100..CYG,VXL200607

89406SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT LH

main89406-60010iUZJ100199801-199806

main89406-60011iUZJ100199806-199907

main89406-60012iUZJ100..CYG,VXL200607

main89406-60020iHDJ101199801-199806

main89406-60021iHDJ101..VXL199907-200208

main89406-60022iHDJ101200607

89408SENSOR SUB-ASSY, HEIGHT CONTROL, REAR

main89407-60010iHDJ101,UZJ100199801-199907

9011908701

main90119-08701

9015960303

main90159-60303

9017906314

main90179-06314

12 parts on this diagram · 1 diagram in section
