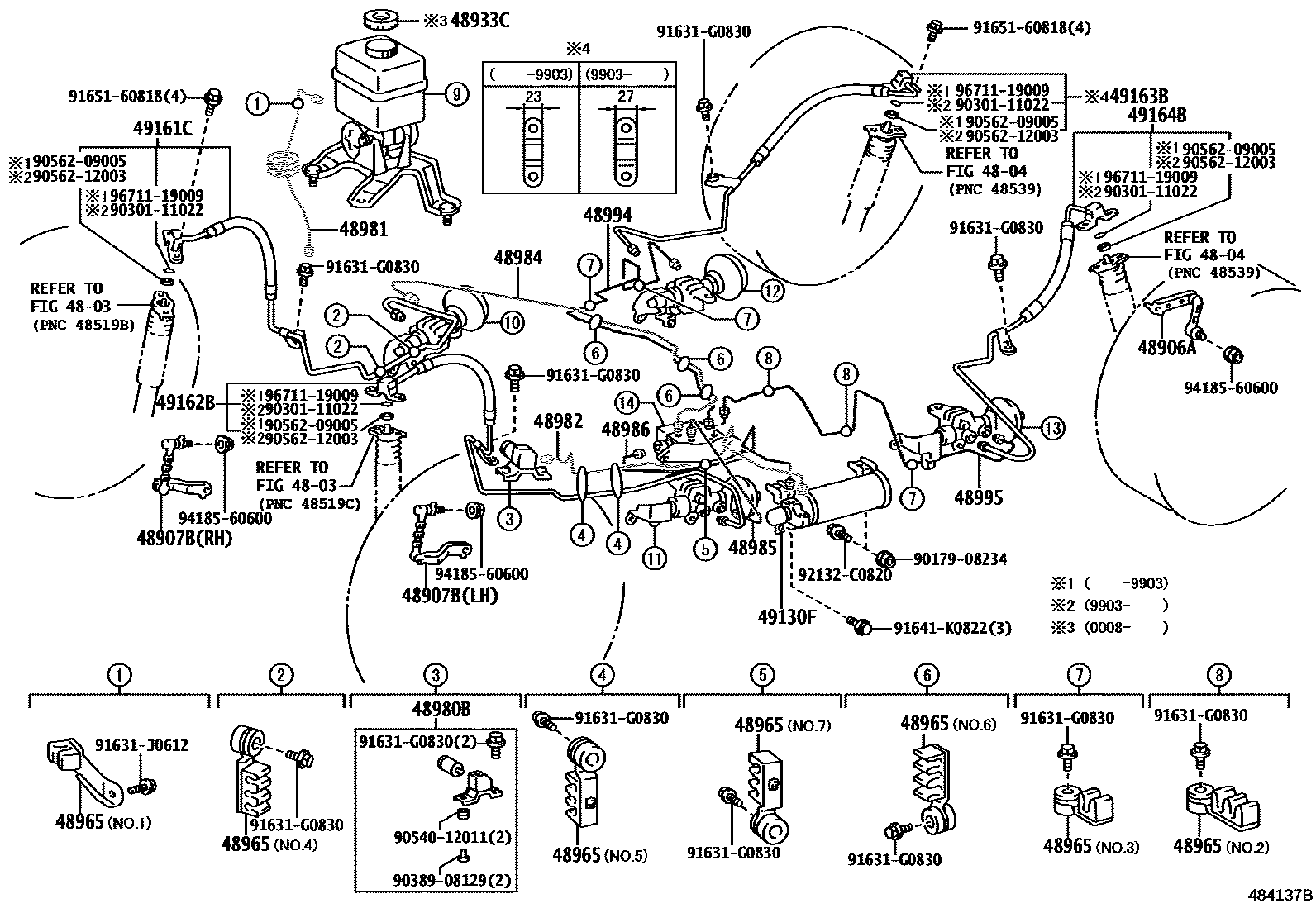

HEIGHT CONTROL (AUTO-LEVELER)

0001 1 0002 1 0003 1

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

48906ALINK SUB-ASSY, HEIGHT CONTROL SENSOR, REAR

main48906-60010iHDJ101,UZJ100199801-199907

48907BLINK SUB-ASSY, HEIGHT CONTROL SENSOR, FRONT

main48907-60010iHDJ101,UZJ100199801-199803

main48907-60020iHDJ101,UZJ100199801-199803

main48907-60030iHDJ101,UZJ100..CYG,VXL199907-200208

main48907-60031iHDJ101,UZJ100..CYG,VXL200608-200708

main48907-60040iHDJ101,UZJ100199803-199907

main48907-60041iHDJ101,UZJ100..CYG,VXL200608-200708

48933CCOVER, HEIGHT CONTROL RESERVOIR CAP

main48933-60010iHDJ101,UZJ100..CYG,VXL200008-200208

48965CLAMP, HEIGHT CONTROL TUBE

main48965-60010iHDJ101,UZJ100..CYG,VXL200505

main48965-60030×2iHDJ101,UZJ100199801-199907

main48965-60031×2iHDJ101,UZJ100..CYG,VXL199907-200005

main48965-60032×2iHDJ101,UZJ100..CYG,VXL200505

main48965-60040×3iHDJ101,UZJ100199801-199907

main48965-60041×3iHDJ101,UZJ100..CYG,VXL200208-200505

main48965-60050×2iHDJ101,UZJ100199801-199907

main48965-60051×3iHDJ101,UZJ100..CYG,VXL199907-200005

main48965-60052×2iHDJ101,UZJ100..CYG,VXL200505

main48965-60060×2iHDJ101,UZJ100..CYG,VXL199907-200005

main48965-60061×2iHDJ101,UZJ100..CYG,VXL200208-200505

main48965-60070×3iHDJ101,UZJ100199801-199907

main48965-60071×3iHDJ101,UZJ100..CYG,VXL199907-200005

main48965-60072×3iHDJ101,UZJ100..CYG,VXL200005-200208

main48965-60080iHDJ101,UZJ100..CYG,VXL199907-200005

main48965-60081iHDJ101,UZJ100..CYG,VXL200005-200208

48980BACUUMULATOR ASSY, HEIGHT CONTROL

main48980-60010iHDJ101,UZJ100..CYG,VXL200208-200505

48981TUBE, HEIGHT CONTROL, NO.1

main48981-60010iHDJ101,UZJ100..CYG,VXL200208-200505

48982TUBE, HEIGHT CONTROL, NO.2

main48982-60010iHDJ101,UZJ100..CYG,VXL199907-200005

main48982-60011iHDJ101,UZJ100..CYG,VXL200005-200208

48984TUBE, HEIGHT CONTROL, NO.4

main48984-60010iHDJ101199801-199907

main48984-60011iHDJ101..VXL199907-200005

main48984-60012iHDJ101200208-200505

main48984-60020iUZJ100199801-199907

main48984-60021iUZJ100..CYG,VXL199907-200005

main48984-60022iUZJ100..CYG,VXL200208-200505

48985TUBE, HEIGHT CONTROL, NO.5

main48985-60010iHDJ101,UZJ100199801-199907

main48985-60011iHDJ101,UZJ100..CYG,VXL200208-200505

48986TUBE, HEIGHT CONTROL, NO.6

main48986-60010iHDJ101,UZJ100199801-199907

main48986-60011iHDJ101,UZJ100..CYG,VXL200005-200208

48994TUBE, HEIGHT CONTROL, REAR NO.1

main48994-60010iHDJ101199801-199907

main48994-60011iHDJ101..VXL199907-200005

main48994-60012iHDJ101..VXL200005-200208

main48994-60020iUZJ100199801-199907

main48994-60021iUZJ100..CYG,VXL199907-200005

main48994-60022iUZJ100..CYG,VXL200505

48995TUBE, HEIGHT CONTROL, REAR NO.2

main48995-60010iHDJ101,UZJ100199801-199907

main48995-60011iHDJ101,UZJ100..CYG,VXL199907-200005

main48995-60012iHDJ101,UZJ100..CYG,VXL200005-200208

49130FACCUMULATOR ASSY, SUSPENSION CONTROL PUMP

main49130-60010iHDJ101,UZJ100199801-199907

49161CHOSE, SUSPENSION CONTROL PRESSURE, NO.1

main49161-60010iHDJ101,UZJ100199801-199903

main49161-60011iHDJ101,UZJ100199903-199907

49162BHOSE, SUSPENSION CONTROL PRESSURE, NO.2

main49162-60010iHDJ101,UZJ100199801-199903

main49162-60011iHDJ101,UZJ100199903-199907

49163BHOSE, SUSPENSION CONTROL PRESSURE, NO.3

main49163-60010iHDJ101,UZJ100199801-199903

main49163-60011iHDJ101,UZJ100199903-199907

49164BHOSE, SUSPENSION CONTROL PRESSURE, NO.4

main49164-60010iHDJ101,UZJ100199801-199903

main49164-60011iHDJ101,UZJ100199903-199907

9017908234

main90179-08234

9030111022

main90301-11022

9038908129

main90389-08129

9054012011

main90540-12011

9056209005

main90562-09005

9056212003

main90562-12003

91631G0830

main91631-G0830

91631J0612

main91631-J0612

91641K0822

main91641-K0822

9165160818

main91651-60818

92132C0820

main92132-C0820

9418560600

main94185-60600

9671119009

main96711-19009

32 parts on this diagram · 3 diagrams in section
