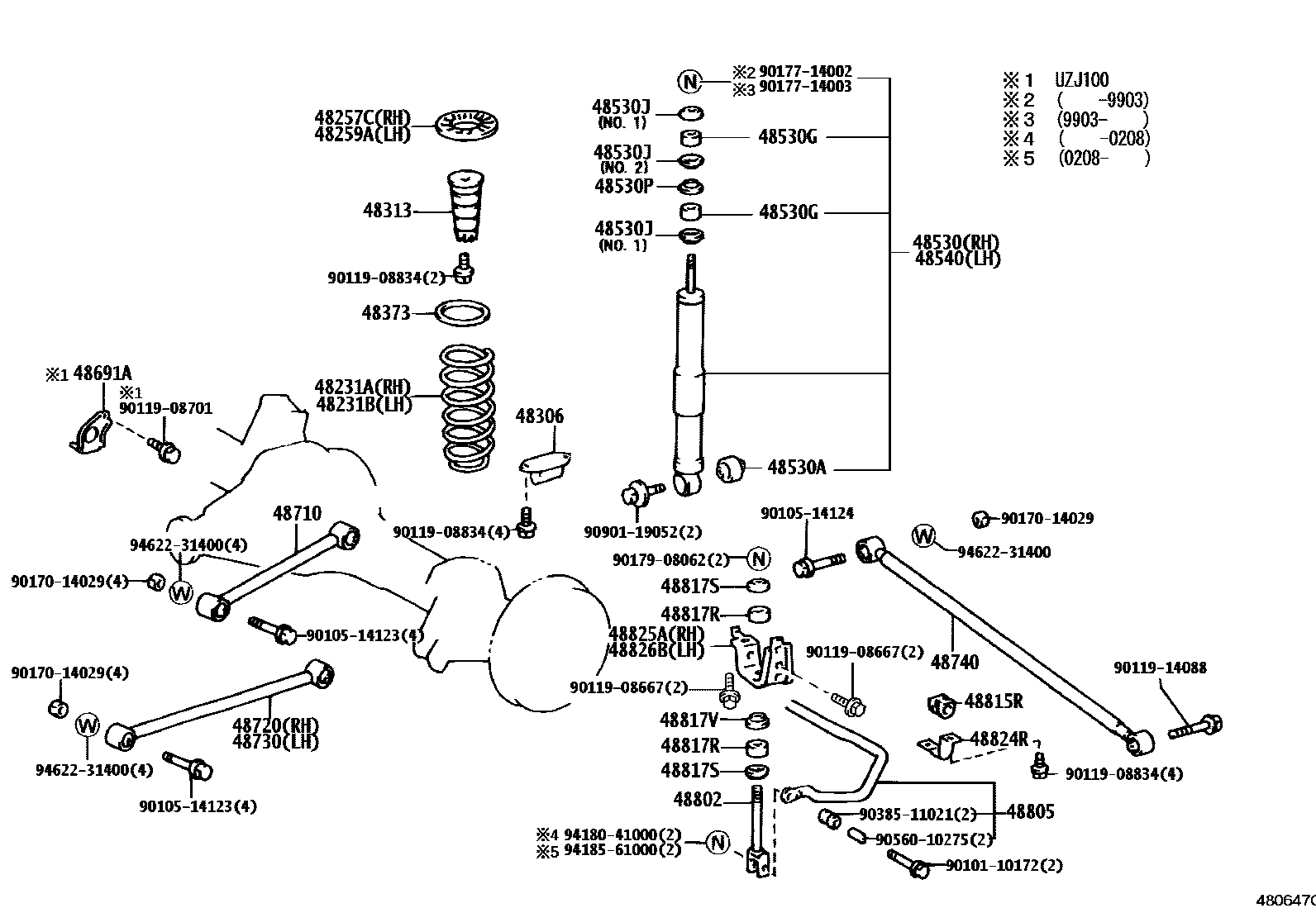

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1W(ACTIVE HEIGHT CONTROL)

48231ASPRING, COIL, REAR RH

main48231-6A640iHDJ101199801-200208

main48231-6A650iUZJ100..VXL200208-200505

main48231-6A740iUZJ100..CYG,VXL199907-200208

main48231-6A750iHDJ101200208-200505

main48231-6A760iHDJ101199801-199808

main48231-6A780iHDJ101..VXL199907-200208

48231BSPRING, COIL, REAR LH

main48231-6A640iHDJ101;UZJ100..VX200208-200505

main48231-6A650iUZJ100..VXL200208-200505

main48231-6A740iUZJ100199801-199907

main48231-6A750iHDJ101..VXL199907-200208

main48231-6A760iHDJ101199801-199808

main48231-6A770iHDJ101199805-199907

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-60020iHDJ101,UZJ100199801-200208

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-60020iHDJ101,UZJ100199801-200208

48306BUMPER SUB-ASSY, REAR SPRING

main48306-60140×2iHDJ101,UZJ100199801-200208

48313SPRING, HOLLOW(FOR REAR SUSPENSION)

main48313-60010×2iHDJ101,UZJ100..VX,VXL199801-200208

main48313-60050×2iHDJ101,UZJ100..CYG,VXL200208-200505

48373SPACER, REAR SPRING

main48373-60010iHDJ101,UZJ100199801-200208

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-69106iHDJ101,UZJ100199801-199903

main48530-69107iHDJ101,UZJ100..CYG,VXL199907-200204

main48530-69145iHDJ101,UZJ100..CYG,VXL200208-200505

main48531-69556iHDJ101,UZJ100..VX,VXL199801-199903

main48531-69557iHDJ101,UZJ100..VX,VXL199903-200206

main48531-69685iHDJ101,UZJ100..VX,VXL200208-200411

main48531-69775iHDJ101,UZJ100..VX,VXL200411-200505

main48531-69835iHDJ101,UZJ100..VX,VXL200609

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-19010×2iHDJ101,UZJ100..CYG,VXL200208-200505

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90948-01064×4iHDJ101,UZJ100..VX,VXL199801-200208

main90948-01065×2iHDJ101,UZJ100199801-199903

main90948-01066×2iHDJ101,UZJ100199801-199903

main90948-01077×2iHDJ101,UZJ100..CYG,VXL199907-200208

main90948-01078×2iHDJ101,UZJ100199903-199907

48530JRETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)

main90948-02173×2iHDJ101,UZJ100; HDJ101,UZJ100..VX,VXL199801-199903

main90948-02184×2iHDJ101,UZJ100..CYG,VXL; UZJ100..VX200208-200505

48530PRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)

main90948-02170×2iHDJ101,UZJ100..VX,VXL200208-200505

main90948-02171×2iHDJ101,UZJ100199801-199903

main90948-02183×2iHDJ101,UZJ100199903-199907

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-69106iHDJ101,UZJ100199801-199903

main48530-69107iHDJ101,UZJ100..CYG,VXL199907-200204

main48530-69145iHDJ101,UZJ100..CYG,VXL200505

main48531-69556iHDJ101,UZJ100..VX,VXL199801-199903

main48531-69557iHDJ101,UZJ100..VX,VXL199903-200206

main48531-69685iHDJ101,UZJ100..VX,VXL200208-200411

main48531-69775iHDJ101,UZJ100..VX,VXL200505-200609

main48531-69835iHDJ101,UZJ100..VX,VXL200609

48691AINSULATOR, UPPER ARM BUSH, HEAT

main48691-60010iUZJ100199801-200208

48710ARM ASSY, UPPER CONTROL

main48710-60070iHDJ101,UZJ100199801-200208

main48710-60080iHDJ101,UZJ100199801-200208

48720ARM ASSY, LOWER CONTROL, RH

main48720-60040iHDJ101,UZJ100200505

48730ARM ASSY, LOWER CONTROL, LH

main48720-60040iHDJ101,UZJ100199801-200208

48740ROD ASSY, REAR LATERAL CONTROL

main48740-60080iHDJ101,UZJ100199801-200208

48802LINK SUB-ASSY, STABILIZER

main48802-60070×2iHDJ101,UZJ100199801-199803

main48802-60090×2iHDJ101,UZJ100199803-200208

48805BAR SUB-ASSY, REAR STABILIZER

main48805-60060iHDJ101,UZJ100..VX,VXL200208-200505

main48805-60090iHDJ101,UZJ100199801-199907

48815RBUSH, STABILIZER(FOR REAR)

main48815-26250×2iHDJ101,UZJ100199801-199907

main48815-60140×2iHDJ101,UZJ100..VX,VXL200208-200505

48817RCUSHION, STABILIZER(FOR REAR)

main48817-30010×4iHDJ101,UZJ100199801-200208

48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)

main90948-02126×4iHDJ101,UZJ100199801-200208

48817VRETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR)

main90948-02127×2iHDJ101,UZJ100199801-200208

48824RBRACKET, STABILIZER(FOR REAR)

main48824-26210×2iHDJ101,UZJ100199801-200208

48825ABRACKET, REAR STABILIZER END

main48825-60050iHDJ101,UZJ100199801-200208

48826BPROTECTOR, REAR STABILIZER BAR

main48826-60010iHDJ101,UZJ100199801-200208

9010110172

main90101-10172

9010514123

main90105-14123

9010514124

main90105-14124

9011908667

main90119-08667

9011908701

main90119-08701

9011908834

main90119-08834

9011914088

main90119-14088

9017014029

main90170-14029

9017714002

main90177-14002

9017714003

main90177-14003

9017908062

main90179-08062

9038511021

main90385-11021

9056010275

main90560-10275

9090119052

main90901-19052

9418041000

main94180-41000

9418561000

main94185-61000

9462231400

main94622-31400

44 parts on this diagram · 2 diagrams in section
