CAUTION PLATE

0001 1 0002 1

33621APLATE, CONTROL LEVER CAUTION

main33621-60300iHZJ81..ATM..GX199305-199701

main33621-60301iHZJ81..ATM199701-199801

35519PLATE, AUTOMATIC TRANSMISSION CAUTION

main35519-60050iFJ80,FZJ80,HDJ81,HZJ81..ATM199001-199302

main35519-60051iFZJ80,HDJ81,HZJ81..ATM199703-199801

36369LABEL, TRANSFER INFORMATION

main36369-60050iHDJ81,HZJ81..LUB..MTM; HZJ81..STD199001-199108

main36369-60080iHDJ81,HZJ81..LUB..MTM199001-199108

main36369-60100iFJ80,HDJ81,HZJ81..ATM199001-199108

main36369-60200iHDJ81,HZJ81..MTM..(GX,VX)..(DSL,TD2)199108-199608

main36369-60210iFZJ80,HDJ81,HZJ81..MTM..(GX,VX)199108-199503

main36369-60220iFJ80,FZJ80,HDJ81,HZJ81..ATM199108-199503

main36369-60290iFZJ80,HDJ81..MTM199501-199608

main36369-60310iHZJ81..ATM..GX; HZJ81..LUB;FZJ80,HDJ81..ATM199305-199608

main36369-60360iHZJ81..MTM199608-199801

main36369-60390iFZJ80,HDJ81,HZJ81199608-199801

41991APLATE, CAUTION

main41991-60050iFJ80,HDJ81,HZJ81199001-199002

main41991-60051iFZJ80,HDJ81;HZJ81..VX,VXL;HZJ81..SOB..GX199302-199801

45197ALABEL, AIRBAG CAUTION

main45197-60010iFZJ80,HDJ81,HZJ81199501-199608

69339BPLATE, CHILD PROTECTOR LOCK CAUTION

main69339-91704iFJ80,FZJ80..LUB199001-199801

74517PLATE, EXHAUST TEMPERATURE CAUTION

main74517-20020iHZJ81..STD199001-199305

main74517-32050iFJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL199001-199507

main74517-35010iFZJ80,HDJ81,HZJ81199507-199608

main74517-60010iHZJ81..MTM199507-199608

74529PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION

main69339-12010iFZJ80..GX199305-199801

74544DPLATE, TIRE CARRIER CAUTION

main74544-35060iFJ80,FZJ80,HDJ81,HZJ81199001-199801

74544ELABEL, REAR NO.2 SEAT INFORMATION

main74544-60070iFJ80,FZJ80199001-199612

main74544-60080iFZJ80199612-199801

74552PLATE, SAFETY CAUTION

main74552-60870iFJ80199001-199208

main74552-60880iHZJ81..GX199001-199208

main74552-60881iHZJ81..GX199501-199506

main74552-60882iHZJ81..GX199506-199801

main74552-60890iHDJ81199001-199208

main74582-60050iHZJ81..STD199001-199208

main74582-60550iFZJ80..VX199208-199501

main74582-60560iFZJ80..VXL;HDJ81,HZJ81..VX,VXL199208-199501

main74582-60561iFZJ80,HDJ81,HZJ81..LUB199506-199608

74559APLATE, FUEL CAUTION

main74559-89101iHDJ81,HZJ81199001-199208

74562PLATE, EMISSION CONTROL SYSTEM INFORMATION

main74562-60140iFJ80199001-199208

main74562-60150iHZJ81199001-199501

main74562-60160iHDJ81199001-199501

main74562-60220iFZJ80199208-199501

main74562-60221iFZJ80199501-199505

main74562-60260iHZJ81199501-199505

main74562-60270iHDJ81199501-199505

74563PLATE, EMISSION CONTROL DEVICE IDENTIFICATION

main74563-60030iFJ80199001-199208

main74563-60060iFZJ80199208-199501

main74563-60070iFZJ80199501-199801

74571PLATE, BRAKE FLUID CAUTION

main47288-32010iFJ80,FZJ80,HDJ81,HZJ81199001-199305

74579ALABEL, UNLEADED FUEL INFORMATION

main74579-30011iFJ80199001-199203

74582PLATE, LOAD SENSING VALVE MARKING

main74582-60710iFZJ80..GX199305-199501

main74582-60711iFZJ80..GX199501-199506

main74582-60712iFZJ80..GX199506-199608

75341BPLATE, HOOD NAME

main75341-20060iHDJ81,HZJ81199001-199801

87511APLATE, SEAT HEATER CAUTION

main87511-60010iFJ80,FZJ80..VX199001-199501

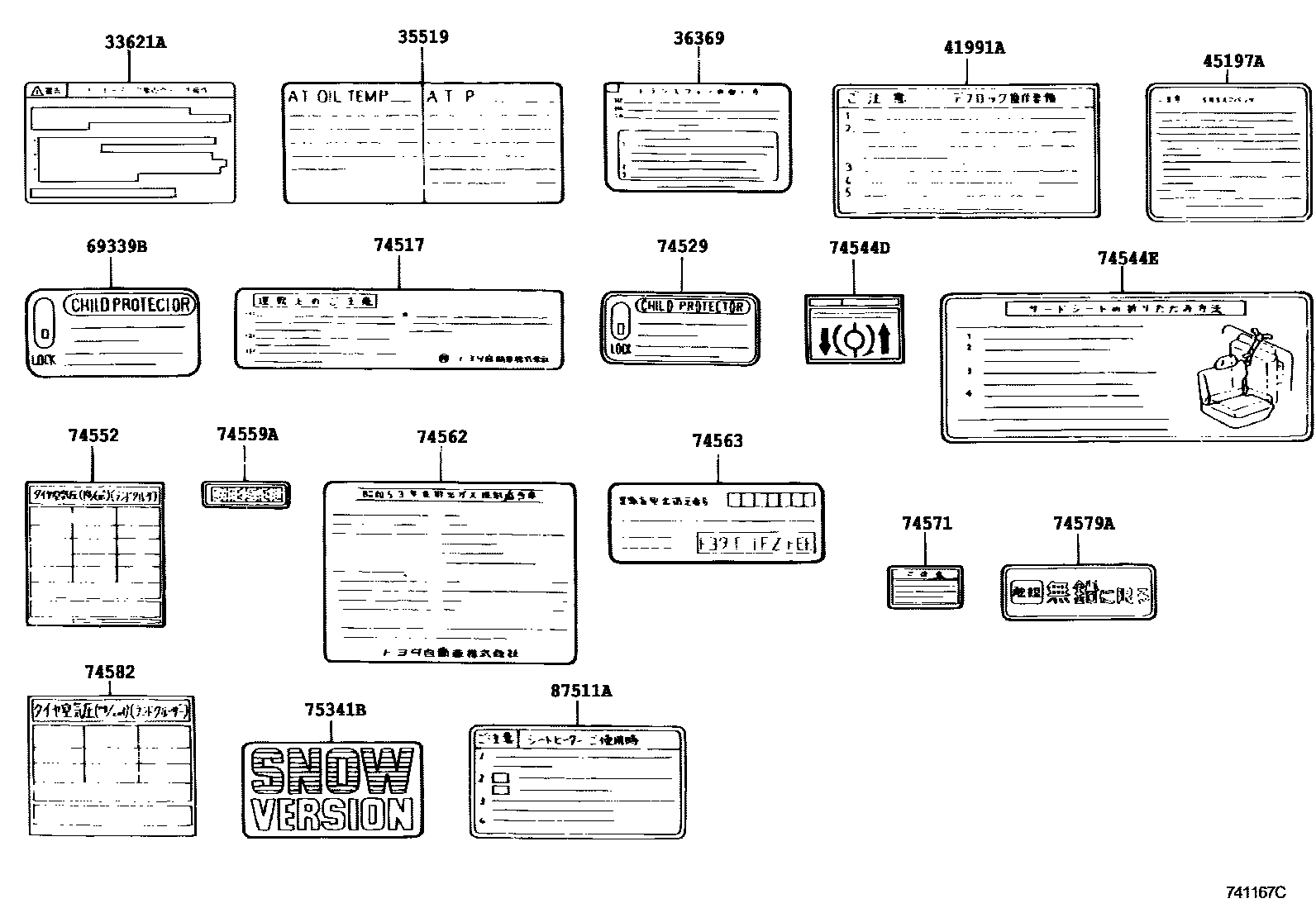

19 parts on this diagram · 2 diagrams in section
