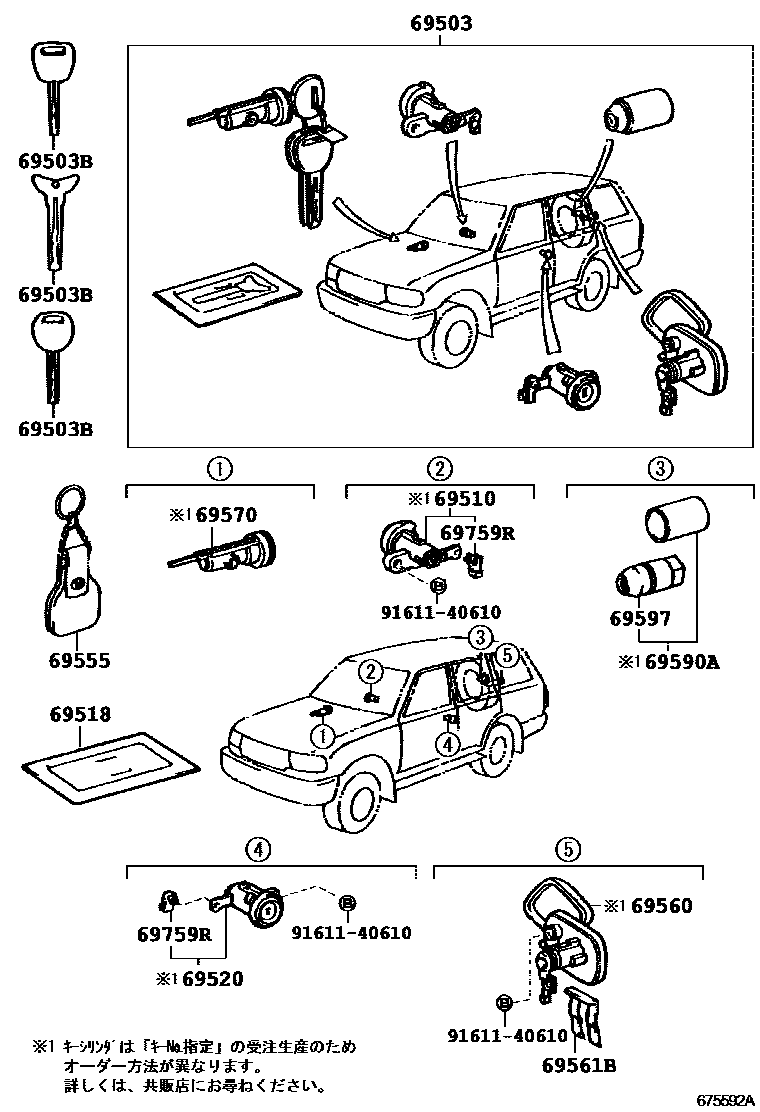

LOCK CYLINDER SET

0001 1 0002 1

69503CYLINDER SET, LOCK

main69005-60110iFJ80,FZJ80,HDJ81,HZJ81..LUB199001-199801

main69005-60140iFZJ80,HDJ81,HZJ81..SOB199001-199801

main69005-60200iFZJ80,HDJ81,HZJ81..VX199501-199801

main69005-60220iFZJ80,HDJ81..GX199608-199801

main69005-6A260iFZJ80,HDJ81,HZJ81..VX; FZJ80,HDJ81,HZJ81..VXL199501-199801

69503BKEY, CUT

main69515-50080iFJ80,HDJ81,HZJ81..LUB199001-199208

main69515-60020×3iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main69515-60030iFJ80,HDJ81,HZJ81..LUB; HZJ81..STD199001-199208

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-60060iFJ80,FZJ80,HDJ81,HZJ81199001-199801

69518CARD, SPARE KEY

main69518-60010iFJ80,FZJ80,HDJ81,HZJ81199001-199801

69520CYLINDER ASSY, FRONT DOOR LOCK, LH

main69520-60030iFJ80,FZJ80,HDJ81,HZJ81199001-199801

69555COVER, KEY

main69555-60010iFZJ80,HDJ81,HZJ81199501-199801

main69555-60020iFJ80,FZJ80,HDJ81,HZJ81199001-199501

main69555-60040iFZJ80,HDJ81,HZJ81..VXL199404-199407

69560CYLINDER ASSY, BACK DOOR LOCK

main69560-60020iFJ80,FZJ80,HDJ81,HZJ81..LUB199001-199801

main69560-60030iFZJ80,HDJ81,HZJ81..SOB199001-199801

69561BRETAINER, BACK DOOR LOCK CYLINDER

main69561-10040iFJ80,FZJ80,HDJ81,HZJ81..LUB199001-199801

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-60020iFJ80,FZJ80,HDJ81,HZJ81199001-199801

69590ACYLINDER ASSY, SPARE WHEEL LOCK

main69590-60040iHZJ81..LUB;HZJ81..STD;FJ80,FZJ80,HDJ81199001-199501

69597NUT, SPARE WHEEL LOCK

main69597-60010iHZJ81..LUB; HZJ81..STD199001-199306

main69597-60011iFZJ80,HDJ81,HZJ81..VX199501-199801

main69597-60050iFZJ80,HDJ81,HZJ81..VX; FZJ80,HDJ81,HZJ81..VXL199501-199801

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-24080iFZJ80,HDJ81,HZJ81..LUB199305-199501

main69759-24090iFJ80,HDJ81,HZJ81199001-199208

9161140610

main91611-40610

13 parts on this diagram · 2 diagrams in section
