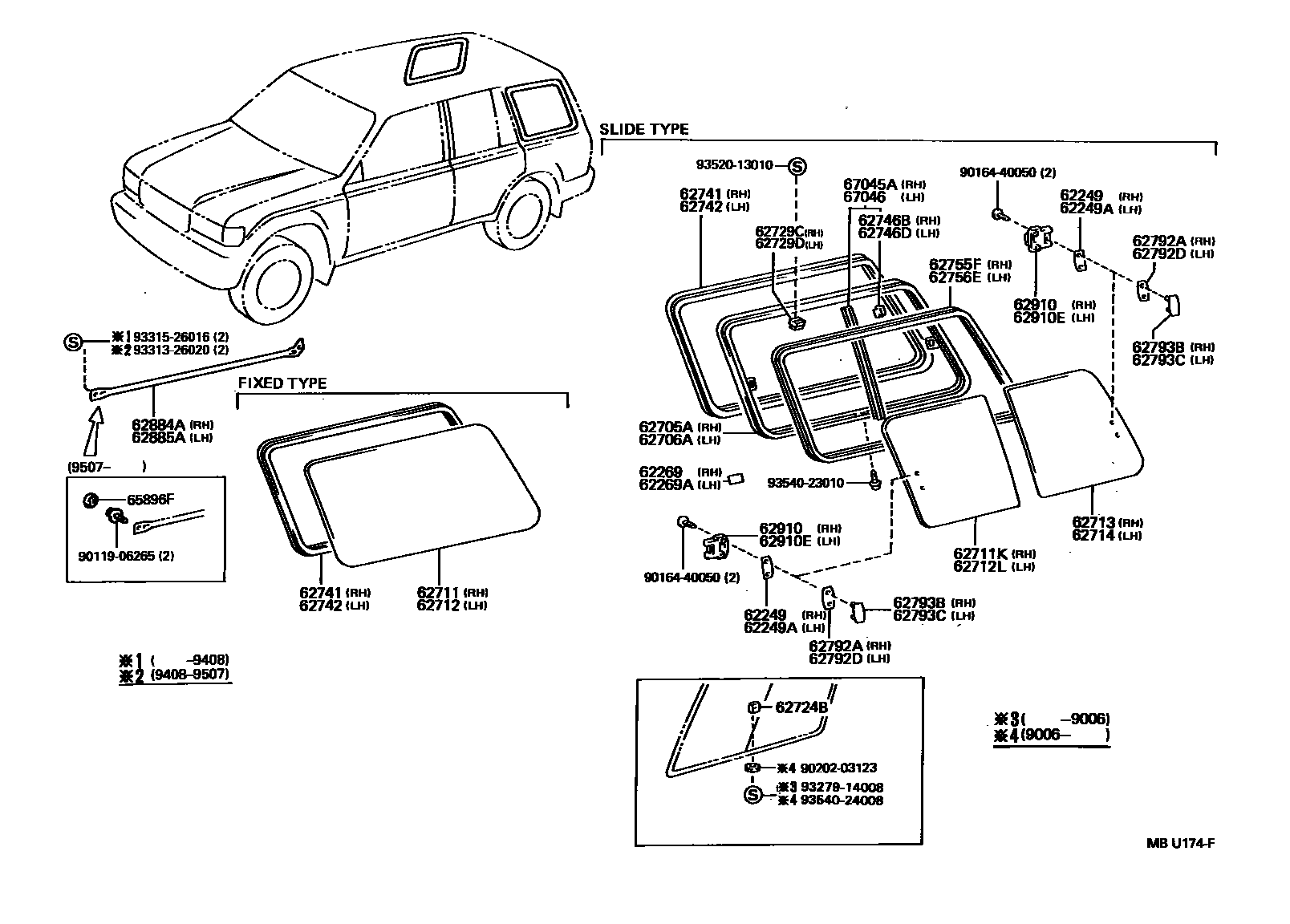

SIDE WINDOW
62249PLATE, SIDE WINDOW, RH
62249APLATE, SIDE WINDOW, LH
62269FILM, SIDE WINDOW FRAME, RH
62269AFILM, SIDE WINDOW FRAME, LH
62705AFRAME SUB-ASSY, QUARTER WINDOW, RH
62706AFRAME SUB-ASSY, QUARTER WINDOW, LH
62711GLASS, QUARTER WINDOW, RH
62711KGLASS, QUARTER WINDOW, FRONT RH
62712GLASS, QUARTER WINDOW, LH
62712LGLASS, QUARTER WINDOW, FRONT LH
62713GLASS, QUARTER WINDOW, REAR RH
62714GLASS, QUARTER WINDOW, REAR LH
62724BSTOP, SIDE WINDOW GLASS
62729CPAD, REAR WINDOW CENTER SASH, RH
62729DPAD, REAR WINDOW CENTER SASH, LH
62741WEATHERSTRIP, QUARTER WINDOW, RH
62742WEATHERSTRIP, QUARTER WINDOW, LH
62746BPACKING, QUARTER WINDOW, RH
62746DPACKING, QUARTER WINDOW, LH
62755FRUN, QUARTER WINDOW, RH
62756ERUN, QUARTER WINDOW, LH
62792APACKING, SIDE WINDOW LOCK, RH
62792DPACKING, SIDE WINDOW LOCK
62793BRETAINER, SIDE WINDOW LOCK, RH
62793CRETAINER, SIDE WINDOW LOCK, LH
62884AGUARD, QUARTER WINDOW, RH
LIGHT GRAY,TRIM1#
LIGHT SABLE,TRIM4#
LIGHT GRAY,TRIM1#
LIGHT GRAY,TRIM1#,4#
62885AGUARD, QUARTER WINDOW, LH
LIGHT GRAY,TRIM1#
LIGHT SABLE,TRIM4#
LIGHT GRAY,TRIM1#
LIGHT GRAY,TRIM1#,4#
62910LOCK ASSY, QUARTER OR SIDE WINDOW, RH
62910ELOCK ASSY, SIDE WINDOW
65896FCAP, COVER TOP SET BOLT
67045AFRAME SUB-ASSY, SIDE FRONT WINDOW, CENTER RH
67046FRAME SUB-ASSY, SIDE FRONT WINDOW, CENTER LH
9011906265
main90119-06265
9016440050
main90164-40050
9020203123
main90202-03123
9327914008
main93279-14008
9331326020
main93313-26020
9331526016
main93315-26016
9352013010
main93520-13010
9354023010
main93540-23010
9354024008
main93540-24008
41 parts on this diagram · 1 diagram in section
