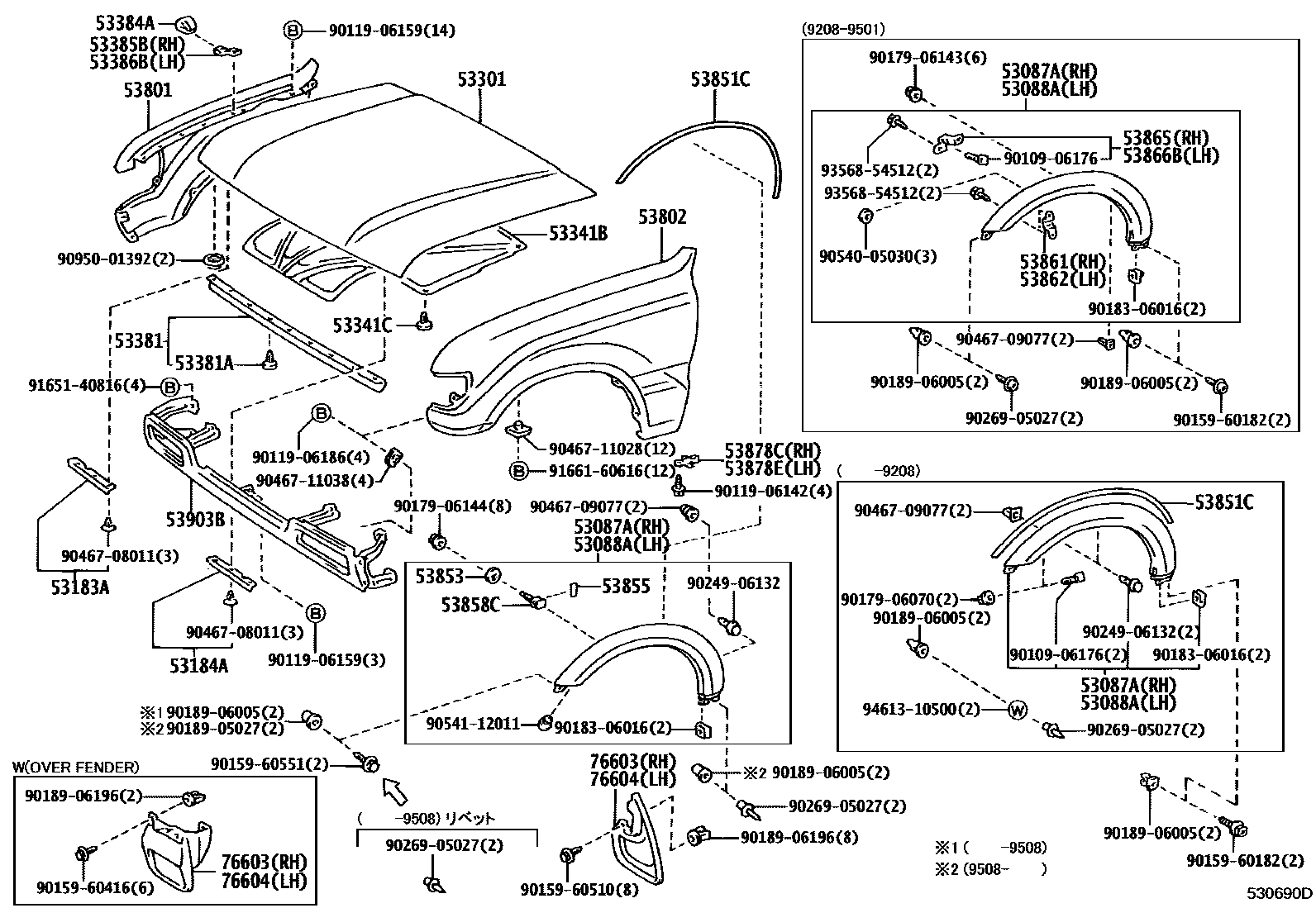

HOOD & FRONT FENDER

0001 1 0002 1L ����-��

53087AEXTENSION SUB-ASSY, FRONT WHEEL OPENING, RH

main53087-60901iFJ80,HDJ81199001-199208

main53087-60904iFZJ80,HDJ81,HZJ81..VX,VXL199208-199501

main53087-60906iFZJ80,HDJ81,HZJ81..LUB199501-199608

main75085-60020-D0iHDJ81..VXL199605-199607

main75085-60020-E0iHDJ81..VXL199605-199607

53088AEXTENSION SUB-ASSY, FRONT WHEEL OPENING, LH

main53088-60901iFJ80,HDJ81199001-199208

main53088-60904iFZJ80,HDJ81,HZJ81..VX,VXL199208-199501

main53088-60906iFZJ80,HDJ81199608-199801

main75086-60020-D0iHDJ81..VXL199605-199607

main75086-60020-E0iHDJ81..VXL199605-199607

53183ASEAL, HEADLAMP COVER, RH

main53183-60031iFJ80,HDJ81,HZJ81199108-199110

main53183-60050iFJ80,FZJ80,HDJ81,HZJ81199110-199801

53184ASEAL, HEADLAMP COVER, LH

main53184-60031iFJ80,HDJ81,HZJ81199108-199110

main53184-60050iFJ80,FZJ80,HDJ81,HZJ81199110-199801

53301HOOD SUB-ASSY

main53301-60070iFJ80,HDJ81,HZJ81199001-199108

main53301-60200iFZJ80,HDJ81,HZJ81..VXL199409-199412

main53301-60250iFZJ80,HDJ81,HZJ81199208-199801

53341BINSULATOR, HOOD

main53341-60020iFJ80,HDJ81,HZJ81199001-199201

main53341-60110iFJ80,FZJ80,HDJ81,HZJ81199201-199801

53341CCLIP(FOR HOOD INSULATOR)

main90467-09014×12iFJ80,FZJ80,HDJ81,HZJ81199001-199801

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-60010iFJ80,FZJ80,HDJ81,HZJ81199001-199801

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×9iFJ80,FZJ80,HDJ81,HZJ81199001-199407

53384ABUMPER, FENDER TO HOOD

main53384-60010×2iFJ80,FZJ80,HDJ81,HZJ81199001-199801

53385BBRACKET, FENDER TO HOOD BUMPER, RH

main53385-20020iFJ80,FZJ80,HDJ81,HZJ81199001-199801

53386BBRACKET, FENDER TO HOOD BUMPER, LH

main53386-20020iFJ80,FZJ80,HDJ81,HZJ81199001-199801

53801FENDER SUB-ASSY, FRONT RH

main53801-60062iFZJ80,HDJ81,HZJ81..LUB199501-199508

main53801-60063iFZJ80,HDJ81,HZJ81..LUB199508-199608

main53801-60110iHZJ81..GX; HZJ81..STD199001-199206

main53801-60111iFZJ80,HZJ81..GX199206-199501

main53801-60141iFZJ80,HZJ81..GX199501-199508

main53801-60142iHZJ81199608-199801

main53801-60210iFJ80,HDJ81199001-199208

main53801-60211iFZJ80,HDJ81,HZJ81..VX,VXL199208-199501

main53801-60540iFZJ80,HZJ81..GX199501-199508

main53801-60541iHZJ81199608-199801

main53801-60550iFZJ80,HDJ81,HZJ81..LUB199501-199508

main53801-60551iFZJ80,HDJ81,HZJ81..LUB199508-199608

main53801-60680iHZJ81199001-199206

main53801-60681iFZJ80,HZJ81..GX,STD199206-199501

main53801-60700iFJ80,HDJ81199001-199206

main53801-60701iFZJ80..VX199208-199501

main53801-60720iFJ80,HDJ81199001-199208

main53801-60721iFZJ80,HDJ81,HZJ81..VX,VXL199208-199501

main53801-60790iFJ80,HDJ81199001-199206

main53801-60791iFJ80,HDJ81199206-199208

main53801-60820iHDJ81..VXL199605-199607

53802FENDER SUB-ASSY, FRONT LH

main53802-60080iFJ80,HDJ81199001-199208

main53802-60100iHZJ81..GX; HZJ81..STD199001-199208

main53802-60460iFZJ80,HZJ81..GX,STD199208-199501

main53802-60470iHZJ81..STD199208-199305

main53802-60480iFZJ80..VX199208-199501

main53802-60490iFZJ80..VX199208-199501

main53802-60500iFZJ80,HDJ81,HZJ81..VX,VXL199208-199501

main53802-60600iHZJ81199001-199206

main53802-60601iHZJ81199206-199208

main53802-60610iFJ80,HDJ81199001-199206

main53802-60611iFJ80,HDJ81199206-199208

main53802-60620iFJ80,HDJ81199001-199208

main53802-60650iFJ80,HDJ81199001-199208

main53802-60660iFZJ80,HDJ81,HZJ81..VX,VXL199208-199501

main53802-60780iFZJ80,HZJ81..GX199501-199508

main53802-60781iHZJ81199608-199801

main53802-60790iFZJ80,HZJ81..GX199501-199508

main53802-60791iHZJ81199608-199801

main53802-60800iFZJ80,HDJ81,HZJ81..LUB199501-199508

main53802-60801iFZJ80,HDJ81199608-199801

main53802-60810iFZJ80,HDJ81,HZJ81..LUB199501-199508

main53802-60811iFZJ80,HDJ81,HZJ81..LUB199508-199608

main53802-6A060iHDJ81..VXL199605-199607

53851CPAD, FRONT WHEEL OPENING EXTENSION, NO.1

main53851-60020-01×2iFJ80,HDJ81199001-199208

BLACK,183

main53851-60020-02×2iFJ80,HDJ81..ATM; HDJ81..MTM199001-199208

MAROON,20R ,3H4; MAROON,3H4

main53851-60020-05×2iFJ80,HDJ81199001-199208

BEIGE,4K1

main53851-60020-08×2iFJ80,HDJ81199001-199208

WHITE,045

main53851-60060-A0×2iFZJ80,HDJ81,HZJ81..VX199208-199501

WHITE,045

main53851-60060-C0×2iFZJ80,HDJ81,HZJ81..VX; FZJ80,HDJ81,HZJ81..VXL199305-199501

BLACK,183 ,26P ,6M1; BLACK,183 ,6M1

main53851-60060-D0×2iFZJ80,HDJ81,HZJ81..LUB199305-199501

MAROON,3H4

main53851-60060-E0×2iFZJ80,HDJ81,HZJ81..VX,VXL199208-199501

BEIGE,4K1

main53851-60080-A0×2iFZJ80,HDJ81,HZJ81..VX199501-199506

WHITE,045

main53851-60080-C0×2iFZJ80,HDJ81,HZJ81..VX; FZJ80,HDJ81,HZJ81..VXL199501-199506

BLACK,1A6 ,2AB ,2AC ,6M1 ,8K0; BLACK,1A6 ,6M1 ,8K0

main53851-60080-D0×2iFZJ80,HDJ81,HZJ81..LUB199501-199506

RED,3H4

main53851-60080-E0×2iFZJ80,HDJ81,HZJ81..VX199501-199506

BEIGE,4K1

main53851-60090iFZJ80,HDJ81..GX; FZJ80,HDJ81..VX; FZJ80,HDJ81..VXL199608-199801

main53851-60100-A0iFZJ80,HDJ81,HZJ81..VX199506-199608

main53851-60100-C0iFZJ80,HDJ81,HZJ81..VX; FZJ80,HDJ81,HZJ81..VXL199506-199608

main53851-60100-D0iFZJ80,HDJ81199608-199801

main53851-60121-B0iHDJ81..VXL199605-199607

main53851-60121-E1iHDJ81..VXL199605-199607

main53851-60140-A0iFZJ80,HDJ81..GX,VX199608-199801

main53851-60140-B0iFZJ80,HDJ81..GX,VX; FZJ80,HDJ81..VXL199608-199801

main53851-60140-E0iFZJ80,HDJ81..GX; FZJ80,HDJ81..VX199608-199801

main53852-60030iFZJ80,HDJ81..GX; FZJ80,HDJ81..VX; FZJ80,HDJ81..VXL199608-199801

main53852-60040-A0iFZJ80,HDJ81,HZJ81..VX199506-199608

main53852-60040-C0iFZJ80,HDJ81199608-199801

main53852-60040-D0iFZJ80,HDJ81,HZJ81..LUB199506-199608

main53852-60051-B0iHDJ81..VXL199605-199607

main53852-60051-E1iHDJ81..VXL199605-199607

main53852-60060-A0iFZJ80,HDJ81..GX,VX199608-199801

main53852-60060-B0iFZJ80,HDJ81..GX,VX; FZJ80,HDJ81..VXL199608-199801

main53852-60060-E0iFZJ80,HDJ81..GX; FZJ80,HDJ81..VX199608-199801

53853PAD, FRONT WHEEL OPENING EXTENSION, NO.3

main53853-60020×8iFZJ80,HDJ81,HZJ81..LUB199506-199608

main90540-05030×8iFZJ80,HDJ81,HZJ81..LUB199501-199506

53855PAD, FRONT WHEEL OPENING EXTENSION, NO.3

main53855-60010×6iFZJ80,HDJ81,HZJ81..LUB199508-199608

53858CBOLT, WHEEL OPENING

main53858-60020×8iFZJ80,HDJ81,HZJ81..LUB199501-199506

main53858-60030×2iHDJ81..VXL199605-199607

main53858-60040×6iHDJ81..VXL199605-199607

main53858-60050×8iFZJ80,HDJ81,HZJ81..LUB199506-199608

53861BRACKET, FRONT WHEEL OPENING, NO.1

main53861-60020iFZJ80,HDJ81,HZJ81..VX,VXL199208-199501

53862BRACKET, FRONT WHEEL OPENING, NO.2

main53862-60010iFZJ80,HDJ81,HZJ81..VX,VXL199208-199501

53865BRACKET, FRONT WHEEL OPENING, NO.3

main53865-60010iFZJ80,HDJ81,HZJ81..VX,VXL199208-199501

53866BBRACKET, FRONT WHEEL OPENING, NO.4

main53866-60020iFZJ80,HDJ81,HZJ81..VX,VXL199208-199501

53878CSPACER, FRONT FENDER

main53878-60010iFJ80,FZJ80,HDJ81,HZJ81199001-199801

53878ESPACER, FRONT FENDER

main53878-60010iFJ80,FZJ80,HDJ81,HZJ81199001-199801

53903BPANEL SUB-ASSY, FRONT END

main53903-60030iFZJ80,HDJ81,HZJ81199501-199801

main53903-60050iFJ80,FZJ80,HDJ81,HZJ81199001-199501

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76603-60010iFJ80,HDJ81199001-199208

main76603-60011iFZJ80,HDJ81,HZJ81..VX,VXL199208-199608

main76603-60030iFZJ80,HZJ81..GX,STD199001-199608

main76603-60050iFZJ80,HDJ81,HZJ81..VXL199409-199412

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76604-60010iFJ80,HDJ81199001-199208

main76604-60011iFZJ80,HDJ81199608-199801

main76604-60030iHZJ81199608-199801

main76604-60050iFZJ80,HDJ81,HZJ81..VXL199409-199412

9010906176

main90109-06176

9011906142

main90119-06142

9011906159

main90119-06159

9011906186

main90119-06186

9015960182

main90159-60182

9015960416

main90159-60416

9015960510

main90159-60510

9015960551

main90159-60551

9017906070

main90179-06070

9017906143

main90179-06143

9017906144

main90179-06144

9018306016

main90183-06016

9018905027

main90189-05027

9018906005

main90189-06005

9018906196

main90189-06196

9024906132

main90249-06132

9026905027

main90269-05027

9046708011

main90467-08011

9046709077

main90467-09077

9046711028

main90467-11028

9046711038

main90467-11038

9054005030

main90540-05030

9054112011

main90541-12011

9095001392

main90950-01392

9165140816

main91651-40816

9166160616

main91661-60616

9356854512

main93568-54512

9461310500

main94613-10500

55 parts on this diagram · 2 diagrams in section
