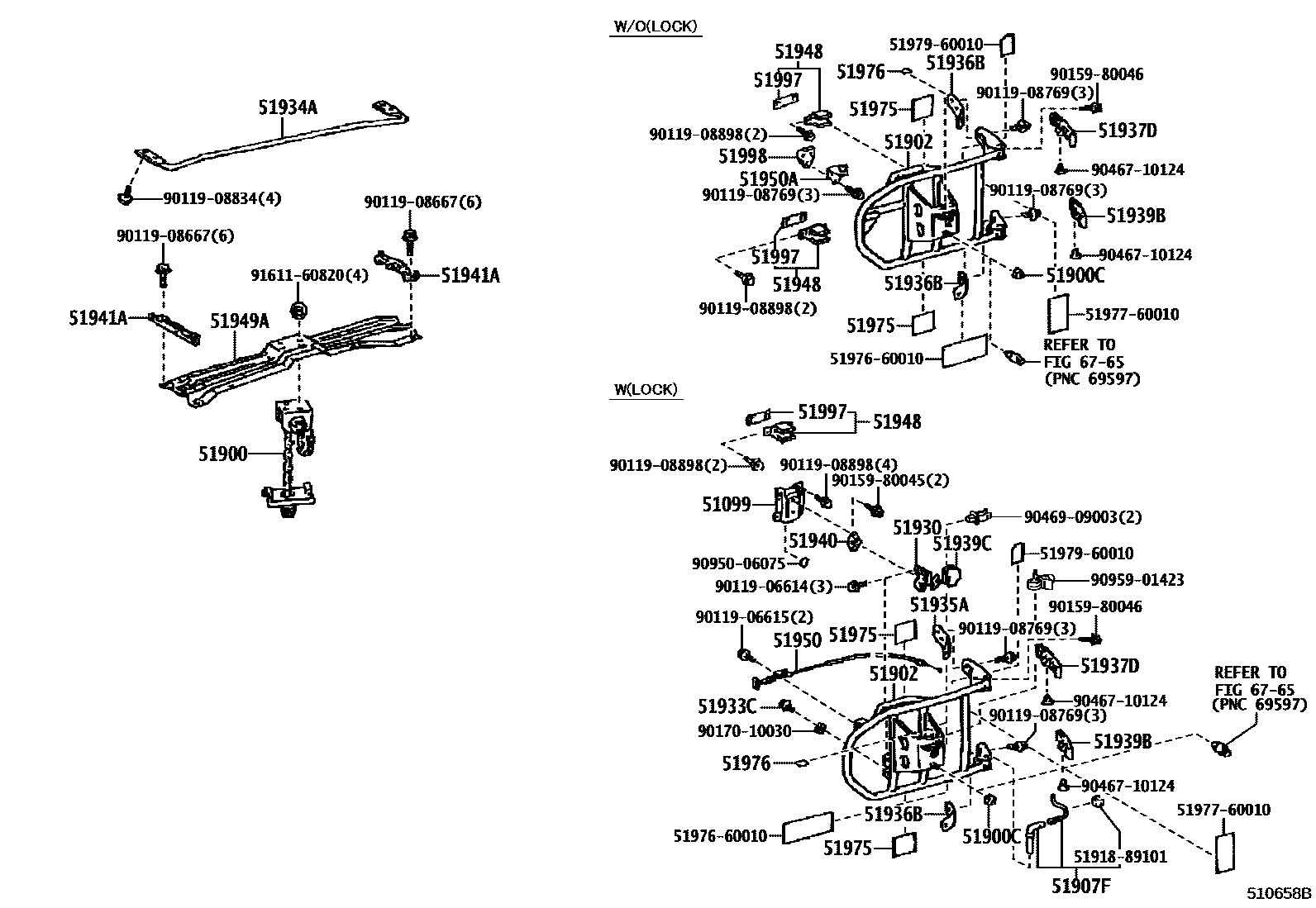

SPARE WHEEL CARRIER

51099PLATE SUB-ASSY, SPARE

main51099-60010iFJ80,HDJ81,HZJ81..LUB199001-199205

main51099-60011iFJ80,FZJ80,HDJ81,HZJ81..LUB199205-199801

51900CARRIER ASSY, SPARE WHEEL

main51900-60120iFZJ80,HDJ81,HZJ81..VX; FZJ80,HDJ81,HZJ81..VXL199208-199501

main51900-60140iFJ80,FZJ80,HDJ81,HZJ81..GX,STD,VX199001-199501

main51900-60170iFZJ80,HDJ81,HZJ81199501-199504

main51900-60171iFZJ80,HDJ81,HZJ81199504-199801

51900CNUT, SPARE WHEEL, HUB

main90942-01020×2iFZJ80..GX;HZJ81..LUB..GX199107-199501

main90942-01077×2iFZJ80,HDJ81,HZJ81..VX; FZJ80,HDJ81,HZJ81..VXL199501-199801

main90942-01081×2iFZJ80,HDJ81,HZJ81..VX; FZJ80,HDJ81,HZJ81..VXL199208-199501

main90942-01082×3iFJ80,HDJ81,HZJ81..STD,VX; HZJ81..GX; HZJ81..STD199001-199107

51902CARRIER SUB-ASSY, SPARE WHEEL

main51903-60080iFJ80,HDJ81,HZJ81..LUB199001-199109

main51903-60081iFJ80,HDJ81,HZJ81..LUB199109-199208

main51903-60082iFZJ80,HDJ81,HZJ81..LUB199208-199608

main51903-60083iFZJ80,HDJ81..LUB199608-199801

main51903-60090iHZJ81..STD199001-199109

main51903-60091iFZJ80..GX;HZJ81..STD199109-199501

main51903-60092iFZJ80,HDJ81..GX199608-199801

51907FSTOPPER SUB-ASSY, SPARE WHEEL CARRIER

main51907-60060iFJ80,FZJ80,HDJ81,HZJ81..LUB199001-199801

51930LOCK ASSY, SPARE WHEEL CARRIER

main51930-89101iFJ80,FZJ80,HDJ81,HZJ81..LUB199001-199801

51933CSTOPPER, SPARE WHEEL

main51933-60070iFJ80,FZJ80,HDJ81,HZJ81..LUB199202-199801

main51933-89101iFJ80,HDJ81,HZJ81..LUB199001-199202

51934ASTOPPER, SPARE WHEEL, NO.2

main51934-60060iFJ80,FZJ80,HDJ81,HZJ81199107-199801

51935ACUSHION, SPARE WHEEL CARRIER HINGE, UPPER

main51935-60050iHZJ81..LUB;HZJ81..STD;FJ80,FZJ80,HDJ81199001-199501

51936BCUSHION, SPARE WHEEL CARRIER HINGE, LOWER

main51936-60060iHZJ81..LUB;HZJ81..STD;FJ80,FZJ80,HDJ81199001-199501

51937DCOVER, SPARE WHEEL CARRIER HINGE, UPPER

main51937-60030iHZJ81..LUB;HZJ81..STD;FJ80,FZJ80,HDJ81199001-199501

51939BCOVER, SPARE WHEEL CARRIER LOCK

main51939-60020iHZJ81..LUB;HZJ81..STD;FJ80,FZJ80,HDJ81199001-199501

51939CCOVER, SPARE WHEEL CARRIER HINGE

main51939-89102iFJ80,FZJ80,HDJ81,HZJ81..LUB199001-199801

51940STRIKER ASSY, SPARE WHEEL CARRIER LOCK

main51940-89101iFJ80,FZJ80,HDJ81,HZJ81..LUB199001-199801

51941ABRACKET, SPARE WHEEL CARRIER

main51943-60040iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main51944-60020iFJ80,FZJ80,HDJ81,HZJ81199001-199801

51948STOPPER, SPARE WHEEL CARRIER AUXILIARY

main51905-60010×2iFZJ80..GX;HZJ81..STD199001-199501

51949ACROSSMEMBER, SPARE WHEEL CARRIER

main51949-60010iFJ80,FZJ80,HDJ81,HZJ81199001-199801

51950CABLE ASSY, SPARE WHEEL CARRIER LOCK CONTROL

main51950-60020iFJ80,HDJ81,HZJ81..LUB199001-199109

main51950-60030iFJ80,FZJ80,HDJ81,HZJ81..LUB199109-199801

51950AROLLER ASSY, SPARE WHEEL CARRIER GUIDE

main51950-60010iFZJ80..GX;HZJ81..STD199001-199501

51975FILM, SPARE WHEEL CARRIER

main51975-60010iFJ80,HDJ81,HZJ81..LUB; HZJ81..STD199001-199104

51976FILM, SPARE WHEEL CARRIER, NO.2

main51976-60020iFZJ80,HDJ81199608-199801

51997PAD, SPARE WHEEL STOPPER

main51997-60020iHZJ81..LUB;HZJ81..STD;FJ80,FZJ80,HDJ81199001-199501

51998PAD, SPARE WHEEL BRACKET

main51998-60010iFZJ80..GX;HZJ81..STD199001-199501

6765LOCK CYLINDER SET

→ Go to FIG 67-65

5191889101BRACKET, SPARE WHEEL STOPPER

main51918-89101

5197660010FILM, SPARE WHEEL CARRIER, NO.2

main51976-60010

5197760010PROTECTOR, REAR TRANSPORT HOOK EDGE

main51977-60010

5197960010

main51979-60010

9011906614

main90119-06614

9011906615

main90119-06615

9011908667

main90119-08667

9011908769

main90119-08769

9011908834

main90119-08834

9011908898

main90119-08898

9015980045

main90159-80045

9015980046

main90159-80046

9017010030

main90170-10030

9046710124

main90467-10124

9046909003

main90469-09003

9095006075

main90950-06075

9095901423

main90959-01423

9161160820

main91611-60820

42 parts on this diagram · 1 diagram in section
