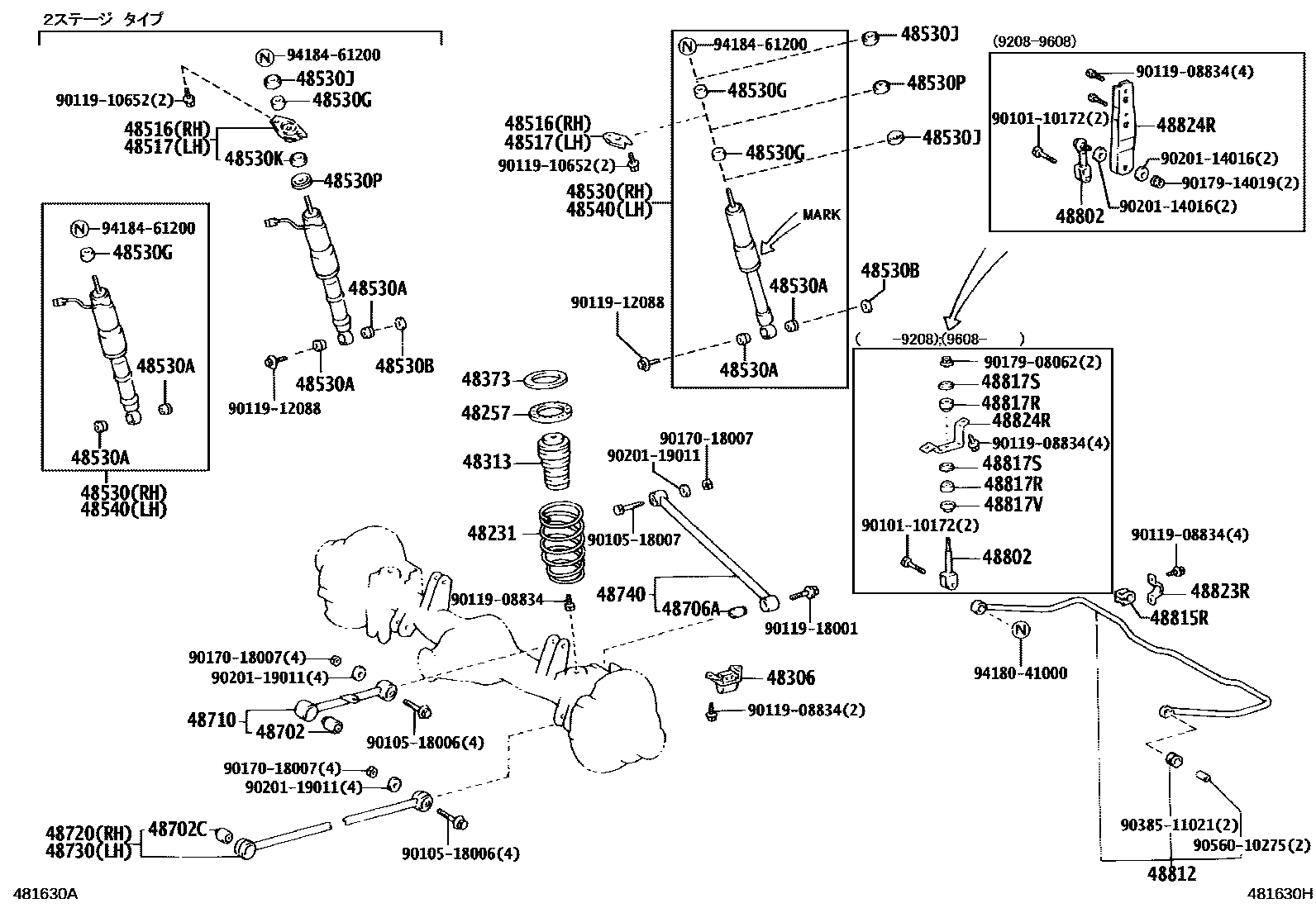

REAR SPRING & SHOCK ABSORBER
48231SPRING, COIL, REAR
48257INSULATOR, REAR COIL SPRING
48306BUMPER SUB-ASSY, REAR SPRING
48313SPRING, HOLLOW(FOR REAR SUSPENSION)
48373SPACER, REAR SPRING
48516BRACKET, REAR SHOCK ABSORBER, UPPER RH
48517BRACKET, REAR SHOCK ABSORBER, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
48530ABUSH(FOR REAR SHOCK ABSORBER)
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
48530JRETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)
48530KCUSHION, REAR SHOCK ABSORBER, NO.2
48530PRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)
48540ABSORBER ASSY, SHOCK, REAR LH
48702BUSH SUB-ASSY, UPPER CONTROL ARM
48702CBUSH SUB-ASSY, LOWER CONTROL ARM
48706ABUSH SUB-ASSY, REAR LATERAL CONTROL ROD
48710ARM ASSY, UPPER CONTROL
48720ARM ASSY, LOWER CONTROL, RH
48730ARM ASSY, LOWER CONTROL, LH
48740ROD ASSY, REAR LATERAL CONTROL
48802LINK SUB-ASSY, STABILIZER
48812BAR, STABILIZER, REAR
48815RBUSH, STABILIZER(FOR REAR)
48817RCUSHION, STABILIZER(FOR REAR)
48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
48817VRETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR)
48823RCOVER, STABILIZER LINK(FOR REAR)
48824RBRACKET, STABILIZER(FOR REAR)
9010110172
main90101-10172
9010518006
main90105-18006
9010518007
main90105-18007
9011908834
main90119-08834
9011910652
main90119-10652
9011912088
main90119-12088
9011918001
main90119-18001
9017018007
main90170-18007
9017908062
main90179-08062
9017914019
main90179-14019
9020114016
main90201-14016
9020119011
main90201-19011
9038511021
main90385-11021
9056010275
main90560-10275
9418041000
main94180-41000
9418461200
main94184-61200
46 parts on this diagram · 1 diagram in section
