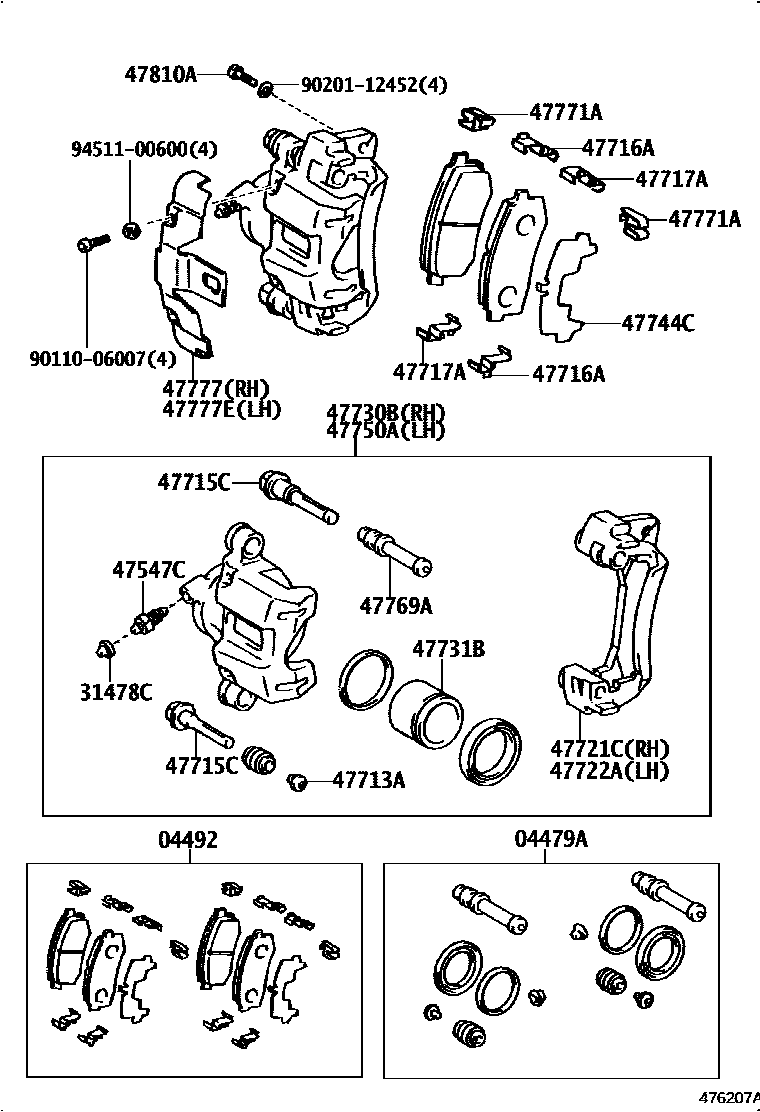

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-60030iFJ80,HDJ81199001-199208

04492PAD KIT, DISC BRAKE, REAR

main04492-60010iFJ80,HDJ81199001-199009

main04492-60020iFJ80,HDJ81199009-199208

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iFJ80,HDJ81199001-199208

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-12030×2iFJ80,HDJ81199001-199208

47713APLUG, HOLE(FOR REAR DISC BRAKE CYLINDER)

main90950-01301×2iFJ80,HDJ81199001-199208

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-22010×4iFJ80,HDJ81199001-199208

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-22010×4iFJ80,HDJ81199001-199208

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-22010×4iFJ80,HDJ81199001-199208

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-60010iFJ80,HDJ81199001-199208

main47721-60020iFZJ80,HDJ81,HZJ81..GX,VX,VXL199208-199801

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47722-60010iFJ80,HDJ81199001-199208

main47722-60020iFZJ80,HDJ81,HZJ81..GX,VX,VXL199208-199801

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-60040iFJ80,HDJ81199001-199208

main47730-60070iFZJ80,HDJ81,HZJ81..GX,VX,VXL199208-199801

47731BPISTON, REAR DISC BRAKE

main47731-60020×2iFJ80,HDJ81199001-199208

47744CSHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)

main47744-60010×2iFJ80,HDJ81199001-199208

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-60040iFJ80,HDJ81199001-199208

main47750-60070iFZJ80,HDJ81,HZJ81..GX,VX,VXL199208-199801

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-22010×2iFJ80,HDJ81199001-199208

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-22030×4iFJ80,HDJ81199001-199208

47777PROTECTOR, DUST BOOT, RH

main47777-60010iFJ80,HDJ81199001-199208

47777EPROTECTOR, DUST BOOT, LH

main47777-60010iFJ80,HDJ81199001-199208

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90101-12167×4iFJ80,HDJ81199001-199208

9011006007

main90110-06007

9020112452

main90201-12452

9451100600

main94511-00600

22 parts on this diagram · 2 diagrams in section
