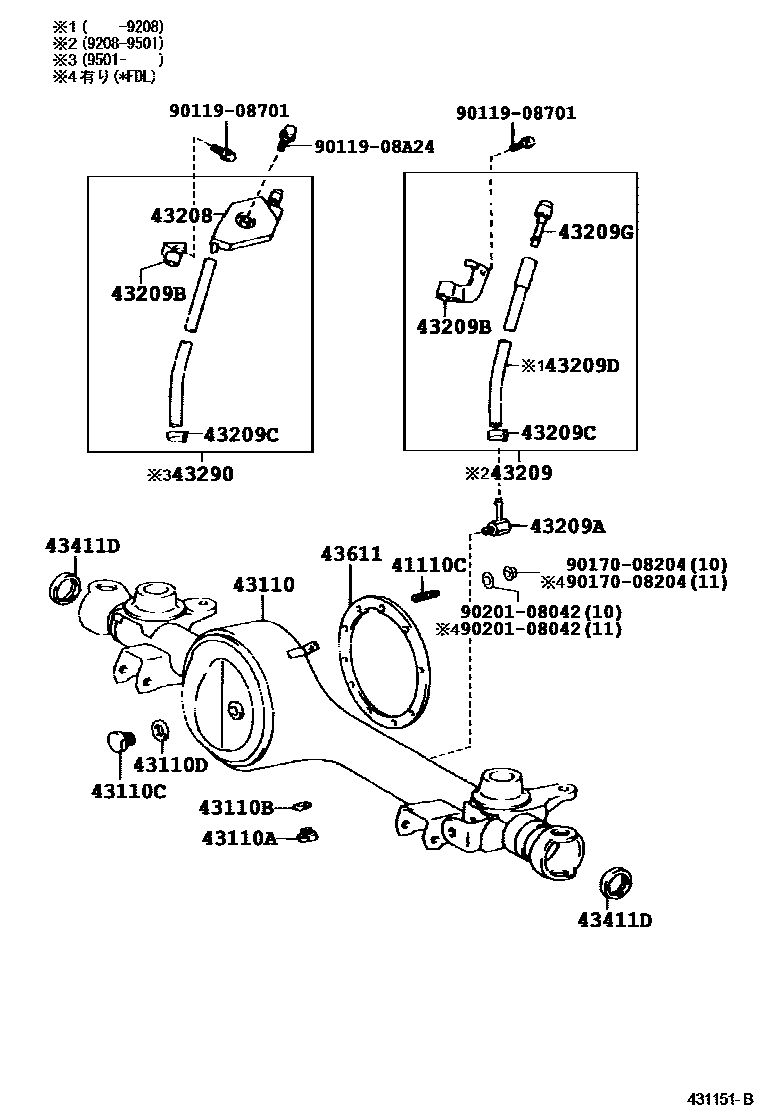

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1��(���������� ���)

41110CBOLT, STUD (FOR FRONT DIFFERENTIAL CARRIER)

main90116-08233×2iFJ80,FZJ80,HDJ81,HZJ81199001-199801

main90116-08329×7iFJ80,HDJ81; HZJ81199001-199208

main90116-08330×2iFZJ80,HDJ81,HZJ81..LUB; HZJ81..GX199404-199501

43110HOUSING ASSY, FRONT AXLE

main43110-60270iHDJ81,HZJ81..LUB..MTM199201-199208

main43110-60290iFJ80,HDJ81; HZJ81199001-199208

main43110-60370iFZJ80..GX; HZJ81..ATM..GX199402-199501

main43110-60390iFZJ80,HDJ81,HZJ81..LUB; HZJ81..GX199404-199501

43110APLUG SUB-ASSY, DRAIN

main90341-18040iFJ80,FZJ80,HDJ81,HZJ81199001-199801

43110BGASKET, DRAIN

main12157-10010iFJ80,FZJ80,HDJ81,HZJ81199001-199801

43110CPLUG (FOR FRONT AXLE HOUSING)

main90341-18006iFJ80,FZJ80,HDJ81,HZJ81199001-199801

43110DGASKET (FOR FRONT AXLE HOUSING PLUG)

main12157-10010iFJ80,FZJ80,HDJ81,HZJ81199001-199801

43208TANK SUB-ASSY, FRONT AXLE BREATHER

main43208-60010iFZJ80,HDJ81,HZJ81199501-199801

43209HOSE SUB-ASSY, FRONT AXLE BREATHER

main43209-60160iFZJ80,HDJ81,HZJ81199208-199501

main43209-60170iHZJ81..GX;HDJ81..MTM199305-199501

43209AUNION (FOR FRONT AXLE BREATHER HOSE)

main90404-10019iFJ80,HDJ81,HZJ81199001-199208

main90904-04001iFZJ80,HDJ81,HZJ81199208-199801

43209BCLAMP (FOR FRONT AXLE BREATHER HOSE)

main90461-10387iFJ80,HDJ81,HZJ81199001-199208

main90461-12404iFZJ80,HDJ81,HZJ81199208-199801

43209CCLIP, HOSE (FOR FRONT AXLE BREATHER HOSE)

main96132-30600iFJ80,FZJ80,HDJ81,HZJ81199001-199801

43209DHOSE, NO.1 (FOR FRONT AXLE BREATHER)

main90445-12248iFJ80,HDJ81,HZJ81199002-199208

main90445-12249iFJ80,HDJ81,HZJ81199002-199208

main95333-06040iFJ80,HDJ81,HZJ81199001-199002

43209GPLUG, BREATHER (FOR FRONT AXLE)

main90930-03097iFJ80,FZJ80,HDJ81,HZJ81199001-199501

43290HOSE ASSY, FRONT AXLE BREATHER

main43290-60010iFZJ80,HDJ81,HZJ81199501-199801

main43290-60020iHZJ81..GX199501-199801

43411DSEAL, TYPE T OIL (FOR FRONT DRIVE SHAFT)

main90310-35005×2iFJ80,FZJ80,HDJ81,HZJ81199001-199409

main90310-35010×2iFZJ80,HDJ81,HZJ81199409-199801

43611GASKET, FRONT AXLE DIFFERENTIAL CARRIER

main42181-60040iHDJ81,HZJ81..LUB..MTM199201-199208

main42181-60050iFJ80,HDJ81; HZJ81199001-199208

main42181-60080iHZJ81..LUB..GX;HZJ81..SOB..MTM..GX; HZJ81..STD,VX;FZJ80,HDJ81..LUB199208-199404

main42181-60090iHDJ81..MTM; HZJ81..MTM199402-199404

9011908701

main90119-08701

9011908A24

main90119-08A24

9017008204

main90170-08204

9020108042

main90201-08042

20 parts on this diagram · 3 diagrams in section
