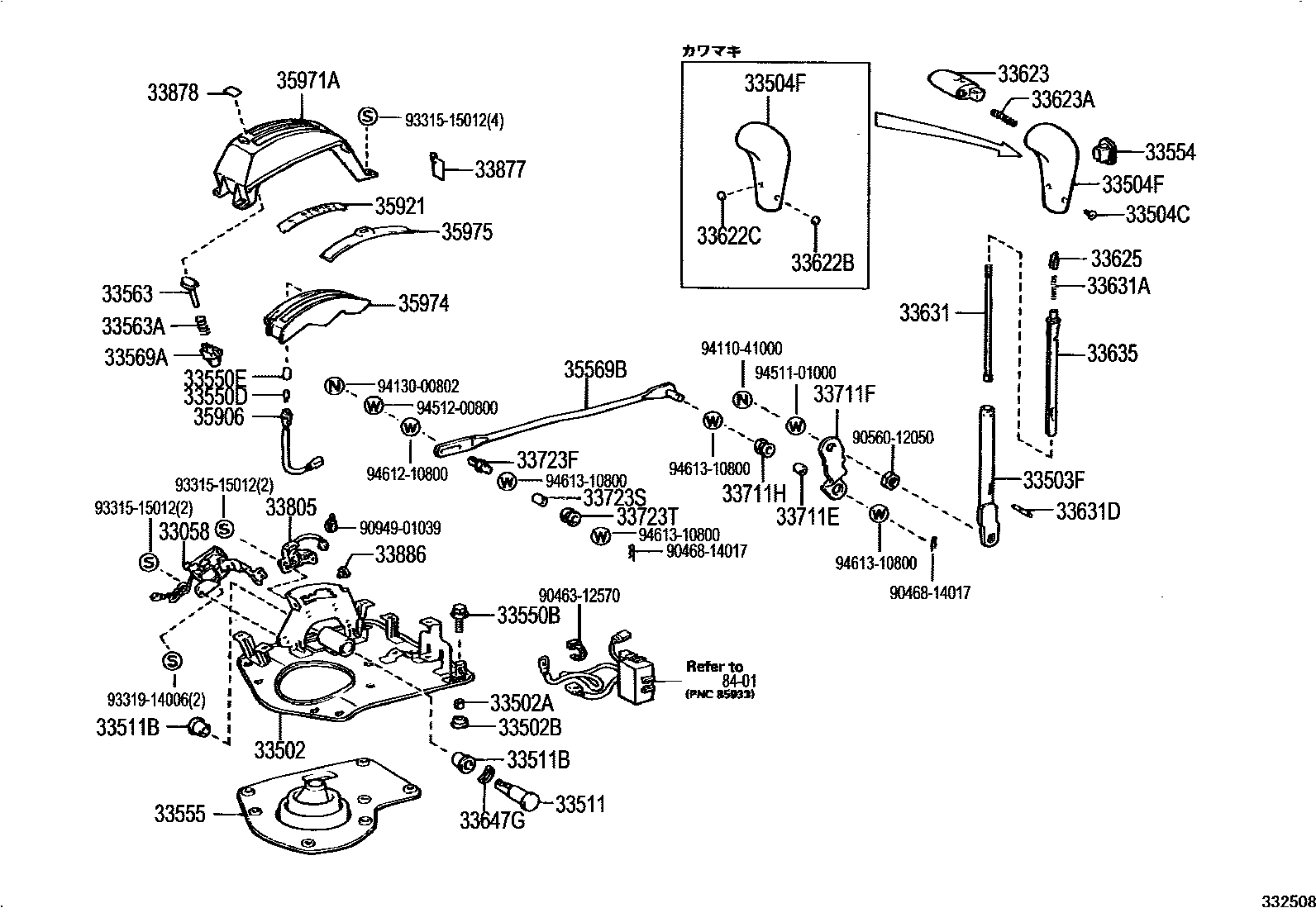

SHIFT LEVER & RETAINER

0001 1 0002 1

33058BRACKET SUB-ASSY, SHIFT LOCK SOLENOID

main33058-60010iFJ80,HDJ81,HZJ81..ATM199001-199208

main33058-60050iFZJ80,HDJ81,HZJ81..ATM199208-199801

33502PLATE SUB-ASSY, SHIFT LEVER

main33502-60080iFJ80,HDJ81,HZJ81..ATM199001-199208

main33502-60160iFZJ80,HDJ81,HZJ81..ATM199208-199801

33502ACOLLAR (FOR FLOOR SHIFT SETTING)

main90387-06065×9iFJ80,HDJ81,HZJ81..ATM199001-199208

33502BGROMMET (FOR SHIFT LEVER PLATE)

main90480-13018×2iFZJ80,HDJ81,HZJ81..ATM199208-199801

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-60010iFZJ80,HDJ81,HZJ81..ATM199208-199303

main33055-60011iFZJ80,HDJ81,HZJ81..ATM199303-199801

main33503-60030iFJ80,HDJ81,HZJ81..ATM199001-199208

33504CSCREW (FOR SHIFT LEVER KNOB SETTING)

main90159-40109×2iFJ80,HDJ81,HZJ81..ATM199001-199208

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-60080-01iHZJ81..STD199001-199208

BLACK,TRIM1#

main33504-60100-01iHDJ81,HZJ81..LUB..MTM199001-199208

BLACK,TRIM1#,4#

main33504-60120-C0iHDJ81,HZJ81..LUB..MTM; HZJ81..STD199208-199305

BLACK,TRIM1#; BLACK,TRIM1#,4#

main33504-60121-C0iFZJ80,HDJ81,HZJ81..MTM199305-199801

BLACK,TRIM1#,4#

main33542-20100-C0iFZJ80,HDJ81,HZJ81..ATM..(GX,VX)199208-199801

BLACK,TRIM1#,4#

main33542-20140-C0iFZJ80,HDJ81,HZJ81..VXL199208-199801

BLACK,TRIM1#,4#

main33542-32080-01iFJ80,HDJ81,HZJ81..ATM199001-199208

BLACK,TRIM1#,4#

main33542-60070-01iFJ80,HDJ81..ATM199001-199208

33511SHAFT, CONTROL (FOR FLOOR SHIFT)

main33511-60080iFJ80,HDJ81,HZJ81..ATM199001-199002

main33511-60081iFJ80,HDJ81,HZJ81..ATM199002-199208

main33511-60082iFZJ80,HDJ81,HZJ81..ATM199303-199801

33511BBUSH (FOR CONTROL SHAFT)

main90386-15003×2iFJ80,HDJ81,HZJ81..ATM199001-199208

33550BBOLT, W/WASHER (FOR FLOOR SHIFT)

main90119-06088×6iFJ80,HDJ81,HZJ81..ATM199001-199208

33550DBULB, POSITION INDICATOR LAMP

main90981-11018iFZJ80,HDJ81,HZJ81..ATM199208-199801

33550ECAP, POSITION INDICATOR LAMP

main90339-04014iFZJ80,HDJ81,HZJ81..ATM199208-199801

33554CAP, SHIFT LEVER

main33554-60021iFZJ80,HDJ81,HZJ81..MTM199208-199801

main33554-60040iFJ80,HDJ81,HZJ81..ATM199001-199208

33555BOOT, SHIFT LEVER

main33555-60050iFZJ80,HDJ81,HZJ81..MTM199208-199801

main33555-60070iFJ80,HDJ81,HZJ81..ATM199001-199011

main33555-60071iFZJ80,HDJ81,HZJ81..ATM199208-199801

33563BUTTON, SHIFT LOCK RELEASE

main33563-60010-01iFJ80,HDJ81,HZJ81..ATM199001-199208

BLACK,TRIM1#,4#

main33563-60010-02iFJ80,HDJ81,HZJ81..ATM199001-199208

MAROON,TRIM1#,4#

main33563-60010-C0iFZJ80,HDJ81,HZJ81..ATM199608-199801

BLACK,TRIM1#,4#

33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)

main90501-06051iFJ80,HDJ81,HZJ81..ATM199001-199208

33569AGUIDE, SHIFT LOCK RELEASE BUTTON

main33569-60010iFJ80,HDJ81,HZJ81..ATM199001-199208

33622BPLUG, SHIFT LEVER KNOB

main33622-60010iFJ80,HDJ81..ATM199001-199208

33622CPLUG, SHIFT LEVER KNOB, NO.2

main33622-60020iFJ80,HDJ81..ATM199001-199208

33623BUTTON, SHIFT LEVER KNOB

main33623-20060-C0iFZJ80,HDJ81,HZJ81..ATM199208-199801

BLACK,TRIM1#,4#

main33623-32050-01iFJ80,HDJ81,HZJ81..ATM199001-199208

BLACK,TRIM1#,4#

33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)

main90501-07009iFJ80,HDJ81,HZJ81..ATM199001-199208

33625SLEEVE, SHIFT LEVER KNOB

main33625-32010iFJ80,HDJ81,HZJ81..ATM199001-199208

33631ROD, DETENT

main33631-30060iFJ80,HDJ81,HZJ81..ATM199001-199208

main33631-60050iFZJ80,HDJ81,HZJ81..ATM199208-199801

33631ASPRING, COMPRESSION (FOR DETENT ROD)

main90501-07074iFJ80,HDJ81,HZJ81..ATM199001-199208

33631DPIN, GROOVED (FOR DETENT ROD)

main90256-04003iFJ80,HDJ81,HZJ81..ATM199001-199208

33635GUIDE, WIRE (FOR SHIFT LEVER)

main33635-60010iFJ80,HDJ81,HZJ81..ATM199001-199208

main33635-60030iFZJ80,HDJ81,HZJ81..ATM199208-199801

33647GWASHER, WAVE (FOR CONTROL LINK SHAFT)

main90206-17001iFJ80,HDJ81,HZJ81..ATM199002-199208

33711EBUSH (FOR CONTROL SHAFT LEVER)

main90389-08005iFZJ80,HDJ81,HZJ81..ATM199208-199801

33711FLEVER, CONTROL SHAFT (FOR FLOOR SHIFT)

main33711-60030iFJ80,HDJ81,HZJ81..ATM199001-199208

33711HGROMMET (FOR CONTROL SHAFT LEVER)

main90480-17177iFJ80,HDJ81,HZJ81..ATM199001-199208

33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)

main33723-22010iFJ80,HDJ81,HZJ81..ATM199001-199208

33723SBUSH (FOR CONNECTING ROD SWIVEL)

main90389-08005iFJ80,HDJ81,HZJ81..ATM199001-199208

33723TGROMMET (FOR CONNECTING ROD SWIVEL)

main90480-17177iFJ80,HDJ81,HZJ81..ATM199001-199208

33805PLATE SUB-ASSY, SHIFT LOCK (FOR FLOOR SHIFT)

main33805-60010iFJ80,HDJ81,HZJ81..ATM199001-199208

33877LABEL, SHIFT LOCK INFORMATION, NO.1

main33877-20010iFJ80,HDJ81,HZJ81..ATM199001-199208

33878LABEL, SHIFT LOCK INFORMATION, NO.2

main33878-20010iFJ80,HDJ81,HZJ81..ATM199001-199208

33886STOPPER, SHIFT LEVER

main33886-16010iFJ80,HDJ81,HZJ81..ATM199001-199208

35569BROD, TRANSMISSION CONTROL (FOR FLOOR SHIFT)

main35569-60030iFJ80,HDJ81,HZJ81..ATM199001-199208

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-60070iFJ80,HDJ81,HZJ81..ATM199001-199208

main35906-60100iFZJ80,HDJ81,HZJ81..ATM199208-199801

35921PLATE, CONTROL POSITION INDICATOR

main35921-60050iFJ80,HDJ81,HZJ81..ATM199001-199208

main35921-60100iFZJ80,HDJ81,HZJ81..ATM199208-199801

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-60070iFJ80,HDJ81,HZJ81..ATM199001-199208

35974HOUSING, POSITION INDICATOR, LOWER

main35974-60050iFJ80,HDJ81,HZJ81..ATM199001-199208

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-60050iFJ80,HDJ81,HZJ81..ATM199001-199208

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9046312570

main90463-12570

9046814017

main90468-14017

9056012050

main90560-12050

9094901039

main90949-01039

9331515012

main93315-15012

9331914006

main93319-14006

9411041000

main94110-41000

9413000802

main94130-00802

9451101000

main94511-01000

9451200800

main94512-00800

9461210800

main94612-10800

9461310800

main94613-10800

56 parts on this diagram · 2 diagrams in section
