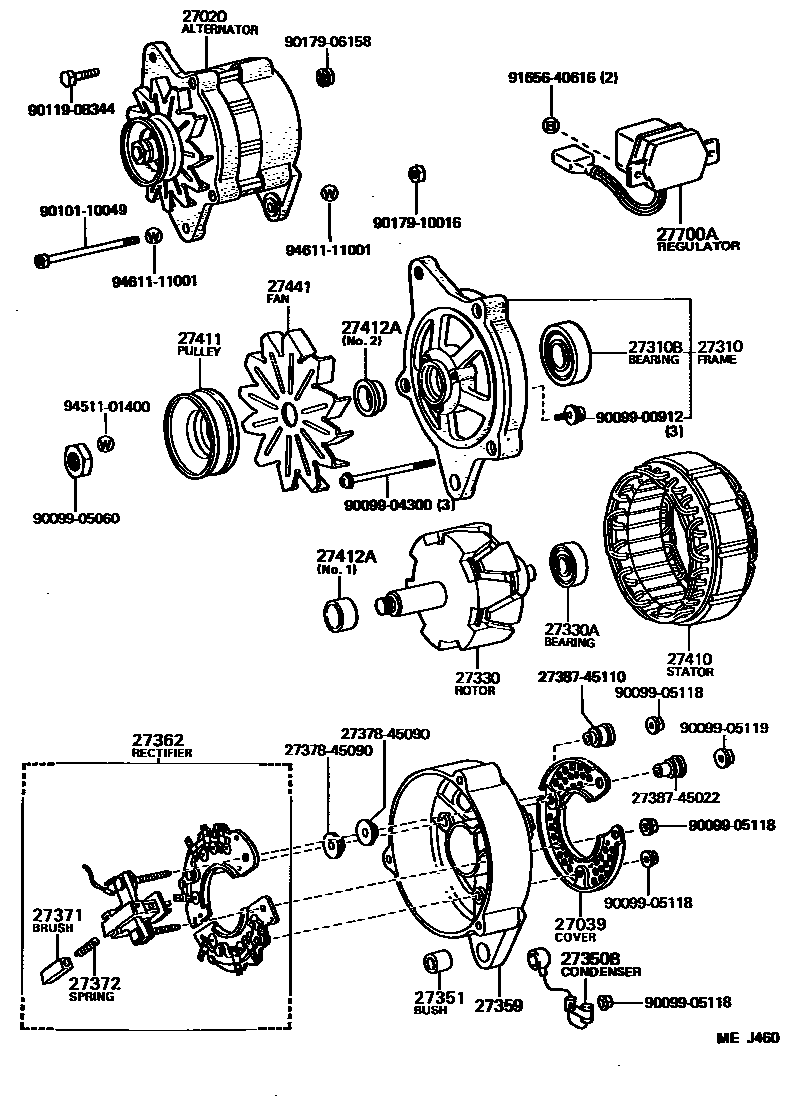

ALTERNATOR

0001 112V 50A 0002 112V 55A 0003 112V 80A 0004 124V 30A 0005 124V 40A

27020ALTERNATOR ASSY

main27020-61033i3F..FJ62..STD198708-199001

main27020-61180i3F..FJ62..GX198708-199001

main27020-68130i12HT,2H..HJ6#198708-198901

main27020-68150i12HT,2H..HJ6#198708-198808

main27020-68160i12HT,2H..HJ6#198901-199001

main27020-68170i12HT,2H..HJ6#198901-199001

main27060-61090i3FE..FJ62198808-199001

27039COVER, ALTERNATOR REAR END

main27039-15010i3F..FJ62..STD198708-199001

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-26101i3F..FJ62198708-199001

main27310-56180i12HT,2H..HJ6#198708-199001

24V 30A

main27310-68140i12HT,2H..HJ6#198708-199001

24V 40A

main27310-72070i3FE..FJ62198808-199001

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10110i3FE..FJ62198808-199001

main90099-10120i12HT,2H..HJ6#198708-198901

24V 40A

main90099-10125i3F..FJ62198708-199001

main90099-10137i12HT,2H..HJ6#198708-199001

24V 30A

main90099-10188i12HT,2H..HJ6#198901-199001

24V 40A

27330ROTOR ASSY, ALTERNATOR

main27330-16030i3F..FJ62..STD198708-199001

main27330-56110i12HT,2H..HJ6#198708-198901

24V 30A

main27330-56360i12HT,2H..HJ6#198901-199001

24V 30A

main27330-56433i12HT,2H..HJ6#198901-199001

24V 40A

main27330-63010i3F..FJ62..GX198708-199001

main27330-68150i12HT,2H..HJ6#198708-198711

24V 40A

main27330-68151i12HT,2H..HJ6#198711-198802

24V 40A

main27330-68152i12HT,2H..HJ6#198802-198901

24V 40A

main27330-72070i3FE..FJ62198808-199001

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10116i3F#..FJ62198808-199001

27350FRAME ASSY, RECTIFIER END

main27350-68040i12HT,2H..HJ6#198708-199001

24V 30A

main27350-68140i12HT,2H..HJ6#198708-199001

24V 40A

27350BCONDENSER, ALTERNATOR

main90099-52065i3F#..FJ62198708-199001

main90099-52066i12HT,2H..HJ6#198708-198804

24V 30A

main90099-52082i12HT,2H..HJ6#198808-199001

24V 40A

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i3F#..FJ62198708-199001

main27351-56013i12HT,2H..HJ6#198708-199001

27359FRAME, ALTERNATOR RECTIFIER END

main27359-24100i3F..FJ62198708-199001

main27359-61190i3FE..FJ62198808-199001

27362RECTIFIER ASSY, W/BRUSH

main27362-15021i3F..FJ62..STD198708-199001

main27362-63011i3F..FJ62..GX198708-199001

main27362-72070i3FE..FJ62198808-199001

27371BRUSH, ALTERNATOR

main27371-31011×2i3F#..FJ62198708-199001

main27371-56070×2i12HT,2H..HJ6#198708-199001

27372SPRING, ALTERNATOR BRUSH

main27372-31011×2i3F#..FJ62198708-199001

main27372-56070×2i12HT,2H..HJ6#198708-199001

27410STATOR ASSY, ALTERNATOR

main27410-41080i3F..FJ62..STD198708-199001

main27410-43040i3F..FJ62..GX198708-199001

main27410-56310i12HT,2H..HJ6#198708-199001

24V 30A

main27410-56430i12HT,2H..HJ6#198901-199001

24V 40A

main27410-68150i12HT,2H..HJ6#198808-198901

24V 40A

main27410-72070i3FE..FJ62198808-199001

27411PULLEY, ALTERNATOR

main27411-60032i3F..FJ62198708-199001

main27411-61210i3FE..FJ62198808-199001

main27411-68041i12HT,2H..HJ6#198708-199001

24V 30A

main27411-68140i12HT,2H..HJ6#198708-199001

24V 40A

27412ACOLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME)

main27412-15150i3F..FJ62198708-199001

main27412-31040i3F..FJ62198708-199001

main27412-45012i3FE..FJ62198808-199001

main27412-54040i12HT,2H..HJ6#198708-198808

24V 40A

main27412-57060i12HT,2H..HJ6#198708-199001

24V 30A

27441FAN, ALTERNATOR

main27441-34030i3F..FJ62198708-199001

main27441-45050i3FE..FJ62198808-199001

main27441-54070i12HT,2H..HJ6#198708-199001

24V 40A

main27441-56090i12HT,2H..HJ6#198708-199001

24V 30A

27700AREGULATOR ASSY, GENERATOR

main27700-15020i3F..FJ62198708-199001

main27700-57051i12HT,2H..HJ6#198708-198808

24V 40A

main27700-57090i12HT,2H..HJ6#198708-199001

24V 30A

main27700-63030i3FE..FJ62198808-199001

2737845090INSULATOR, ALTERNATOR, NO.1

main27378-45090

2738745022INSULATOR, TERMINAL

main27387-45022

2738745110INSULATOR, TERMINAL

main27387-45110

9009900912

main90099-00912

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9010110049

main90101-10049

9011908344

main90119-08344

9017906158

main90179-06158

9017910016

main90179-10016

9165640616

main91656-40616

9451101400

main94511-01400

9461111001

main94611-11001

33 parts on this diagram · 5 diagrams in section
