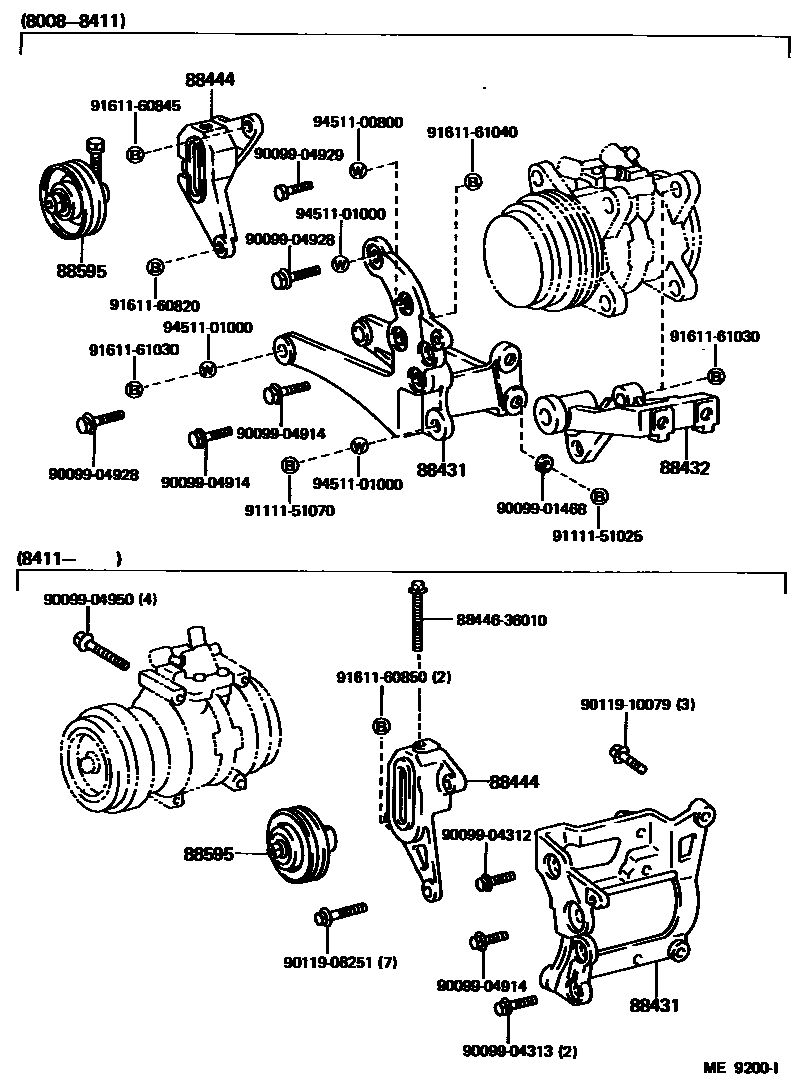

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-36190iBJ61198411-198608

main88431-60011iBJ6#198008-198411

main88431-60030iHJ60198210-198411

main88431-60040iFJ62198411-198708

main88431-60060iHJ6#198411-198708

main88437-60110iFJ60198008-198011

main88437-60120iFJ60198008-198011

W/POWER STEERING

main88437-60150iFJ6#198011-198411

W/POWER STEERING

main88437-60160iFJ6#198011-198411

88432BRACKET, COMPRESSOR MOUNTING, NO.2

main88431-60021iBJ6#198008-198411

main88437-60130iHJ60198210-198411

main88437-60180iFJ6#198208-198411

main88437-60190iFJ62198411-198708

W/O POWER STEERING

main88437-60200iHJ60198411-198510

main88437-60230iHJ6#198510-198708

ALTERNATOR=24V 40A

88444BRACKET, IDLE PULLEY

main88444-36110iBJ61198411-198608

main88444-60011iBJ6#198008-198411

main88444-60020iFJ6#198008-198411

main88444-60030iHJ60198210-198411

main88444-60040iHJ60198411-198510

main88444-60041iHJ6#198510-198708

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-12160iBJ61198411-198608

main88440-16010iBJ6#..4F198008-198411

main88440-20060iFJ6#198008-198411

main88440-30250iHJ60198210-198411

main88440-35010iFJ62,HJ6#198411-198708

main88440-60020iBJ6#198110-198411

W/POWER STEERING

8844636010BOLT, IDLE PULLEY

main88446-36010

9009901468

main90099-01468

9009904312

main90099-04312

9009904313

main90099-04313

9009904914

main90099-04914

9009904928

main90099-04928

9009904929

main90099-04929

9009904950

main90099-04950

9011908251

main90119-08251

9011910079

main90119-10079

9111151025

main91111-51025

9111151070

main91111-51070

9161160820

main91611-60820

9161160845

main91611-60845

9161160850

main91611-60850

9161161030

main91611-61030

9161161040

main91611-61040

9451100800

main94511-00800

9451101000

main94511-01000

23 parts on this diagram · 4 diagrams in section
