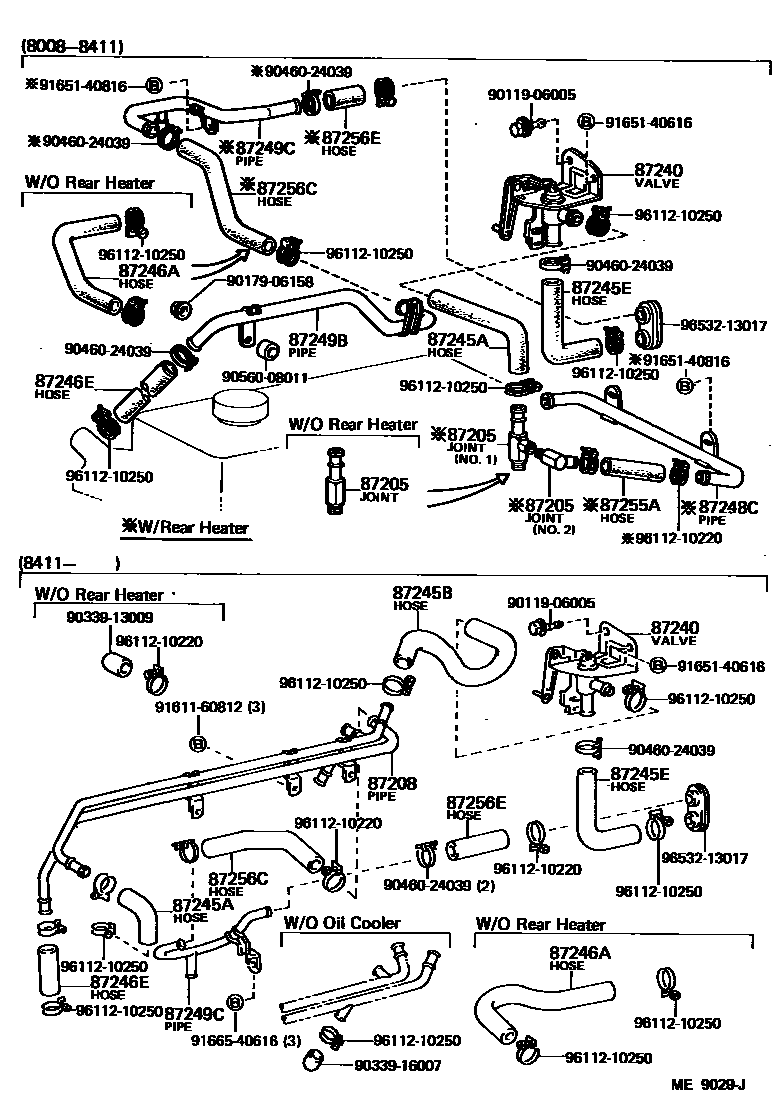

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE

main87251-30200iBJ6#198008-198608

main87251-90A00iFJ60198008-198210

main87251-90A01iFJ6#198008-198411

W/RR HEATER NO.1

main87251-90A02iFJ6#198008-198411

W/RR HEATER NO.2

main87251-90A04iHJ60198210-198510

RR HEATER

main87251-90A05iHJ6#198510-198708

RR HEATER

main87251-95400iHJ6#198210-198608

FR HEATER

87208PIPE SUB-ASSY, HEATER WATER

main87208-90A12iHJ61198510-198608

main87208-90A13iHJ61198608-198708

main87208-90K06iFJ62198411-198708

87240VALVE ASSY, HEATER WATER

main87240-90A00iBJ6#,FJ6#,HJ6#198008-198708

87245AHOSE, HEATER WATER, INLET A

main87245-90A01iFJ6#198008-198411

main87245-90A18iBJ6#198008-198608

main87245-90A48iHJ61198510-198708

main87245-90K37iFJ62198411-198708

main99552-30500iHJ60198210-198411

main99556-30390iHJ60198411-198508

main99556-30500iHJ60198508-198708

87245BHOSE, HEATER WATER, INLET B

main87245-90A27iFJ62198411-198708

main87245-90A37iHJ61198510-198708

87245EHOSE, HEATER WATER, INLET E

main87245-90A00iBJ6#,FJ6#,HJ6#198008-198708

87246AHOSE, HEATER WATER, OUTLET A

main87245-90A02iFJ60198008-198210

main87245-90A28iFJ62..IV4198411-198708

main99552-30500iBJ60198008-198210

*H,L=430

87246EHOSE, HEATER WATER, OUTLET E

main87245-90A19iHJ60198210-198708

main87245-90A26iBJ61198309-198411

main87245-90A36iHJ61198608-198708

main87245-90K36iFJ62198411-198708

main87247-20051iBJ6#198008-198309

main99552-30500iFJ6#198008-198309

*H,L=320

main99556-30055iBJ61198411-198508

main99556-30100iHJ61198510-198608

main99556-30320iFJ61198309-198411

87248CPIPE, HEATER WATER INLET, C

main87248-90A08iFJ6#198008-198411

main87248-90A12iBJ60198008-198110

main87248-90A17iBJ6#198110-198411

main87248-90K19iBJ61198411-198608

87249BPIPE, HEATER WATER OUTLET, B

main87248-60260iBJ6#198008-198411

main87248-90A06iFJ6#198008-198411

main87248-90A16iHJ60198210-198708

main87248-90K18iBJ61198411-198608

87249CPIPE, HEATER WATER OUTLET, C

main87248-90A07iFJ60198008-198210

main87248-90A14iBJ60198008-198210

main87248-90A18iFJ61,HJ60198210-198411

main87248-90A20iBJ61198210-198411

main87248-90A25iFJ62,HJ6#..5F198411-198708

main87248-90A26iBJ61198411-198608

main87248-90A27iHJ6#..4FC198411-198708

87255AHOSE, REAR HEATER WATER INLET, A(FROM ENGINE)

main87245-90A16iBJ60198008-198110

main87245-90A20iBJ6#198110-198411

main99552-20200iFJ60198008-198101

main99556-20055iBJ61198411-198508

main99556-20100iBJ61198508-198608

main99556-20150iFJ61198309-198411

87256CHOSE, REAR HEATER WATER OUTLET, C

main87245-90A06iFJ60198008-198210

main87245-90A13iBJ6#198008-198608

main87245-90A21iFJ61198210-198411

main87245-90A25iHJ60198210-198411

main87245-90A30iFJ62198411-198708

main87245-90A33iHJ60..5F198411-198708

main87245-90A34iHJ60..4FC198411-198708

main87245-90A44iHJ61..5F198510-198708

main87245-90A45iHJ61..4FC198608-198708

87256EHOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)

main87245-90A14iBJ60198008-198210

main87245-90A22iBJ61198210-198411

main87245-90A32iBJ61198411-198608

main99552-30100iFJ6#,HJ60198008-198309

main99556-30060iFJ6#198309-198508

main99556-30100iFJ62198508-198708

9011906005

main90119-06005

9017906158

main90179-06158

9033913009

main90339-13009

9033916007

main90339-16007

9046024039

main90460-24039

9056008011

main90560-08011

9161160812

main91611-60812

9165140616

main91651-40616

9165140816

main91651-40816

9166540616

main91665-40616

9611210220

main96112-10220

9611210250

main96112-10250

9653213017

main96532-13017

27 parts on this diagram · 6 diagrams in section
