WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1

82001CABLE, BOND, NO.1

main90980-07003iFJ6#,HJ6#198008-198708

main90980-07048iFJ62198411-198708

W/RADIO MITTION

main90980-07056iBJ6#198008-198608

main90980-07192iFJ60198008-198109

W/RADIO DIST.-ENGINE

main90980-07193iFJ6#198008-198411

W/RADIO MITTION

main90980-07194iFJ6#198008-198411

W/RADIO ENGINE-HEATER VALVE

main90980-07251iFJ62198411-198708

W/RADIO ENGINE-HEATER VALVE

82002CABLE, BATTERY TO MAGNET SWITCH

main38655-90A00iBJ6#,FJ6#,HJ60198008-198411

main82275-90A00iBJ61,FJ62,HJ6#198411-198708

82002ACABLE, MAGNET SWITCH TO WINCH

main38656-90A00iFJ6#,HJ60198008-198411

main38656-90A01iBJ6#198008-198411

main82276-90A00iFJ62,HJ6#198411-198708

main82276-90A01iBJ61198411-198608

82002BCABLE, WINCH TO GROUND

main90980-07175iBJ6#,FJ6#,HJ6#198008-198708

82024WIRE SUB-ASSY, FOG LAMP FEED

main82024-90A00×2iBJ6#,FJ6#,HJ60198110-198411

main82111-90A00×2iBJ61,FJ62,HJ6#198411-198708

82046WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH

main82046-90A00iBJ6#,HJ60..VLS198110-198411

main82187-90A00iBJ61,HJ6#..VLS198411-198708

82046AWIRE SUB-ASSY, BODY GROUND, NO.1

main82046-90A01iFJ6#198008-198708

W/RADIO IGNITION COIL

82112WIRE, ENGINE ROOM, NO.2

main82112-90A01iHJ60..4FC198411-198510

main82112-90A02iHJ60..4FC198510-198708

82114WIRE, ENGINE ROOM, NO.4

main82114-90A01iBJ61,HJ60198411-198510

W/*36

82121WIRE, ENGINE

main82121-90A01iHJ6#198411-198708

82124WIRE, ENGINE, NO.4

main82050-90A01iHJ60198210-198411

main82124-90A00iHJ60198411-198708

main82124-90A02iHJ61198510-198708

82125WIRE, TRANSMISSION

main82125-90A01iFJ62198411-198708

main82125-90A03iBJ61,HJ6#..MTM198411-198708

main82125-90A04iHJ6#..4FC198411-198708

main82310-90A01iFJ60198008-198210

main82310-90A03iBJ60198008-198210

main82310-90A06iBJ61,HJ60198210-198301

main82310-90A07iFJ61..CBU198210-198301

main82310-90A10iBJ61,HJ60198301-198411

main82310-90A11iFJ61..IV4198210-198411

82131WIRE, COWL

main82131-90A03iFJ62..CBU198411-198510

main82131-90A04iFJ62..IV4198411-198510

main82131-90A14iHJ60198411-198510

main82131-90A21iBJ61198411-198510

main82131-90A44iFJ62..CBU198510-198608

main82131-90A45iFJ62..IV4198510-198608

main82131-90A68iHJ60198510-198608

main82131-90A69iHJ60198510-198608

ALTERNATER=24V 40A

main82131-90A82iBJ61198510-198608

main82131-90A90iHJ61198510-198608

main82131-90A91iHJ61198510-198608

ALTERNATER=24V 40A

main82131-90G04iFJ62..CBU198608-198708

main82131-90G05iFJ62..IV4198608-198708

main82131-90G22iHJ60198608-198708

main82131-90G23iHJ60198608-198708

ALTERNATER=24V 40A

main82131-90G35iHJ61198608-198708

main82131-90G36iHJ61198608-198708

ALTERNATER=24V 40A

main82210-90A03iFJ60..CBU198008-198110

main82210-90A07iBJ60198008-198110

main82210-90A32iFJ60..IV4198011-198110

main82210-90A33iFJ60..CBU198110-198210

main82210-90A37iFJ60..IV4198110-198210

main82210-90A43iBJ60198110-198210

main82210-90A64iFJ61..CBU198210-198411

main82210-90A67iFJ61..IV4198210-198411

main82210-90A73iBJ61198210-198302

main82210-90A83iHJ60198210-198302

main82210-90A87iBJ61198302-198411

main82210-90A91iHJ60198302-198411

82132WIRE, COWL, NO.2

main82028-90A00iBJ60,FJ60198008-198110

main82028-90A02iBJ60,FJ60198008-198110

W/RR HEATER

main82028-90A06iBJ60,FJ60..VKC..CBU198110-198210

main82028-90A11iBJ60,FJ60..VKC..CBU198110-198210

W/RR HEATER OR FOG LAMP

main82132-90A07iBJ61,FJ62,HJ60..CBU198411-198510

main82132-90A09iFJ62..IV4198411-198708

main82132-90A13iBJ61,FJ62,HJ6#..CBU198510-198708

82134WIRE, COWL, NO.4

main82134-90A00iHJ6#198411-198708

main82134-90A02iFJ62..IV4198411-198608

main82134-90A04iFJ62..IV4198608-198708

82141WIRE, INSTRUMENT PANEL

main82141-90A03iBJ61; HJ60198501-198510

W/*FSW

main82141-90A04iFJ62,HJ60198501-198510

main82141-90A09iFJ62,HJ6#198510-198708

main82141-90A10iHJ6#198510-198708

W/*FSW

main82141-90A11iHJ61198510-198608

W/DIFF LOCK

main82141-90A12iHJ61198510-198608

W/DIFF LOCK & *FSW

main82141-90A15iFJ62,HJ6#..CBU198608-198708

W/DIFF LOCK(W/O *FSW)

main82141-90A16iHJ6#198608-198708

W/DIFF LOCK & *FSW

main82232-90A03iFJ60198008-198210

main82232-90A06iBJ60198110-198210

W/FUEL SEDIMENTER

main82232-90A07iBJ60198008-198210

main82232-90A09iBJ61198210-198411

main82232-90A10iFJ61,HJ60198210-198411

82165WIRE, FRAME, NO.2

main82165-90A00iHJ60..5F198411-198708

82166WIRE, CONSOLE BOX

main82166-90A00iBJ61,FJ62,HJ6#..CBU198510-198708

82172WIRE, ROOF, NO.2

main82172-90A00iBJ61,HJ6#..VLS198510-198708

82203WIRE SUB-ASSY, ALTERNATOR

main82114-90K05iHJ6#198510-198708

82210CFUSIBLE LINK

main90982-08136iFJ6#198110-198708

main90982-08138iBJ60198008-198110

main90982-08187iBJ6#,HJ6#198110-198708

82210EFUSIBLE LINK

main90982-08115iHJ61198510-198708

82219WIRE, THERMO SENSOR

main82219-90K02iBJ61,HJ6#..HRF198510-198608

82241CWIRE, RELAY

main82241-22060iBJ60198008-198210

main82241-90A02iHJ60198210-198411

main82241-90A03iBJ61,FJ62..VKC..CBU198502-198708

82282WIRE, DIFF LOCK INDICATOR

main82282-90A02iHJ61198510-198607

FR

main82282-90A03iHJ61198510-198607

RR

main82282-90A04iFJ62,HJ6#..CBU198608-198708

FR

main82282-90A05iFJ62,HJ6#..CBU198608-198708

RR

82345DIODE

main82345-12010×2iBJ61,FJ61,HJ60198210-198411

main82345-12050×2iBJ61,FJ62,HJ60198411-198510

82376WIRE, MOTOR ANTENNA

main82113-90A00iBJ61,HJ60198411-198510

82377WIRE, VOLTAGE CONVERTER

main82114-90A00iBJ61,HJ60198411-198510

main82372-90A01iBJ6#,HJ60198110-198411

24V

main82377-90A00iBJ60198008-198110

24V

82670BLOCK ASSY, JUNCTION, NO.1

main82670-90A00iBJ61,HJ6#198411-198512

NO.1

main82670-90A01iHJ61198512-198708

NO.1

main82670-90K02iHJ6#198510-198708

NO.2

main82671-30030iBJ6#,HJ60198110-198411

NO.1

82823CAP, TERMINAL, NO.1

main82823-90300iBJ6#,FJ6#,HJ6#198008-198708

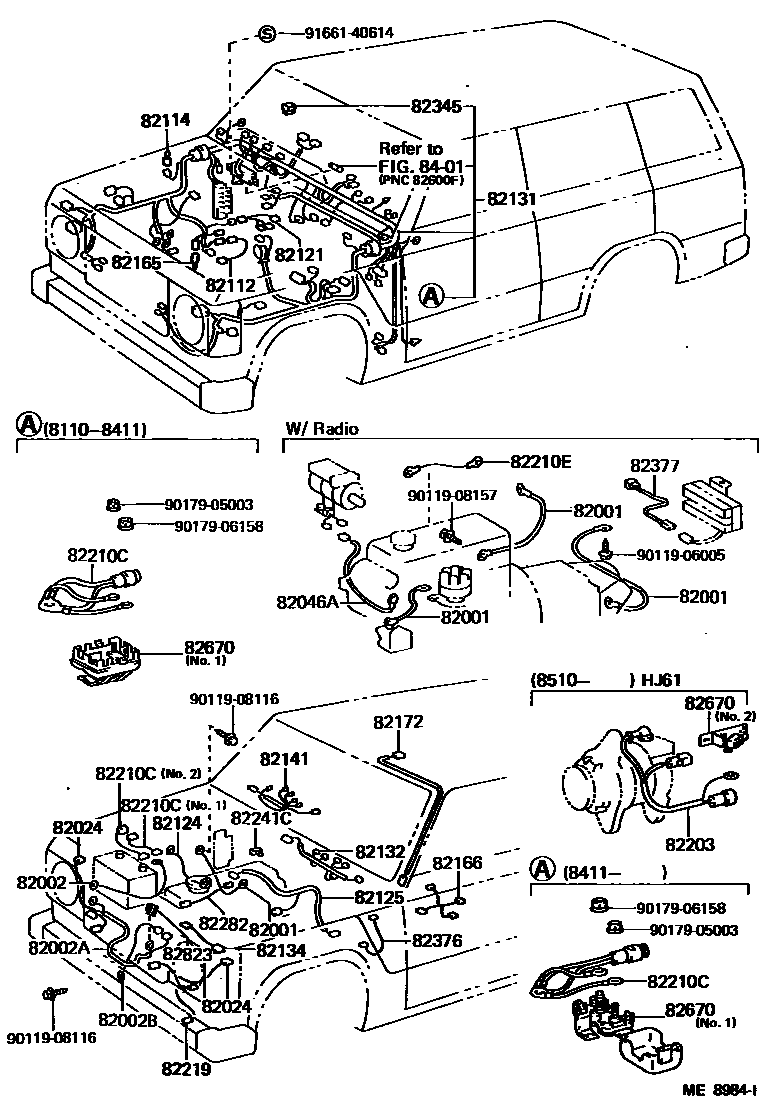

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906005

main90119-06005

9011908116

main90119-08116

9011908157

main90119-08157

9017905003

main90179-05003

9017906158

main90179-06158

9166140614

main91661-40614

37 parts on this diagram · 4 diagrams in section
