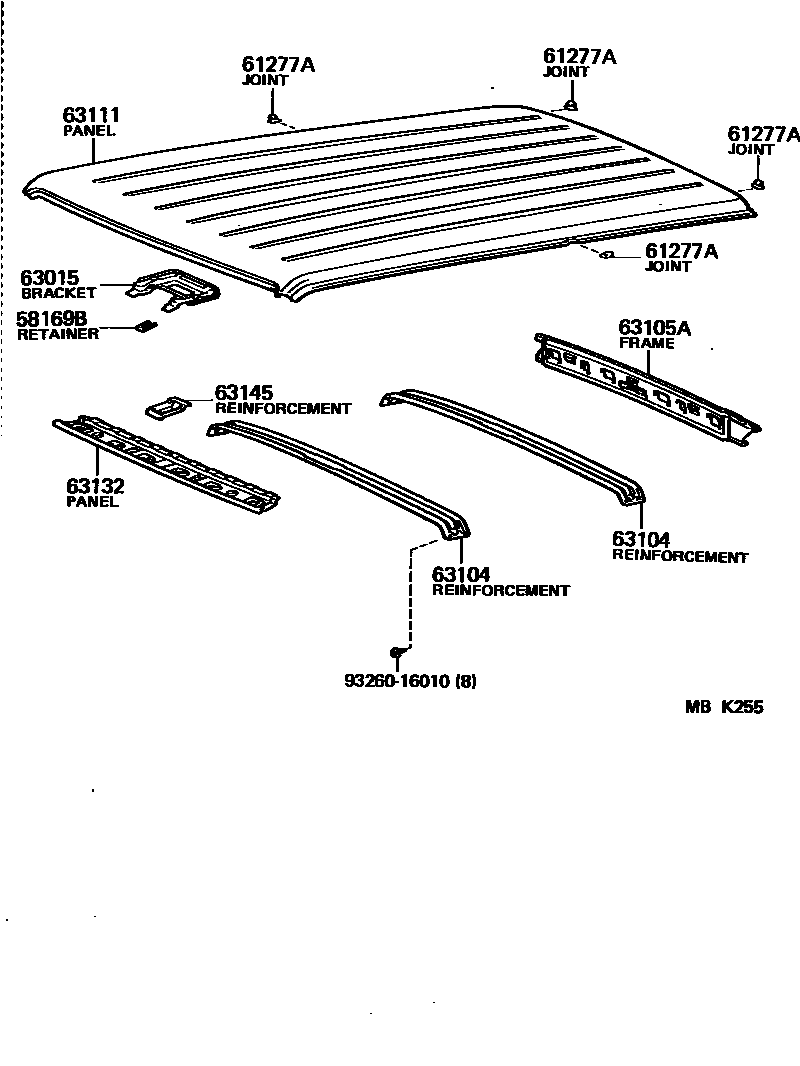

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1 0004 1 0005 1

58169BRETAINER, REAR HEATER MOUNTING

main58169-90A00×2iBJ61,HJ6#..VLS198510-198708

61277AJOINT, ROOF DRIP CHANNEL

main61277-90A00×4iBJ6#,FJ6#..VKC..CBU198008-198411

main61277-90K00×4iBJ61,FJ62,HJ60..VKC198511-198708

63015BRACKET SUB-ASSY, ROOF CONSOLE

main63015-90A00iBJ61..SRF198510-198608

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63141-90A00×2iFJ62,HJ60..VKC..CBU198608-198708

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-90A00iBJ6#..VLS..SRF198110-198608

main63105-90A01iBJ6#,FJ6#..VKC..CBU198008-198608

main63105-90A03iBJ61,HJ6#..HRF198210-198608

main63105-90A14iFJ62,HJ60..VKC..CBU198608-198708

63111PANEL, ROOF

main63111-90A00iBJ6#,FJ6#,HJ60..SRF..CBU198008-198708

main63111-90A02iBJ61,HJ6#..HRF198210-198708

63132PANEL, WINDSHIELD HEADER, INNER

main63132-90A00iBJ6#,FJ6#,HJ60..CBU198008-198510

main63132-90A01iFJ6#..IV4198011-198411

main63132-90A03iFJ62..IV4198411-198708

63145REINFORCEMENT, WINDSHIELD HEADER INNER PANEL

main63145-90A00iFJ60..IV4198011-198103

9326016010

main93260-16010

9 parts on this diagram · 5 diagrams in section
