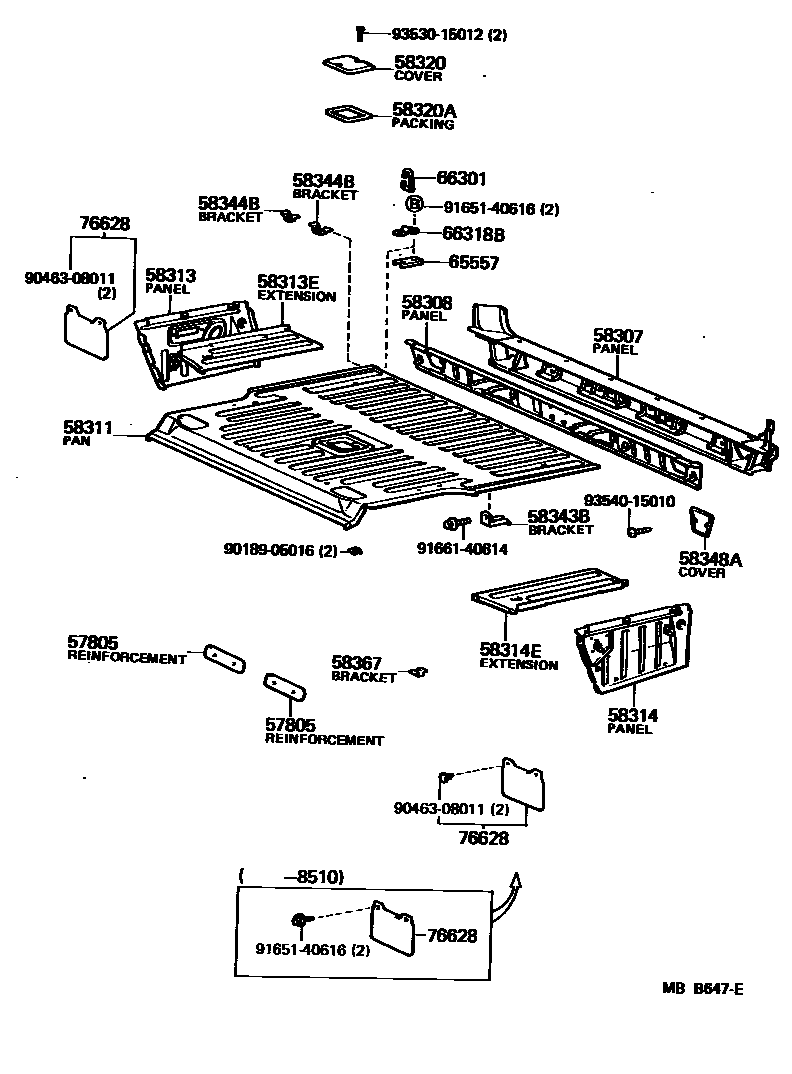

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1

57805REINFORCEMENT SUB-ASSY, BELT ANCHOR

main57805-90A00×2iBJ6#,FJ6#,HJ60198008-198609

main57805-90A01iHJ61198510-198708

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-90A00iBJ6#,HJ6#..VLS198110-198708

main58307-90A01iBJ6#,FJ6#,HJ60..VKC198008-198708

58308PANEL SUB-ASSY, BODY LOWER BACK, INNER

main58308-90A01iBJ6#,FJ6#,HJ60198008-198510

main58308-90A02iBJ61,FJ62,HJ6#198510-198703

main58308-90A05iFJ62,HJ60..VKC198703-198708

58311PAN, REAR FLOOR

main58311-90A00iBJ6#,FJ6#,HJ60198008-198305

main58311-90A04iBJ61,FJ6#,HJ60198305-198708

main58311-90A15iHJ61198510-198612

main58311-90A24iHJ61198612-198708

58313PANEL, REAR FLOOR SIDE, RH

main58305-90A00iBJ60,FJ60198008-198103

main58305-90A01iBJ60,FJ60198103-198210

main58305-90A02iBJ61,HJ60..HRF198210-198509

main58305-90A07iBJ61,FJ62,HJ60..SRF198510-198708

main58305-90A08iFJ62198509-198510

main58305-90A09iBJ61,HJ6#..HRF198509-198708

58313EEXTENSION, REAR FLOOR SIDE PANEL, RH

main58315-90A00iBJ6#,FJ6#,HJ6#198008-198708

58314PANEL, REAR FLOOR SIDE, LH

main58306-90A00iBJ60,FJ60198008-198210

main58306-90A01iBJ61,HJ60..HRF198210-198509

main58306-90A04iBJ61,FJ62,HJ60..SRF198510-198708

main58306-90A05iBJ61,HJ6#..HRF198510-198708

main58306-90A08iBJ61,FJ62..SRF..CBU198509-198510

main58306-90A09iBJ61,HJ60..HRF198509-198510

58314EEXTENSION, REAR FLOOR SIDE PANEL, LH

main58316-90A00iBJ6#,FJ6#,HJ6#198008-198708

58320COVER, REAR FLOOR SERVICE HOLE

main58325-90A00iBJ6#,FJ6#,HJ6#198008-198708

58320APACKING, REAR FLOOR SERVICE HOLE

main58339-90A00iBJ6#,FJ6#,HJ6#198008-198708

58343BBRACKET, FUEL HOSE PROTECTOR, FRONT

main58343-90A01iBJ6#,FJ6#,HJ6#198008-198708

58344BBRACKET, FUEL HOSE PROTECTOR, REAR

main58131-90A00iBJ6#,FJ6#,HJ6#198008-198608

RH

main58344-90A00iBJ6#,FJ6#,HJ60198008-198411

LH

main58344-90A01iBJ61,FJ62,HJ6#198411-198708

LH

58348ACOVER, REAR BODY MOUNTING SERVICE HOLE

main58348-90A00×2iBJ6#,FJ6#,HJ6#198008-198708

58367BRACKET, FUEL TUBE CLAMP

main58367-90A00iBJ6#,FJ6#,HJ6#198008-198708

65557RETAINER, ROPE HOOK

main65557-90A01×4iBJ61,FJ62,HJ6#198510-198708

66301HOOK SUB-ASSY, ROPE

main66301-90A00×4iBJ61,FJ62,HJ6#..CBU198510-198708

66318BBAND, ROPE HOOK

main66318-90A00×4iBJ61,FJ62,HJ6#..CBU198510-198708

76628MUDGUARD, QUARTER PANEL, REAR

main76628-90A00×2iBJ6#,FJ6#,HJ6#198008-198708

9018905016

main90189-05016

9046308011

main90463-08011

9165140616

main91651-40616

9166140614

main91661-40614

9353015012

main93530-15012

9354015010

main93540-15010

24 parts on this diagram · 2 diagrams in section
