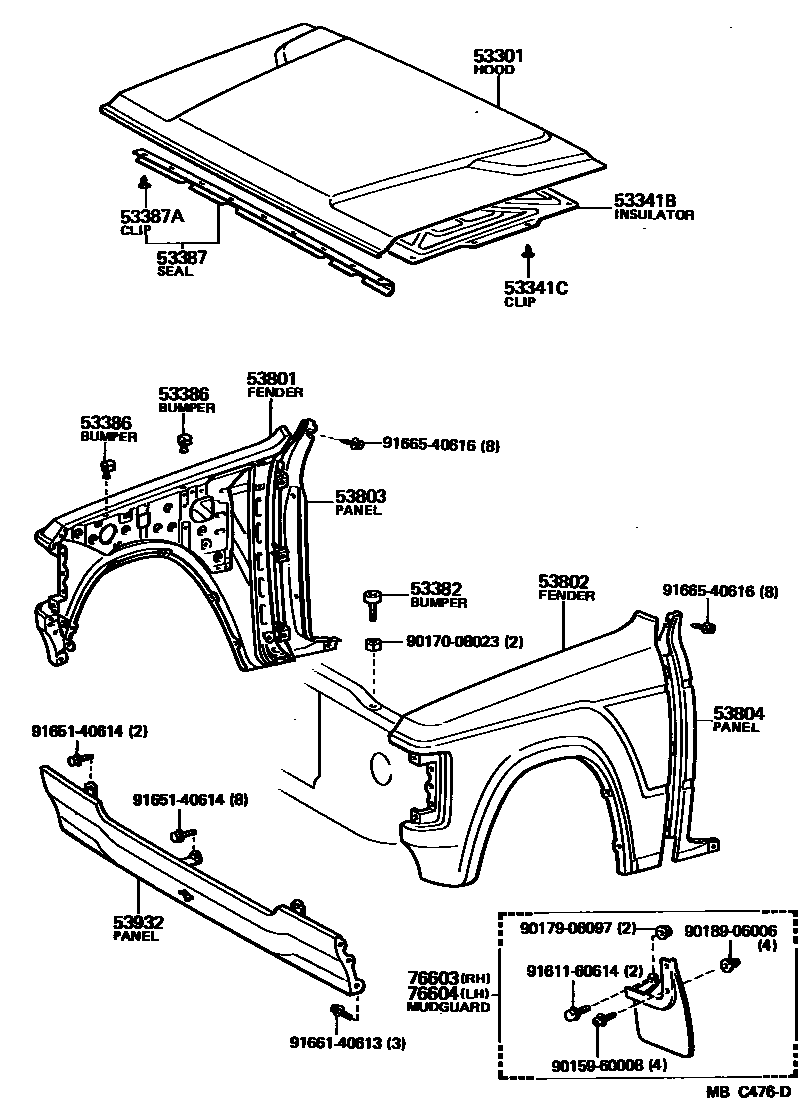

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-90A01iBJ6#,FJ6#,HJ6#198008-198708

53341BINSULATOR, HOOD

main53341-90A00iBJ6#,FJ6#,HJ60198008-198708

main53341-90A01iHJ61198510-198708

53341CCLIP(FOR HOOD INSULATOR)

main90467-09014×19iBJ6#,FJ6#,HJ6#198008-198708

53382BUMPER, HOOD, FRONT

main53382-20011×2iBJ6#,FJ6#,HJ6#198008-198511

main53382-90A00×2iBJ61,FJ62,HJ6#198511-198708

53386BUMPER, HOOD, REAR

main53382-30060×4iBJ6#,FJ6#,HJ6#198008-198708

53387SEAL, HOOD TO RADIATOR SUPPORT

main53381-90A00iBJ6#,FJ6#,HJ6#198008-198708

53387ACLIP(FOR HOOD TO RADIATOR SUPPORT SET)

main90467-08008×9iBJ60,FJ60198008-198109

main90467-08011×9iBJ6#,FJ6#,HJ6#198109-198708

53801FENDER SUB-ASSY, FRONT RH

main53801-90A05iBJ60..VLS198110-198210

main53801-90A24iBJ61,HJ6#..VLS198411-198708

W/*DM

main53801-90A42iBJ61,HJ6#..VLS198210-198708

W/*FM

53802FENDER SUB-ASSY, FRONT LH

main53802-90A06iBJ60,FJ60198008-198101

main53802-90A15iBJ60,FJ60198101-198105

W/MUDGUARD

main53802-90A19iBJ61,HJ6#..VLS198411-198708

W/*DM

main53802-90A34iBJ61,HJ6#..VLS198210-198708

53803PANEL SUB-ASSY, FRONT FENDER SIDE, REAR RH

main53083-90A00iFJ6#..IV4198011-198411

53804PANEL SUB-ASSY, FRONT FENDER SIDE, REAR LH

main53084-90A00iFJ6#..IV4198011-198411

53932PANEL SUB-ASSY, FRONT END

main53903-90A02iBJ6#,FJ6#,HJ60198008-198411

W/O HEADLAMP CLEANER

main53903-90A03iBJ6#,FJ6#,HJ60198008-198411

W/HEADLAMP CLEANER

main53903-90A08iBJ61,FJ62,HJ6#198411-198708

W/O HEADLAMP CLEANER

main53903-90A09iBJ61,FJ62,HJ6#198411-198708

W/HEADLAMP CLEANER

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76603-69015iBJ6#,FJ6#,HJ6#198008-198708

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76604-69015iBJ6#,FJ6#,HJ6#198008-198708

9015960008

main90159-60008

9017008023

main90170-08023

9017906097

main90179-06097

9018906006

main90189-06006

9161160614

main91611-60614

9165140614

main91651-40614

9166140613

main91661-40613

9166540616

main91665-40616

22 parts on this diagram · 1 diagram in section
