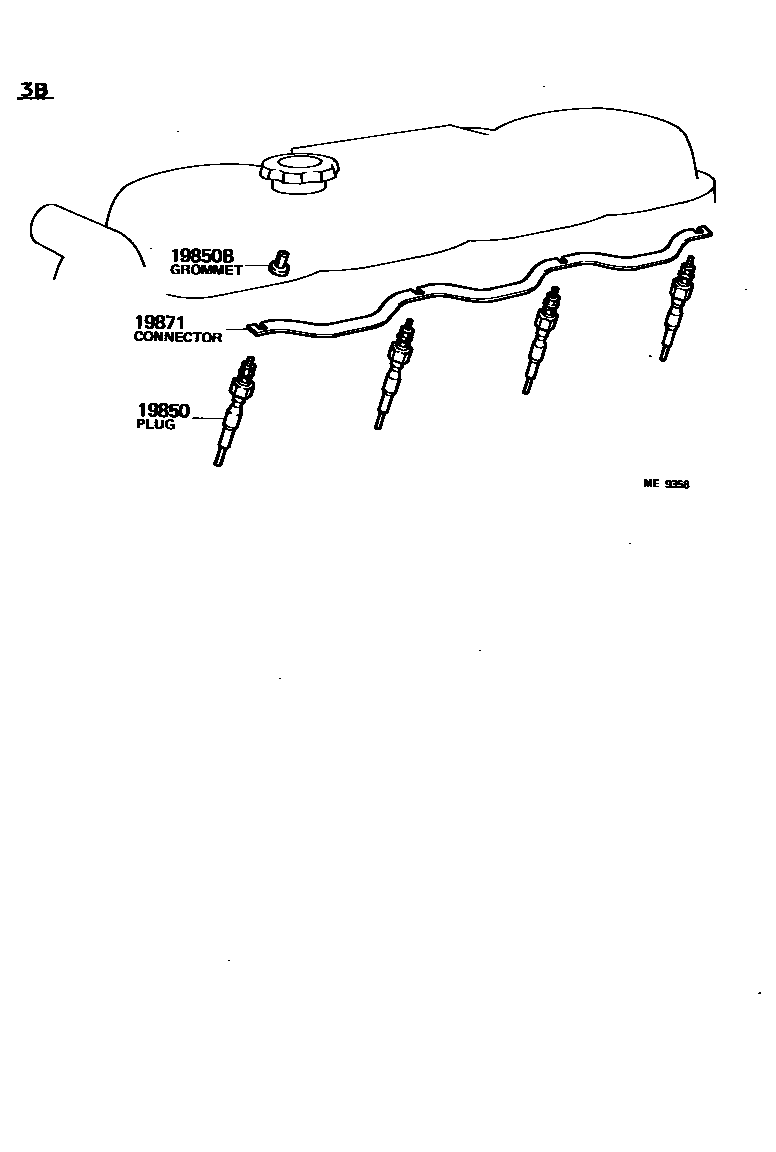

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1

19850PLUG ASSY, GLOW

main19850-68020×4i3B..BJ60198008-198110

main19850-68060×4i2H..HJ60; 3B..BJ6#198110-198708

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024×5i2H..HJ60; 3B..BJ6#198008-198708

19871CONNECTOR, GLOW PLUG NO.1

main19871-56020i3B..BJ6#198008-198608

main19871-68011i2H..HJ60198210-198708

3 parts on this diagram · 4 diagrams in section
