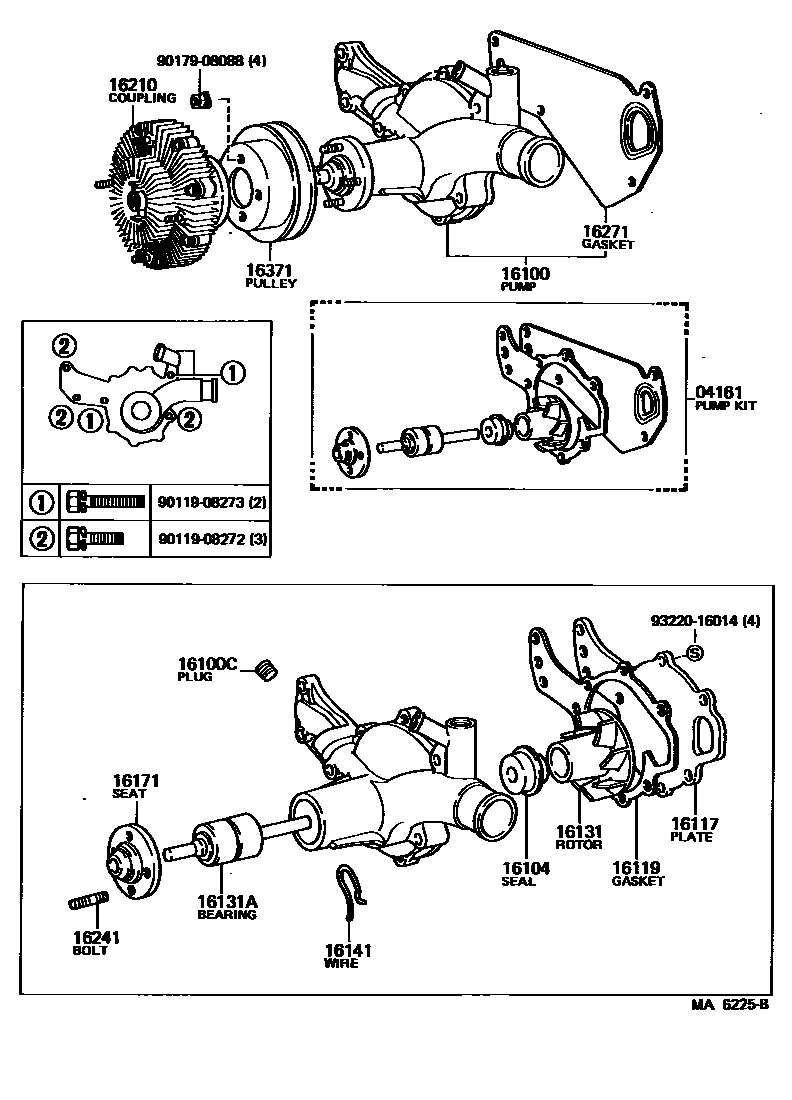

WATER PUMP

0001 1 0002 1 0003 1 0004 1

04161PUMP KIT, WATER

main04161-56080i3B..BJ6#198008-198608

main04161-68010i12HT,2H..HJ6#198210-198708

16100PUMP ASSY, ENGINE WATER

main16100-59105i3B..BJ6#198008-198608

main16100-61120i2F..FJ6#198008-198411

main16100-61130i2F..FJ6#..CBU198008-198411

W/OIL COOLER

main16100-69035i12HT,2H..HJ6#198210-198708

main16100-69145i3F..FJ62198411-198708

main16100-69155i3F..FJ62198411-198708

W/OIL COOLER

16100CPLUG, W/HEAD TAPER SCREW

main15184-15010i3B..BJ6#198008-198608

16104SEAL SET, WATER PUMP

main16104-15020i12HT,2H..HJ6#198507-198708

main16104-41111i2H..HJ60198008-198507

main16104-52011i3B..BJ6#198008-198507

main16104-52013i3B..BJ61198507-198608

16117PLATE, WATER PUMP

main16117-56040i3B..BJ6#198008-198608

main16117-61012i2F..FJ6#198008-198411

main16117-61110i3F..FJ62198411-198708

16119GASKET, WATER PUMP BODY

main16119-56040i3B..BJ6#198008-198608

16131ROTOR, WATER PUMP

main16131-56040i3B..BJ6#198008-198608

main16131-61071i2F..FJ6#198008-198411

main16131-68010i12HT,2H..HJ6#198210-198708

16131ABEARING, WATER PUMP

main90369-35007i2F..FJ6#198008-198411

main90369-35016i12HT,2H..HJ6#198210-198708

main90369-38001i3B..BJ6#198008-198608

16141WIRE, WATER PUMP BEARING RETAINING

main16141-68010i12HT,2H..HJ6#198210-198708

main16141-76010i3B..BJ6#198008-198608

16171SEAT, WATER PUMP PULLEY

main16171-41170i12HT,2H..HJ6#198210-198708

main16171-61071i2F,3F..FJ6#198008-198708

16210COUPLING ASSY, FLUID

main16210-58011i3B..BJ6#198008-198307

main16210-58012i3B..BJ61198307-198608

main16210-61120i2F..FJ6#198008-198411

main16210-61121i3F..FJ62198411-198708

main16210-68011i12HT,2H..HJ6#..4FC198411-198708

main16210-68020i2H..HJ60198210-198308

main16210-68021i2H..HJ60198308-198708

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16198-41050i2F,3F..FJ6#198008-198708

main16198-41170i3B..BJ6#198008-198608

main90116-08112i12HT,2H..HJ6#198210-198708

16271GASKET, WATER PUMP

main16271-56020i3B..BJ6#198008-198608

main16271-60011i2F..FJ6#198008-198411

main16271-61010i3F..FJ62198411-198708

main16271-68010i12HT,2H..HJ6#198210-198708

16371PULLEY, FAN

main16173-61070i2F,3F..FJ6#198008-198708

main16371-56040i3B..BJ6#198008-198608

main16371-68010i2H..HJ60198210-198708

main16371-68040i12HT..HJ61198510-198708

24A-40A OR COLD SPEC

main88452-60010i2H..HJ60198210-198411

W/COOLER

9011908272

main90119-08272

9011908273

main90119-08273

9017908088

main90179-08088

9322016014

main93220-16014

18 parts on this diagram · 4 diagrams in section
