HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

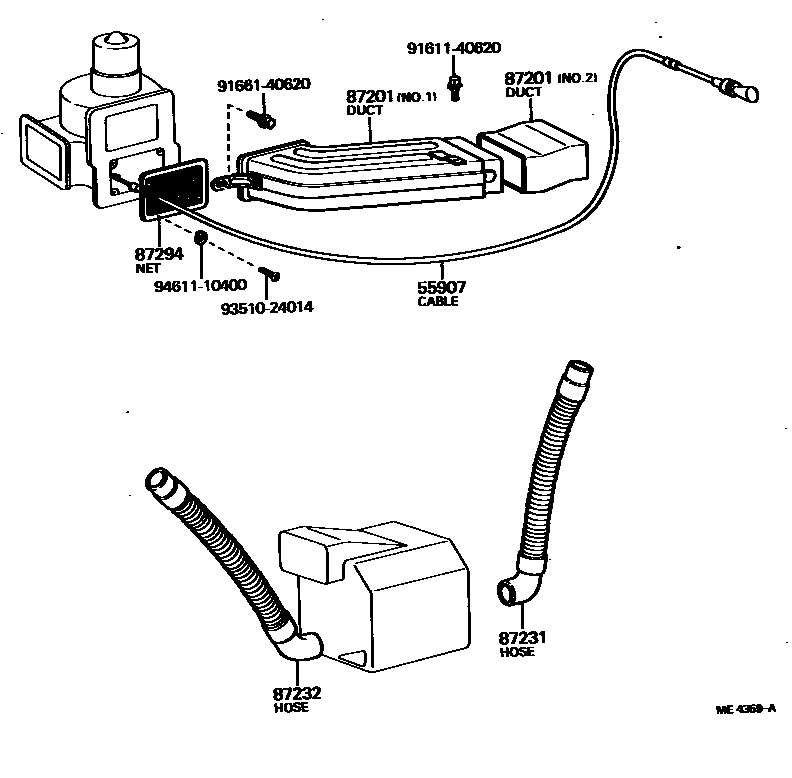

0001 1 0002 1 0003 1 0004 1

55907CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY

main87286-60091iFJ55196903-197309

L=981

main87286-60092iFJ55197309-197405

L=970

main87286-90350iFJ5#197405-198007

L=970

main87296-60030iFJ4#196903-197209

main87296-60031iFJ4#197209-197309

main87296-60032iBJ4#,FJ4#197309-198007

87201DUCT SUB-ASSY, AIR, NO.1

main87211-60061iFJ4#196903-197309

NO.1

main87211-60062iBJ4#,FJ4#197309-198007

main87211-60103iFJ55196903-197309

main87211-60104iFJ5#197309-198007

L/COOLER

main87211-60150iBJ41..V197902-198007

W/COOLER

main87212-60031iFJ4#196903-197309

NO.2

87231HOSE, HEATER DEFROSTER, RH

main87231-60031iFJ4#196903-197309

main87231-60032iBJ4#,FJ4#197309-197610

main87231-60090iFJ5#196903-197902

L=400

main87231-60091iFJ56197902-198007

L=400

main87231-60130iBJ4#197610-197902

main87232-60100iFJ5#196903-197902

L=650

main87232-60101iFJ56197902-198007

L=650

87232HOSE, HEATER DEFROSTER, LH

main87231-60031iFJ4#196903-197309

main87231-60032iBJ4#,FJ4#197309-197610

main87231-60130iBJ4#197610-197902

main87231-60131iBJ4#197902-198007

main87231-60140iBJ4#197902-198007

W/COOLER

main87233-60091iFJ5#196903-198007

87294NET, AIR DUCT

main87294-60030iFJ4#196903-197309

main87294-60031iBJ4#,FJ4#197309-198007

main87294-60090iFJ55196903-197309

9161140620

main91611-40620

9166140620

main91661-40620

9351024014

main93510-24014

9461110400

main94611-10400

9 parts on this diagram · 4 diagrams in section
