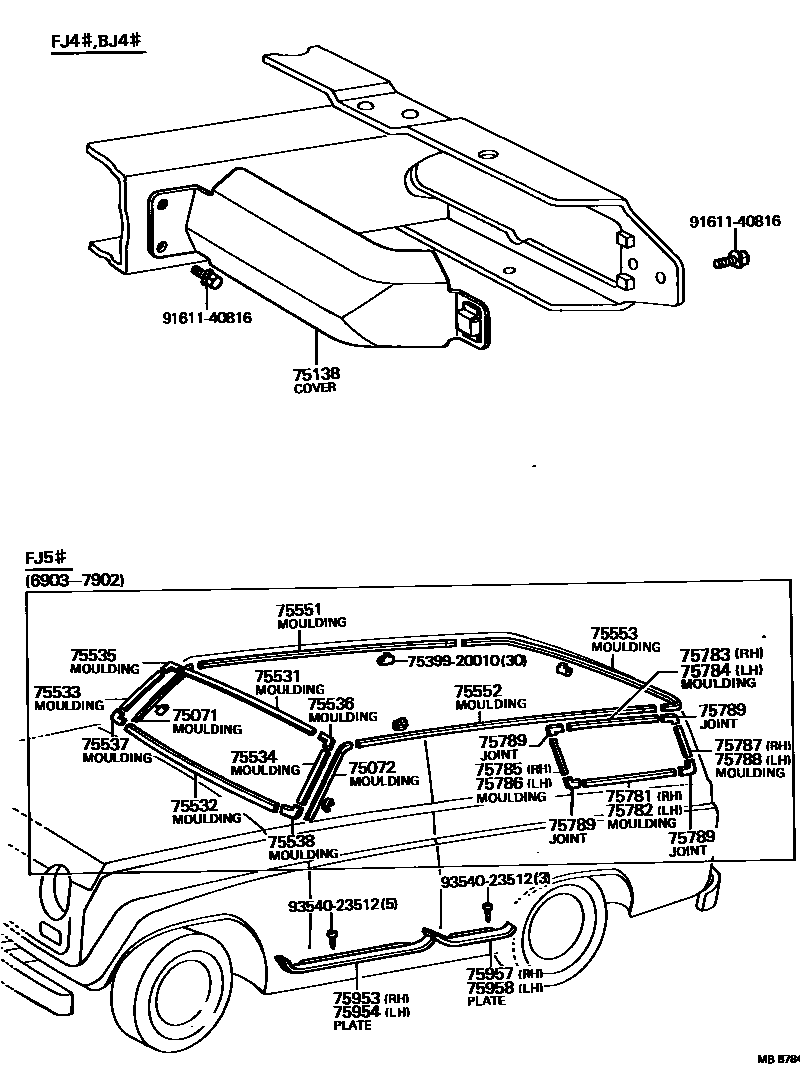

MOULDING
75071MOULDING SUB-ASSY, FRONT DOOR WINDOW FRAME, FRONT RH
75072MOULDING SUB-ASSY, FRONT DOOR WINDOW FRAME, FRONT LH
75138COVER, REAR COMBINATION LAMP
RH.
RH.
LH.
LH.
75531MOULDING, WINDSHIELD, OUTER UPPER
75532MOULDING, WINDSHIELD, LOWER
75533MOULDING, WINDSHIELD, OUTSIDE RH
75534MOULDING, WINDSHIELD, OUTSIDE LH
75535MOULDING, WINDSHIELD CORNER, UPPER RH
75536MOULDING, WINDSHIELD CORNER, UPPER LH
75537MOULDING, WINDSHIELD CORNER, LOWER RH
75538MOULDING, WINDSHIELD CORNER, LOWER LH
75551MOULDING, ROOF DRIP SIDE FINISH, RH
75552MOULDING, ROOF DRIP SIDE FINISH, LH
75553MOULDING, ROOF DRIP SIDE FINISH, RH
75781MOULDING, QUARTER WINDOW, LOWER RH
75782MOULDING, QUARTER WINDOW, LOWER LH
75783MOULDING, QUARTER WINDOW, UPPER RH
75784MOULDING, QUARTER WINDOW, UPPER LH
75785MOULDING, QUARTER WINDOW, FRONT RH
75786MOULDING, QUARTER WINDOW, FRONT LH
75787MOULDING, QUARTER WINDOW, REAR RH
75788MOULDING, QUARTER WINDOW, REAR LH
75789JOINT, QUARTER WINDOW MOULDING
FRONT UPPER
FRONT LOWER
FRONT LOWER
REAR LOWER
REAR UPPER
75953PLATE, FRONT DOOR SCUFF, INSIDE RH
75954PLATE, FRONT DOOR SCUFF, INSIDE LH
75957PLATE, REAR DOOR SCUFF, INSIDE RH
75958PLATE, REAR DOOR SCUFF, INSIDE LH
7539920010RETAINER, ROOF DRIP SIDE FINISH MOULDING
main75399-20010
9161140816
main91611-40816
9354023512
main93540-23512
30 parts on this diagram · 1 diagram in section
