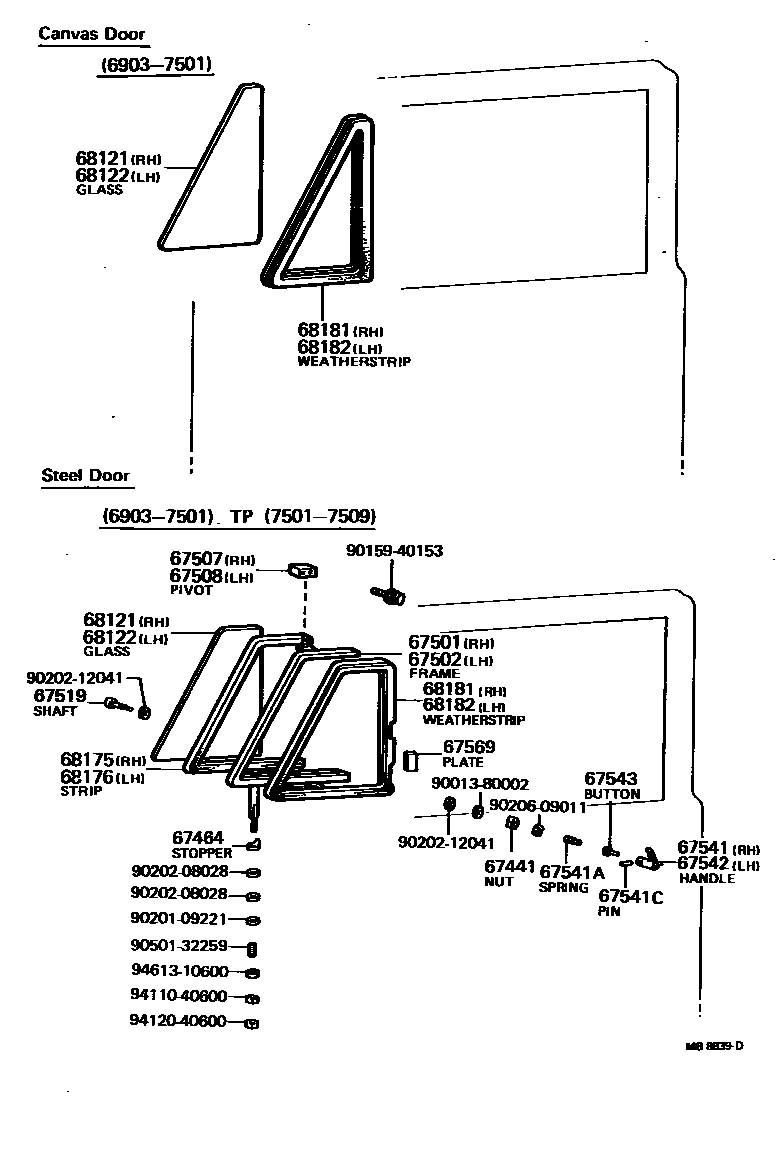

FRONT DOOR VENTILATOR WINDOW

0001 1 0003 1

67441NUT, LOCK HANDLE

main90013-70001×2iFJ4#196903-196908

main90170-12166×2iBJ4#,FJ4#196908-197501

67464STOPPER, FRONT DOOR VENTILATING WINDOW OPENING

main67464-90351×2iFJ55196903-197309

main67559-60010×2iBJ4#,FJ4#..TPC197501-197509

67501FRAME SUB-ASSY, VENT WINDOW GLASS, RH

main67501-60011iFJ4#196903-197205

main67501-90300iBJ4#,FJ4#197205-197501

main67501-90903iFJ55196903-197309

67502FRAME SUB-ASSY, VENT WINDOW GLASS, LH

main67502-60011iFJ4#196903-197205

main67502-90300iBJ4#,FJ4#197205-197501

main67502-90903iFJ55196903-197309

67507PIVOT SUB-ASSY, VENT WINDOW, UPPER RH

main67541-60022iBJ4#,FJ4#196903-197501

main67544-90351iFJ55196903-197309

67508PIVOT SUB-ASSY, VENT WINDOW, UPPER LH

main67541-60022iBJ4#,FJ4#..TPC197501-197509

main67545-90351iFJ55196903-197309

67519SHAFT, VENTILATING WINDOW LOCK HANDLE

main67519-60010×2iFJ4#196903-196908

main67519-60011×2iBJ4#,FJ4#196908-197501

67541HANDLE, VENTILATING WINDOW LOCK, RH

main67541-20021iFJ55196903-197309

main67561-95400iBJ4#,FJ4#196903-197501

67541ASPRING, COMPRESSION(FOR VENTILATING WINDOW LOCK HANDLE)

main90501-05014×2iFJ4#,55196903-197309

67541CPIN, VENTILATING WINDOW LOCK HANDLE

main67563-95400×2iBJ4#,FJ4#196903-197501

main90245-02019×2iFJ55196903-197309

67542HANDLE, VENTILATING WINDOW LOCK, LH

main67542-20021iFJ55196903-197309

main67562-95400iBJ4#,FJ4#196903-197501

67543BUTTON, VENTILATING WINDOW LOCK HANDLE PUSH

main67543-20020×2iFJ55196903-197309

main67564-95400×2iBJ4#,FJ4#196903-197501

67569PLATE,FRONT DOOR VENTILATING WINDOW HANDLE

main67569-60020×2iBJ4#,FJ4#196903-197501

68121GLASS, VENT WINDOW, RH

main68121-60012iBJ4#,FJ4#..TPC197501-197509

main68121-90300iBJ4#,FJ4#..TP196903-197501

FOR CANVAS DOOR

main68121-90351iFJ55196903-197309

68122GLASS, VENT WINDOW, LH

main68121-60012iBJ4#,FJ4#196903-197501

FOR STEEL DOOR

main68121-90300iBJ4#,FJ4#..TP196903-197501

FOR CANVAS DOOR

main68121-90351iFJ55196903-197309

68175WEATHERSTRIP, VENT WINDOW FRAME, RH

main68175-60020iFJ4#196903-197205

main68175-90300iBJ4#,FJ4#197205-197501

main68175-90351iFJ55196903-197309

68176WEATHERSTRIP, VENT WINDOW FRAME, LH

main68175-90300iBJ4#,FJ4#..TPC197501-197509

main68176-60020iFJ4#196903-197205

main68176-90351iFJ55196903-197309

68181WEATHERSTRIP, VENT WINDOW, NO.1 RH

main68175-60010iBJ4#,FJ4#..TP196903-197501

FOR CANVAS DOOR

main68181-60010iBJ4#,FJ4#196903-197501

FOR STEEL DOOR

main68181-90351iFJ55196903-197309

68182WEATHERSTRIP, VENT WINDOW, NO.1 LH

main68176-60010iBJ4#,FJ4#..TP196903-197501

FOR CANVAS DOOR

main68182-60010iBJ4#,FJ4#196903-197501

FOR STEEL DOOR

main68182-90351iFJ55196903-197309

9001380002

main90013-80002

9015940153

main90159-40153

9020109221

main90201-09221

9020208028

main90202-08028

9020212041

main90202-12041

9020609011

main90206-09011

9050132259

main90501-32259

9411040600

main94110-40600

9412040600

main94120-40600

9461310600

main94613-10600

29 parts on this diagram · 2 diagrams in section
