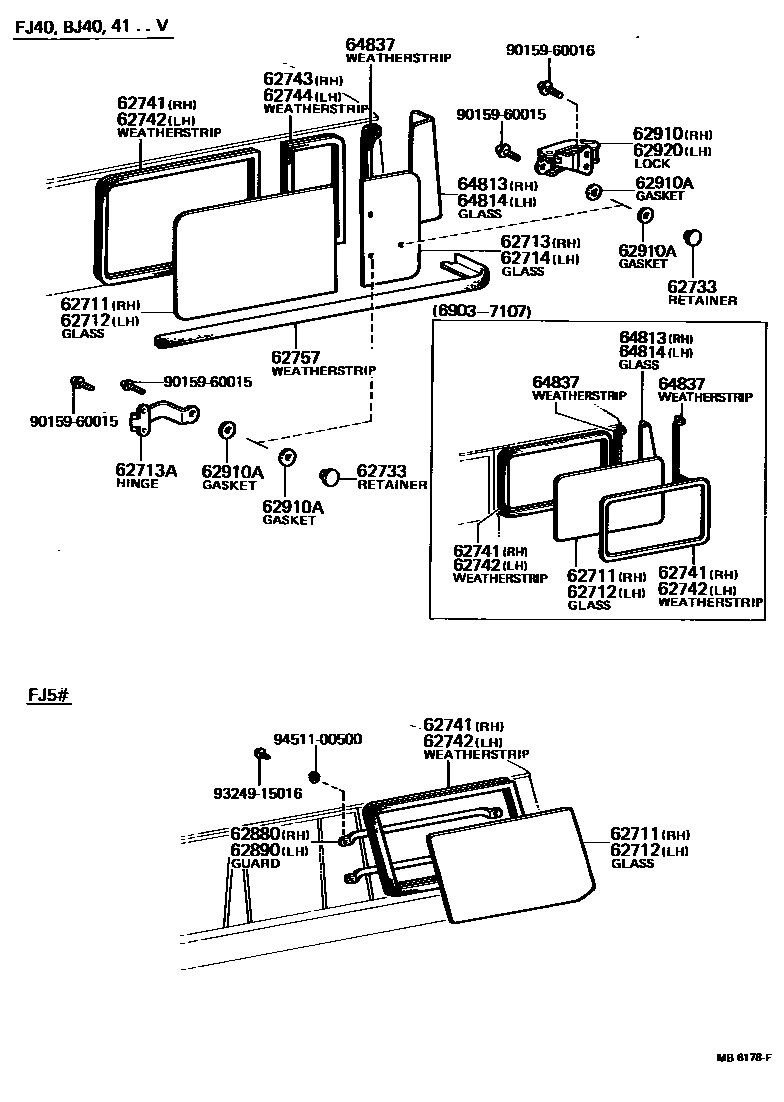

SIDE WINDOW
62711GLASS, QUARTER WINDOW, RH
TP.T=5.0
TN.TP.T=5.0
TP.T=5.0
TN.TP.T=4.0
62712GLASS, QUARTER WINDOW, LH
TP.T=5.0
TN.TP.T=5.0
TP.T=5.0
TN.TP.T=4.0
62713GLASS, QUARTER WINDOW, REAR RH
62713AHINGE ASSY, QUARTER WINDOW, REAR
62714GLASS, QUARTER WINDOW, REAR LH
62733RETAINER, QUARTER OR SIDE WINDOW HINGE
62741WEATHERSTRIP, QUARTER WINDOW, RH
W/MOULDING
W/MOULDING
OUTER
INNER
62742WEATHERSTRIP, QUARTER WINDOW, LH
W/MOULDING
W/MOULDING
OUTER
INNER
62743WEATHERSTRIP, QUARTER WINDOW, REAR RH
62744WEATHERSTRIP, QUARTER WINDOW, REAR LH
62757WEATHERSTRIP, UPPER SIDE PANEL
RH.
RH.
RH.
RH.
RH.
RH.
LH.
LH.
LH.
LH.
LH.
LH.
RH.
LH.
62880GUARD ASSY, REAR QUARTER WINDOW, RH
62890GUARD ASSY, REAR QUARTER WINDOW, LH
62910LOCK ASSY, QUARTER OR SIDE WINDOW, RH
62910AGASKET(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE)
62920LOCK ASSY, QUARTER WINDOW, LH
64813GLASS, BACK WINDOW CORNER, RH
64814GLASS, BACK WINDOW CORNER, LH
64837WEATHERSTRIP, BACK WINDOW CORNER
OUTER
INNER
9015960015
main90159-60015
9015960016
main90159-60016
9324915016
main93249-15016
9451100500
main94511-00500
23 parts on this diagram · 1 diagram in section
