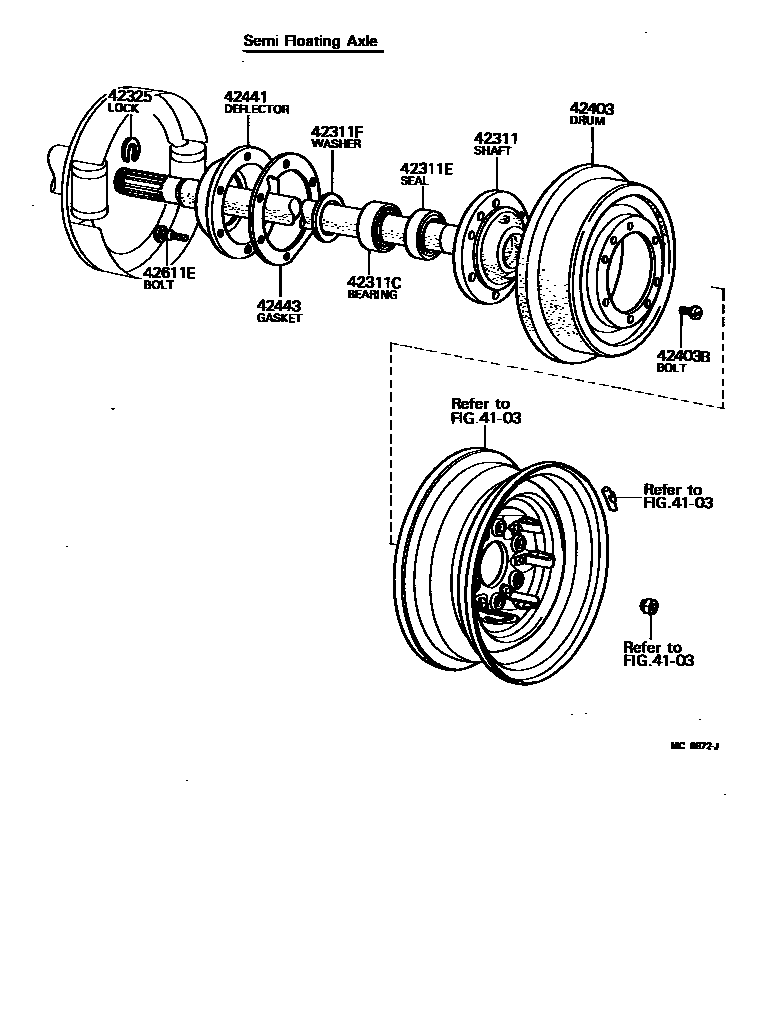

REAR AXLE SHAFT & HUB

0001 1 0002 1

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

42311SHAFT, REAR AXLE

main42311-60021iFJ4#,55196903-197308

FOR RH.

main42311-60022iBJ4#,FJ4#,5#197308-198007

RH.FOR SEMI FLOATING AXLE

main42311-60052iBJ4#,FJ56197909-198007

RH.FOR FULL FLOATING AXLE

main42312-60011iFJ4#,55196903-197308

FOR LH.

main42312-60012iBJ4#,FJ4#,5#197308-198007

LH.FOR SEMI FLOATING AXLE

main42312-60042iBJ4#,FJ56197909-198007

LH.FOR FULL FLOATING AXLE

42311CBEARING(FOR REAR AXLE SHAFT)

main90365-47005×2iFJ4#,55196903-197308

main90365-47013×2iBJ4#,FJ4#,5#197308-198007

42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)

main90310-35001×2iBJ4#,FJ56197909-198007

FOR FULL FLOATING AXLE

main90311-47001×2iBJ4#,FJ4#,5#197411-198007

FOR SEMI FLOATING AXLE

main90311-47029×2iFJ4#,55196903-197308

main90311-47048×2iBJ4#,FJ4#,55197308-197411

42311FWASHER, PLATE(FOR REAR AXLE SHAFT)

main90201-48132×2iFJ4#,55196903-197308

42325LOCK, REAR AXLE SHAFT

main42325-55010×2iBJ4#,FJ4#,5#196903-198007

42403DRUM SUB-ASSY, REAR BRAKE

main43501-60010×2iBJ4#,FJ4#,5#196903-198007

42403BBOLT, SET (FOR REAR BRAKE DRUM SETTING)

main90113-10007×4iBJ4#,FJ4#,5#196903-198007

42441DEFLECTOR, BRAKE DRUM OIL

main42441-30010×2iBJ4#,FJ4#,5#196903-198007

42443GASKET, BRAKE DRUM OIL DEFLECTOR

main42443-55020×2iBJ4#,FJ4#,5#196903-198007

FOR SEMI FLOATING AXLE

main43436-60011×2iBJ4#,FJ56197909-198007

FOR FULL FLOATING AXLE

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02014×12iBJ4#,FJ4#,5#196903-198007

11 parts on this diagram · 2 diagrams in section
