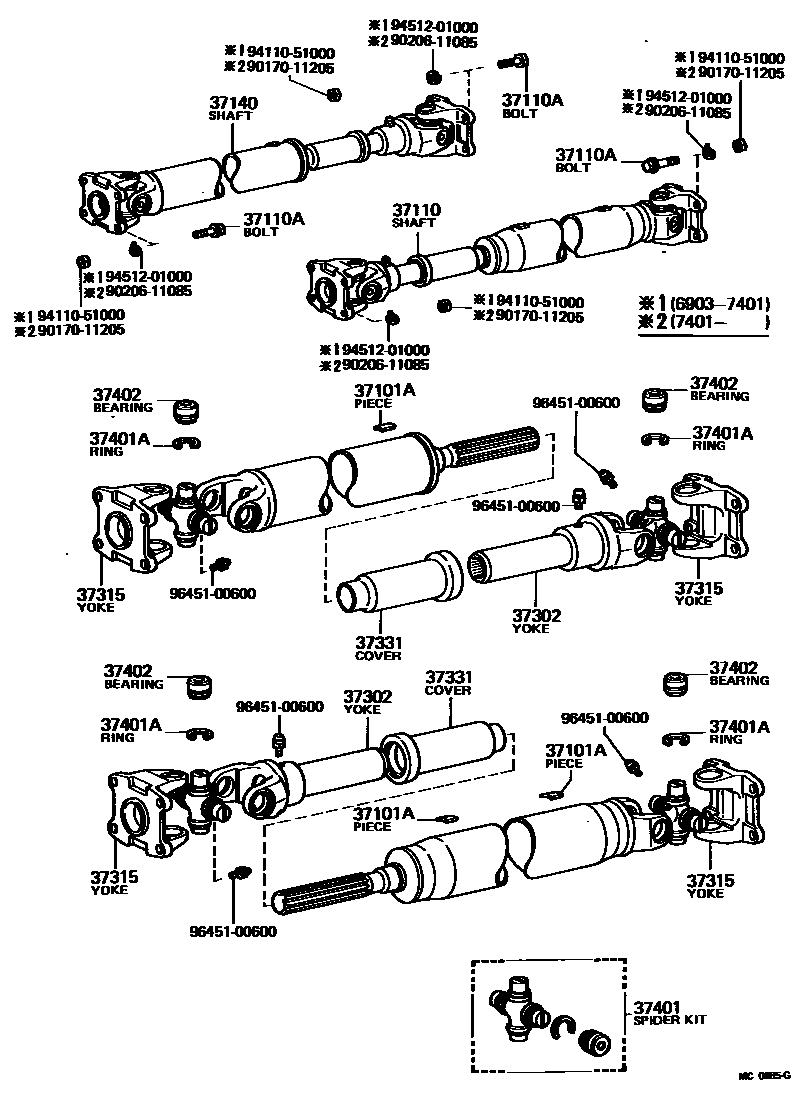

PROPELLER SHAFT & UNIVERSAL JOINT

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01003iFJ4#,55197306-197401

main90937-01004iFJ4#,55197306-197401

main90937-01005iFJ4#,55197306-197401

main90937-01010iFJ4#,55196903-197306

10G.

main90937-01011iFJ4#,55196903-197306

20G.

main90937-01012iFJ4#,55196903-197306

30G.

main90937-01022iFJ4#,55196903-197306

main90937-01029iFJ4#,55197306-197401

5G.

main90937-01030iFJ4#,55197306-197401

15G.

main90937-01031iFJ4#,55197306-197401

25G.

main90937-01132iBJ4#,FJ4#,5#197401-198007

main90937-01136iBJ4#,FJ4#,5#197306-198007

main90937-01140iBJ4#,FJ4#,5#197401-198007

main90937-01147iBJ4#,FJ4#,5#197401-198007

main90937-01148iBJ4#,FJ4#,5#197306-198007

main90937-01149iBJ4#,FJ4#,5#197401-198007

main90937-01150iBJ4#,FJ4#,5#197306-198007

main90937-01151iBJ4#,FJ4#,5#197306-198007

main90937-01152iBJ4#,FJ4#,5#197401-198007

main90937-01153iBJ4#,FJ4#,5#197306-198007

main90937-01154iBJ4#,FJ4#,5#197401-198007

main90937-01155iBJ4#,FJ4#,5#197401-198007

main90937-01156iBJ4#,FJ4#,5#197306-198007

main90937-01157iBJ4#,FJ4#,5#197401-198007

main90937-01158iBJ4#,FJ4#,5#197306-198007

37110SHAFT ASSY, PROPELLER

main37110-36180iFJ5#197401-197710

FOR 4-SPEED TRANSMISSION

main37110-60012iFJ40196903-197303

FOR 3-SPEED TRANSMISSION

main37110-60013iFJ40197303-197401

FOR 3-SPEED TRANSMISSION

main37110-60022iFJ43196903-197303

FOR 3-SPEED TRANSMISSION

main37110-60023iFJ43197303-197401

FOR 3-SPEED TRANSMISSION

main37110-60041iFJ55196903-197303

FOR 3-SPEED TRANSMISSION

main37110-60042iFJ55197303-197401

FOR 4-SPEED TRANSMISSION

main37110-60051iFJ55196903-197303

FOR 4-SPEED TRANSMISSION

main37110-60052iFJ55197303-197401

FOR 4-SPEED TRANSMISSION

main37110-60080iFJ40197209-197303

FOR 4-SPEED TRANSMISSION

main37110-60081iFJ40197303-197401

FOR 4-SPEED TRANSMISSION

main37110-60090iFJ43197209-197303

FOR 4-SPEED TRANSMISSION

main37110-60091iFJ43197303-197401

FOR 4-SPEED TRANSMISSION

main37110-60100iFJ40197401-197501

FOR 3-SPEED TRANSMISSION

main37110-60110iFJ43197401-197501

FOR 3-SPEED TRANSMISSION

main37110-60130iFJ55197401-197501

FOR 3-SPEED TRANSMISSION

main37110-60150iBJ40,FJ40197401-197710

FOR 4-SPEED TRANSMISSION

main37110-60160iBJ43,FJ43197401-197710

FOR 4-SPEED TRANSMISSION

main37110-60210iFJ56197710-198007

main37110-60220iBJ40,41197710-198007

main37110-60230iBJ43,44197710-198007

37110ABOLT (FOR PROPELLER SHAFT)

main90101-10264×12iFJ4#,55196903-197401

main90101-11468×12iBJ4#,FJ4#,5#197401-198007

37140SHAFT ASSY, PROPELLER, FRONT

main37140-60012iFJ4#196903-197303

FOR 3-SPEED TRANSMISSION

main37140-60013iFJ4#197303-197401

FOR 3-SPEED TRANSMISSION

main37140-60021iFJ55196903-197303

FOR 3-SPEED TRANSMISSION

main37140-60022iFJ55197303-197401

FOR 3-SPEED TRANSMISSION

main37140-60031iFJ55196903-197303

FOR 4-SPEED TRANSMISSION

main37140-60032iFJ55197303-197401

FOR 4-SPEED TRANSMISSION

main37140-60040iFJ4#197209-197303

FOR 4-SPEED TRANSMISSION

main37140-60041iFJ4#197303-197401

FOR 4-SPEED TRANSMISSION

main37140-60060iFJ4#197401-197501

FOR 3-SPEED TRANSMISSION

main37140-60070iFJ55197401-197501

FOR 3-SPEED TRANSMISSION

main37140-60090iBJ4#,FJ4#197401-198007

FOR 4-SPEED TRANSMISSION

main37140-60100iFJ5#197401-198007

FOR 4-SPEED TRANSMISSION

37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE

main37302-36010×2iBJ4#,FJ4#197401-198007

main37302-60011×2iFJ4#196903-197401

FOR 3-SPEED TRANSMISSION

main37302-60020×2iFJ55196903-197401

main37302-60030×2iFJ5#197401-198007

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-36010×4iBJ4#,FJ4#197401-198007

main37315-60011×4iFJ4#196903-197401

FOR 3-SPEED TRANSMISSION

main37315-60021×4iFJ55196903-197401

main37315-60030×4iFJ5#197401-198007

37331COVER, SLIDING SHAFT DUST

main37305-25010×2iBJ4#,FJ4#,5#196903-198007

37401SPIDER KIT, UNIVERSAL JOINT

main04371-36010×4iFJ4#,55197303-197401

main04371-36020×4iBJ4#,FJ4#,55197401-197410

main04371-36021×4iBJ4#,FJ4#,5#197410-198007

main04371-60010×4iFJ4#,55196903-197303

37401ARING, HOLE SNAP (FOR SPIDER BEARING)

main90520-29286×16iBJ4#,FJ4#,5#197401-198007

main90520-29287×16iBJ4#,FJ4#,5#197401-198007

main90520-29288×16iBJ4#,FJ4#,5#197401-198007

main90521-31038×16iFJ4#,55196903-197401

T=1.375-1.425

main90521-31039×16iFJ4#,55196903-197401

T=1.425-1.475

main90521-31040×16iFJ4#,55196903-197401

T=1.475-1.525

main90521-31041×16iFJ4#,55196903-197401

T=1.525-1.575

37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

main37402-36040×16iFJ4#,55197303-197401

OVER SIZE

main37402-36060×16iBJ4#,FJ4#,5#197401-198007

OVER SIZE

main37402-60040×16iFJ4#,55196903-197303

OVER SIZE

9017011205

main90170-11205

9020611085

main90206-11085

9411051000

main94110-51000

9451201000

main94512-01000

9645100600

main96451-00600

15 parts on this diagram · 1 diagram in section
