FUEL PIPE & CLAMP

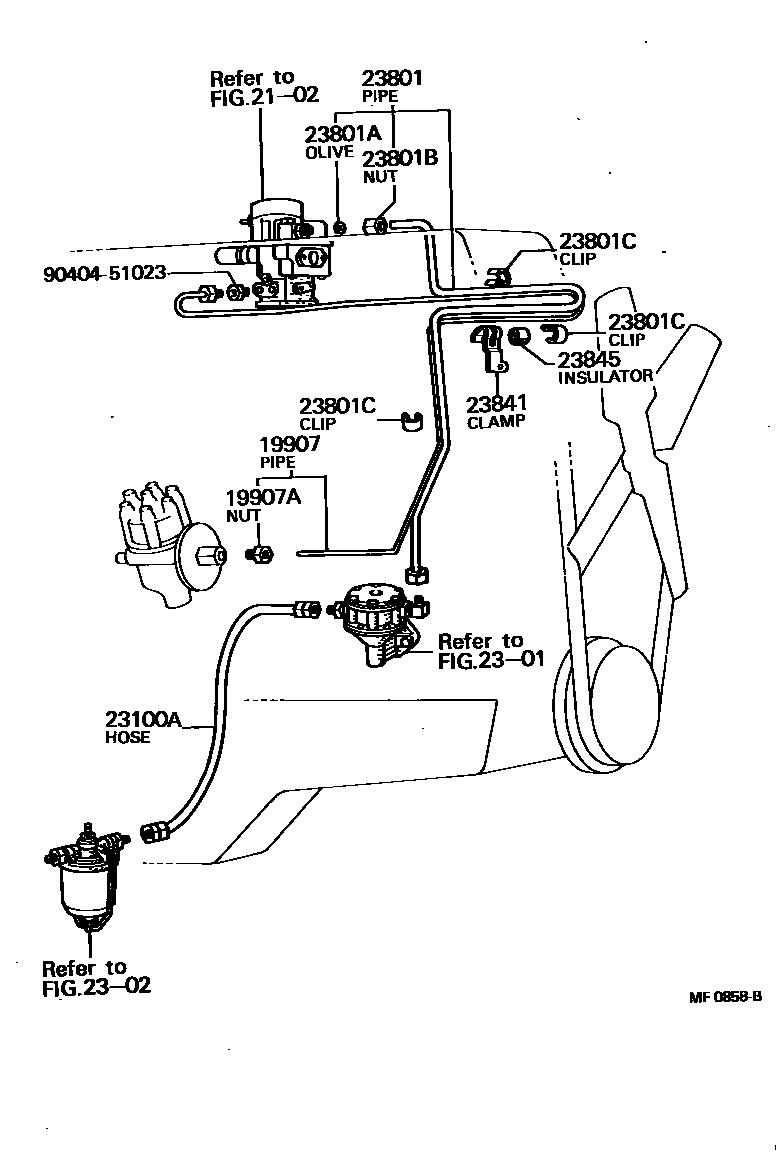

Parts diagram

19907HOSE, VACUUM, NO.1

main19907-60070i196903-196909

main19907-60090i196903-196909

main90445-07479i196909-197309

main90445-07975i197501-197601

main95411-19995i197601-197902

H,L=750

19907ANUT, UNION(FOR VACUUM HOSE SETTING)

main90402-08021×2i196903-196909

2102CARBURETOR ASSEMBLY

→ Go to FIG 21-02

2301FUEL PUMP & PIPE

→ Go to FIG 23-01

2302FUEL FILTER

→ Go to FIG 23-02

23100AHOSE, FUEL

main23820-61040i197902-198007

main90923-01019i196903-196911

main90923-01124i196911-197110

main95323-07026i197110-197209

main95331-08024i197209-197509

L=240

main95331-08028i197309-197509

L=280

main95331-08032i197209-197309

L=320

main95332-08038i197708-197902

L=380

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23801-60100i196903-196909

main23801-60140i196909-197209

main23801-60141i197209-197302

main23801-60142i197302-197509

main23801-60150i197010-197209

W/COOLER

main23801-60151i197209-197302

W/COOLER

main23801-60152i197302-197501

W/COOLER

main23801-61010i197501-197702

main23801-61020i197509-197702

W/COOLER

main23811-61010i197702-197709

main23811-61011i197709-197902

main23811-61020i197702-197709

W/COOLER

main23811-61030i197902-197912

main23811-61031i197912-198007

23801AOLIVE(FOR FUEL PIPE)

main96395-71400×4i196903-198007

23801BNUT, UNION(FOR FUEL PIPE)

main90402-13041×4i196903-198007

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main90468-05005×3i196903-196909

main90468-05025×3i196909-197902

main96132-30800×2i197902-198007

23841CLAMP, FUEL PIPE(HOSE), NO.1

main23841-60020i196903-197209

main23841-60021i197209-197302

main23841-60022i197302-197309

main23841-60040i197309-197509

main23841-61010i197501-197902

main23841-61020i197902-197912

main23841-61021i197912-198007

23845INSULATOR, FUEL PIPE

main23845-20010i196903-197302

9040451023

main90404-51023

13 parts on this diagram · 5 diagrams in section
