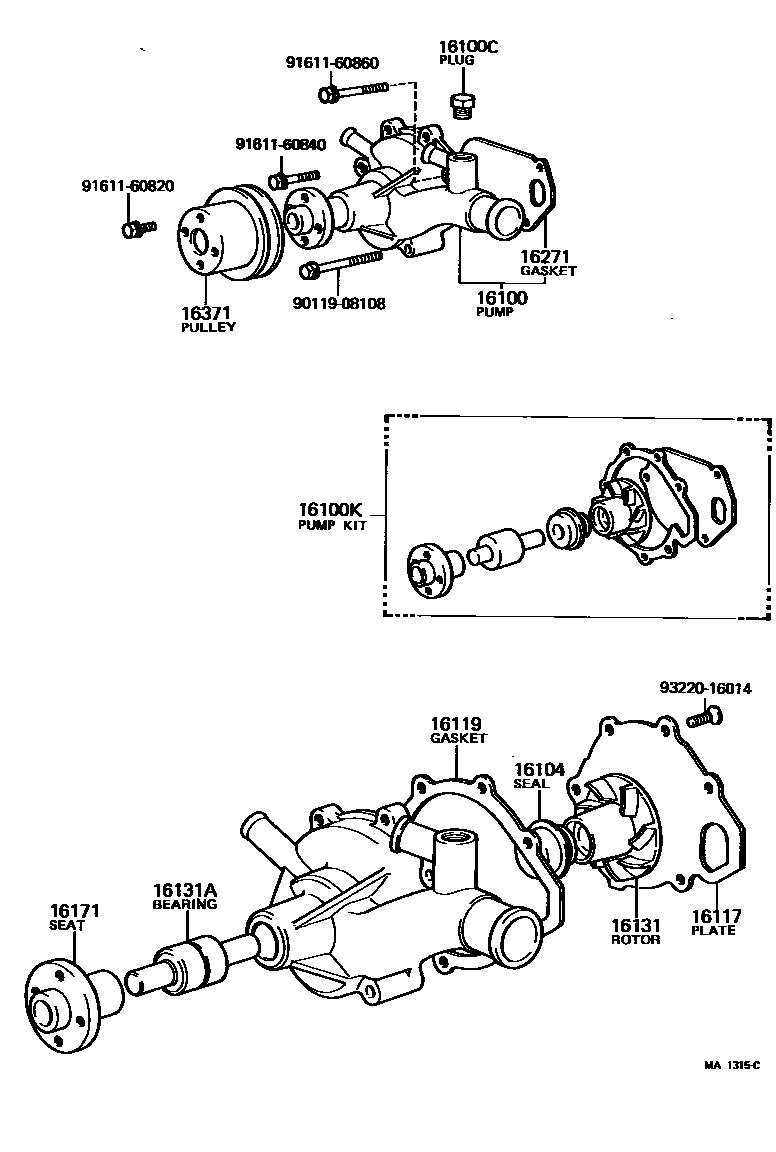

WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1

16100PUMP ASSY, ENGINE WATER

main16100-59016iB..BJ4#197402-197706

main16100-59017iB..BJ4#197706-197709

main16100-59035iB,2B..BJ4#197709-198007

main16100-60080iF..FJ4#,55196903-197509

main16100-61011i2F..FJ56197501-197508

main16100-61012i2F..FJ56197508-197902

main16100-61041i2F..FJ56197509-197902

W/OIL COOLER

main16100-61071i2F..FJ56197902-198007

main16100-61081i2F..FJ56197902-198007

W/OIL COOLER

main16100-61120i2F..FJ56197902-198007

W/COOLER

main16100-61130i2F..FJ56197902-198007

W/COOLER & OIL COOLER

16100CPLUG, W/HEAD TAPER SCREW

main90345-54021iB..BJ4#197402-197709

L/HEATER

16100KPUMP KIT, WATER

main04161-56010iB..BJ4#197402-197709

main04161-56030iB,2B..BJ4#197709-198007

main04161-60090iF..FJ4#,55196903-197509

main04161-61010i2F..FJ56197501-197508

main04161-61011i2F..FJ56197508-197902

16104SEAL SET, WATER PUMP

main16104-41110i2B..BJ4#197912-198007

main16104-41111i2F..FJ56197912-198007

main16104-46011iB..BJ4#197402-197709

main16104-60080iF..FJ4#,55196903-197509

16117PLATE, WATER PUMP

main16117-56010iB,2B..BJ4#197402-198007

main16117-60010iF..FJ4#,55196903-197509

main16117-61011i2F..FJ56197501-197508

main16117-61012i2F..FJ56197508-198007

16119GASKET, WATER PUMP BODY

main16119-56010iB,2B..BJ4#197402-198007

16131ROTOR, WATER PUMP

main16131-56010iB..BJ4#197402-197709

main16131-56020iB,2B..BJ4#197709-198007

main16131-60080iF..FJ4#,55196903-197509

main16131-61011i2F..FJ56197501-197902

main16131-61071i2F..FJ56197902-198007

16131ABEARING, WATER PUMP

main90369-30005iB,2B..BJ4#197709-198007

main90369-30008iF..FJ4#,55196903-197509

885141CF

main90369-30015iB..BJ4#197402-197709

WPB16118RS

main90369-30028i2F..FJ56197501-197902

WPB16112-2RS

main90369-35007i2F..FJ56197902-198007

16171SEAT, WATER PUMP PULLEY

main16171-38022iB,2B..BJ4#197709-198007

main16171-56010iB..BJ4#197402-197501

main16171-60080iF..FJ4#,55196903-197509

main16171-61071i2F..FJ56197902-198007

16271GASKET, WATER PUMP

main16271-56010iB..BJ4#197402-197709

main16271-56012iB,2B..BJ4#197709-198007

main16271-60010iF..FJ4#,55196903-197509

main16271-60011i2F..FJ56197501-198007

16371PULLEY, FAN

main16173-56020iB,2B..BJ4#197709-198007

main16173-61070i2F..FJ56197902-198007

main16371-56010iB..BJ4#197402-197709

main16371-60070iF..FJ4#,55196903-197309

main16371-60080iF..FJ4#,55197309-197509

main16371-61010i2F..FJ56197501-197902

9011908108

main90119-08108

9161160820

main91611-60820

9161160840

main91611-60840

9161160860

main91611-60860

9322016014

main93220-16014

16 parts on this diagram · 5 diagrams in section
