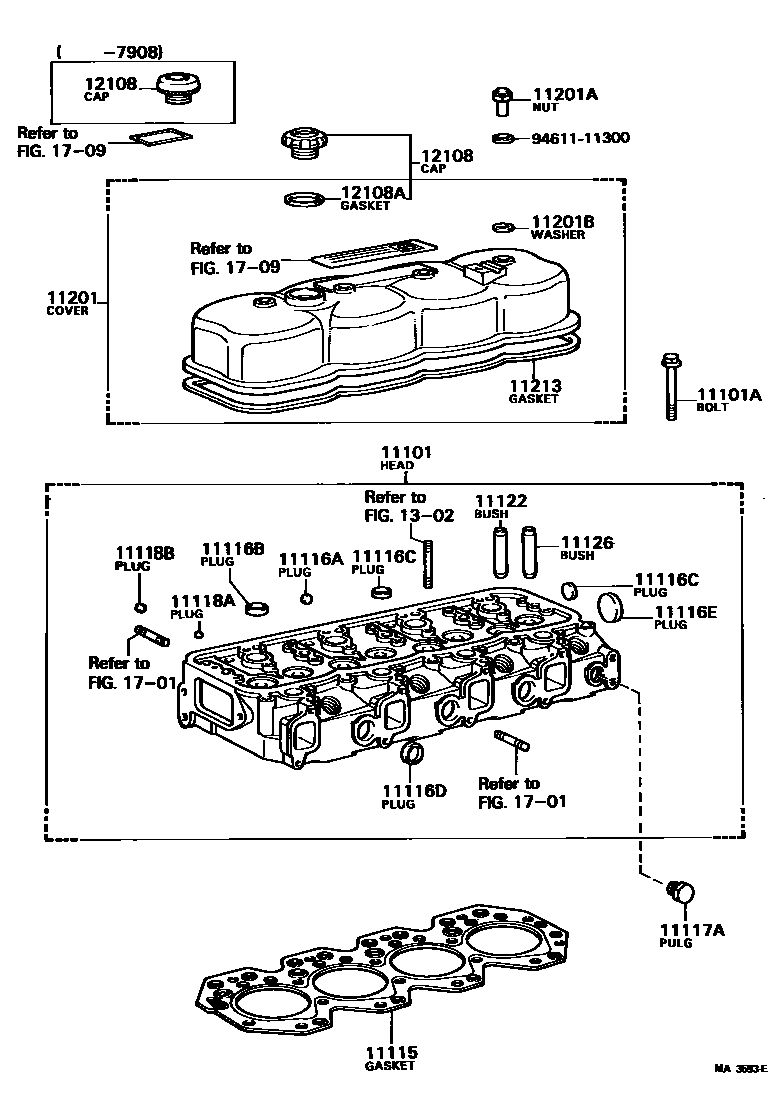

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
13-1.75PX122-27
12-1.25PX119-25
13-1.75PX122-27
13-1.75PX145-27
11115GASKET, CYLINDER HEAD
11116APLUG, TIGHT, NO.1
OD=10
OD=10.5
OD=50
OD=50
11116BPLUG, TIGHT, NO.2
OD=25
OD=25
OD=25
11116CPLUG, TIGHT, NO.3
OD=21
OD=21
11116DPLUG, TIGHT, NO.4
OD=28
11116EPLUG, TIGHT, NO.5
OD=40
11117APLUG, W/HEAD TAPER SCREW, NO.1
11118APLUG, STRAIGHT, NO.1
L=5.5,OD=6.7
L=5.5,OD=7.3
L=5.5,OD=6.7
L=3.5,OD=6.7
11118BPLUG, STRAIGHT, NO.2
L=8,OD=11.25
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11201COVER SUB-ASSY, CYLINDER HEAD
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
1302CAMSHAFT & VALVE
1701MANIFOLD
1709CAUTION PLATE & NAME PLATE (ENGINE)
9461111300
main94611-11300
23 parts on this diagram · 3 diagrams in section
