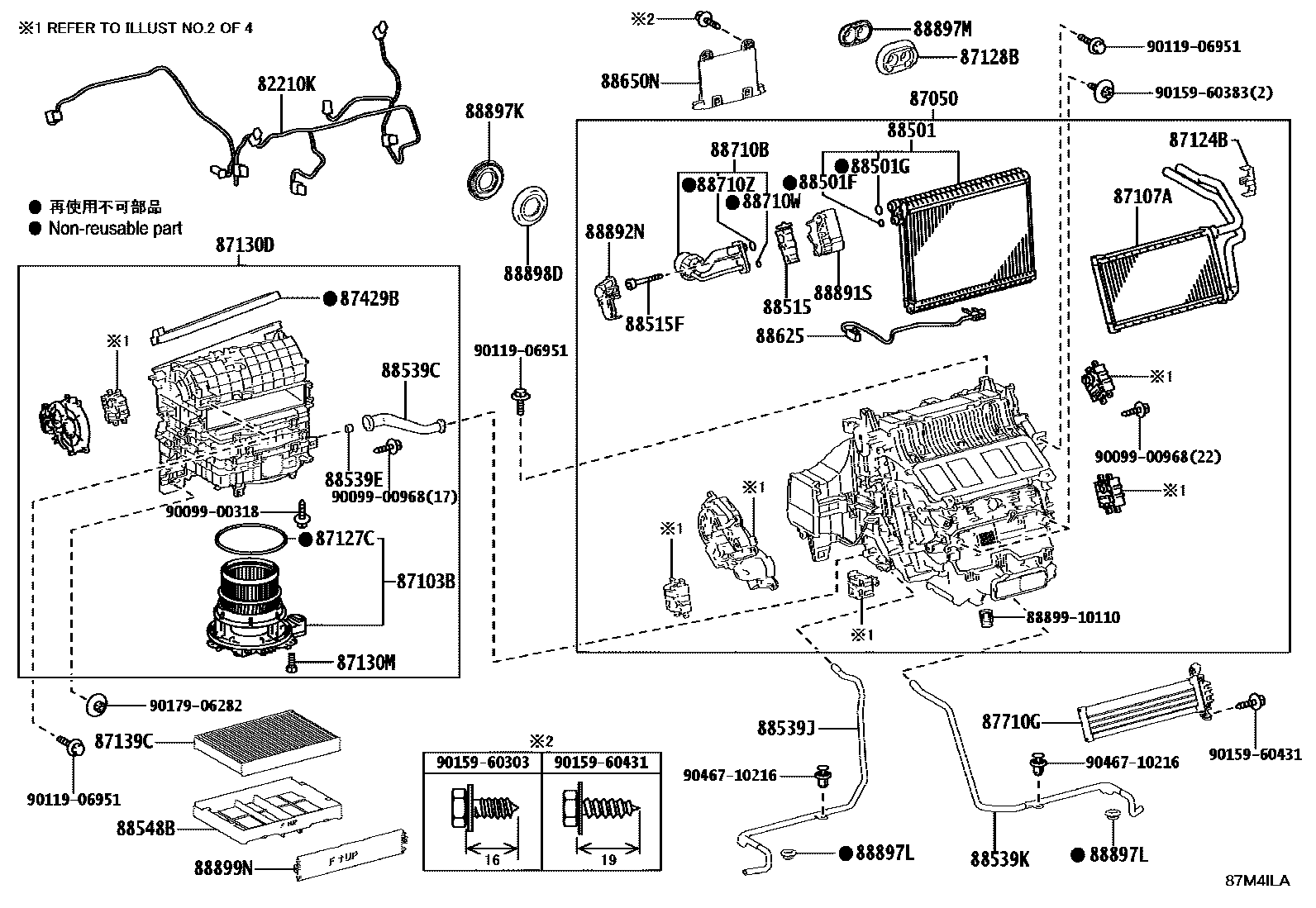

HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
87050RADIATOR ASSY, AIR CONDITIONER
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87107AUNIT SUB-ASSY, HEATER RADIATOR
87124BCLAMP, HEATER
87127CPACKING, BLOWER MOTOR SUB-ASSY, NO.1
87128BGROMMET, HEATER, NO.2
87130DBLOWER ASSY
87130MSCREW(FOR BLOWER)
87139CFILTER, CLEAN AIR
87429BPACKING, COOLER UNIT, NO.1
87710GQUICK HEATER ASSY
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)
88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)
88515VALVE, COOLER EXPANSION
88515FBOLT(FOR COOLER EXPANSION VALVE)
88539CHOSE, COOLER UNIT DRAIN, NO.2
88539EHOSE, COOLER UNIT DRAIN, NO.3
88539JHOSE, DRAIN COOLER
88539KHOSE, DRAIN COOLER
88548BCASE, AIR FILTER
88625THERMISTOR, COOLER, NO.1
88650NAMPLIFIER ASSY, AIR CONDITIONER
88710BTUBE ASSY, AIR CONDITIONER
88710WRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88710ZRING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88891SCOVER, COOLER, NO.1
88892NCOVER, COOLER, NO.2
88897KGROMMET, (FOR COOLER PIPE)
88897LGROMMET (FOR DRAIN HOSE)
88897MGROMMET (FOR HEATER PIPE)
88898DGROMMET
88899NPLATE, COVER
8889910110COVER, EVAPORATOR
main88899-10110
9009900318
main90099-00318
9009900968
main90099-00968
9011906951
main90119-06951
9015960303
main90159-60303
9015960383
main90159-60383
9015960431
main90159-60431
9017906282
main90179-06282
9046710216
main90467-10216
43 parts on this diagram · 4 diagrams in section
