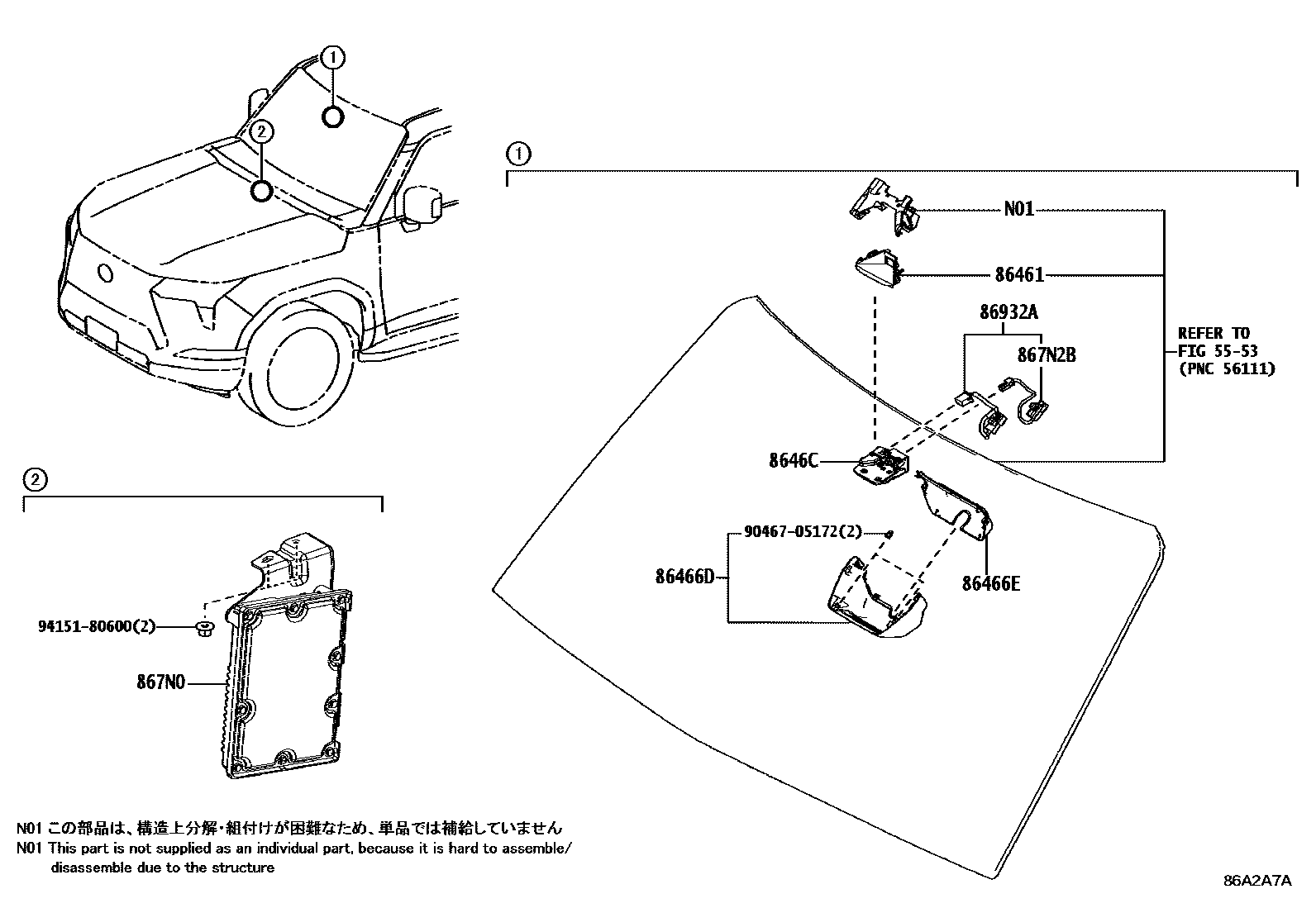

PRE-COLLISION SYSTEM

5553COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-53

86461HOOD, FORWARD RECOGNITION

main86461-60080iVJA252202405

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-60150iVJA252202405

86466ECOVER, FORWARD RECOGNITION, NO.2

main86467-60020iVJA252202405

8646CCAMERA, FORWARD RECOGNITION

main8646C-60200supersedes 8646C-60190iVJA252202405

867N0COMPUTER ASSY, DRIVE RECORDER

main867N0-60010iVJA252202405

main867N0-60020iVJA252202405

867N2BWIRE, DRIVE RECORDER, NO.1

main867N2-60100iVJA252202405

86932AWIRE, FORWARD RECOGNITION CAMERA

main86932-60040supersedes 86932-60030iVJA252202405

9046705172

main90467-05172

9415180600

main94151-80600

10 parts on this diagram · 1 diagram in section
