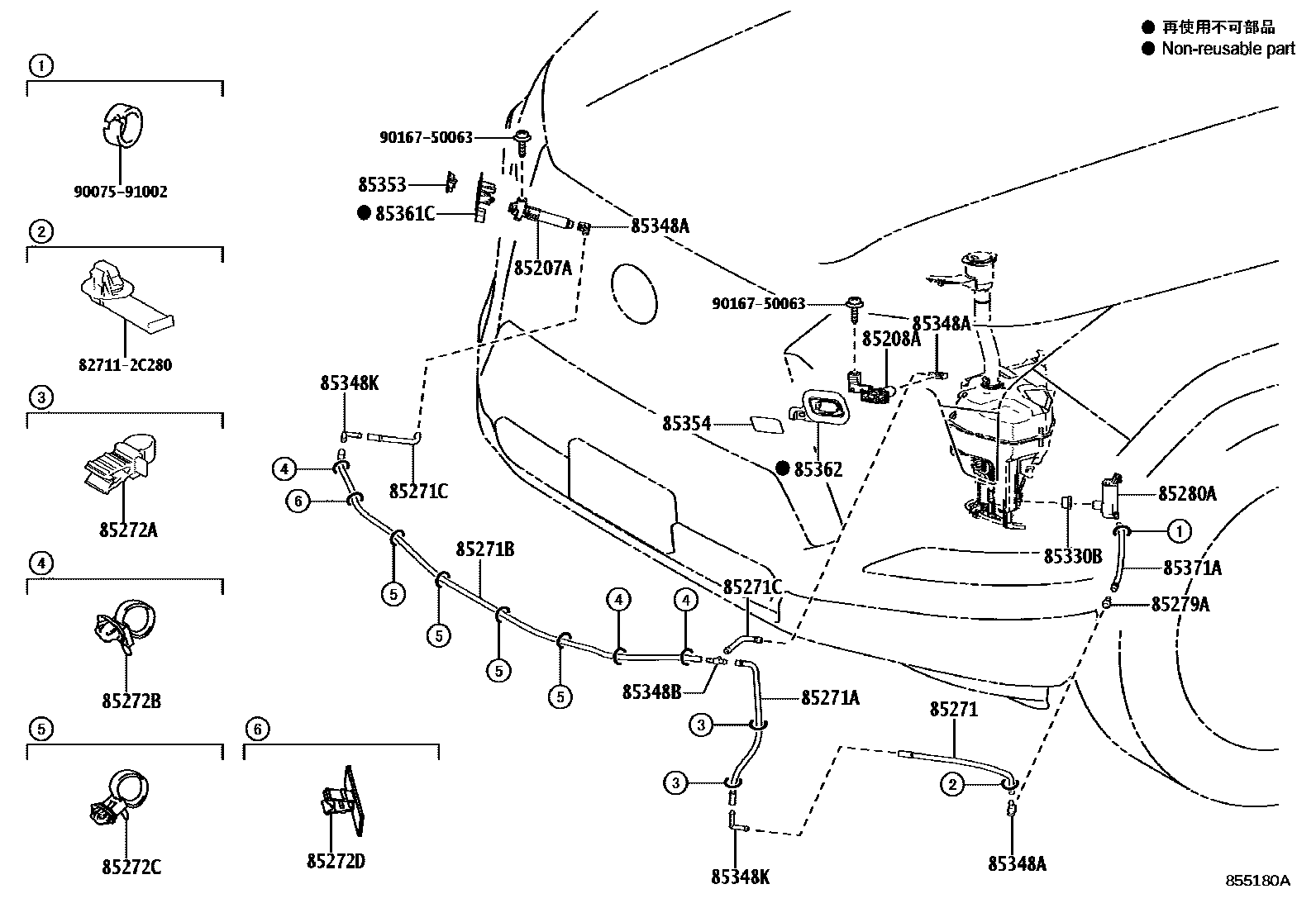

HEADLAMP CLEANER
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85271HOSE, HEADLAMP CLEANER, NO.1
85271AHOSE, HEADLAMP CLEANER, NO.2
85271BHOSE, HEADLAMP CLEANER, NO.3
85271CHOSE, HEADLAMP CLEANER, NO.4
85272ACLAMP, HEADLAMP CLEANER, NO.1
85272BCLAMP, HEADLAMP CLEANER, NO.2
85272CCLAMP, HEADLAMP CLEANER, NO.3
85272DCLAMP, HEADLAMP CLEANER, NO.4
85279AJOINT, HEADLAMP CLEANER HOSE
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85330BBUSH, HEADLAMP CLEANER WASHER JAR
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
85353COVER, HEADLAMP WASHER, RH
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
SONIC TITANIUM,1J7 ,M06
TITANIUM CARBIDE GRAY,1L8 ,M07
GRAPHITE BLACK GF.,223
MOON DESERT,M08
TERRANE KHAKI M.M.,6X4 ,M09
DEEP BLUE MC.,8X5
85354COVER, HEADLAMP WASHER, LH
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
SONIC TITANIUM,1J7 ,M06
TITANIUM CARBIDE GRAY,1L8 ,M07
GRAPHITE BLACK GF.,223
MOON DESERT,M08
TERRANE KHAKI M.M.,6X4 ,M09
DEEP BLUE MC.,8X5
85361CBRACKET, WASHER
85362BRACKET, WASHER, NO.2
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
827112C280WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2C280
9007591002
main90075-91002
9016750063
main90167-50063
24 parts on this diagram · 1 diagram in section
