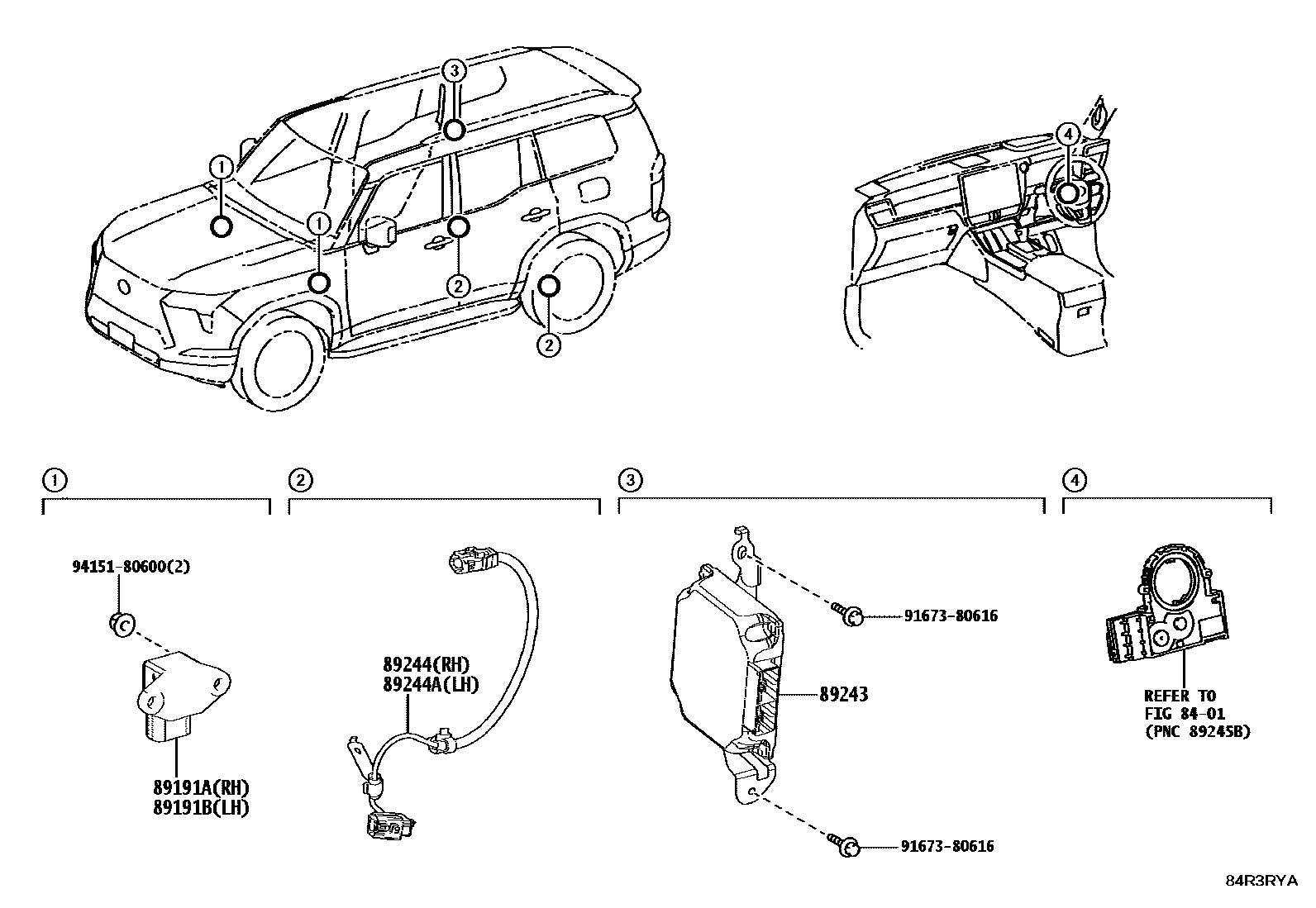

ELECTRONIC MODULATED SUSPENSION

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89191ASENSOR, ACCELERATION

main89191-22020iVJA252202405

89191BSENSOR, ACCELERATION, NO.2

main89191-22020iVJA252202405

89243COMPUTER, ABSORBER CONTROL

main89243-60070iVJA252202405-202411

main89243-60071iVJA252202411

89244WIRE, ABSORBER CONTROL, REAR

main89244-60010iVJA252202405

89244AWIRE, ABSORBER CONTROL, REAR LH

main89244-60020iVJA252202405

9167380616

main91673-80616

9415180600

main94151-80600

8 parts on this diagram · 1 diagram in section
