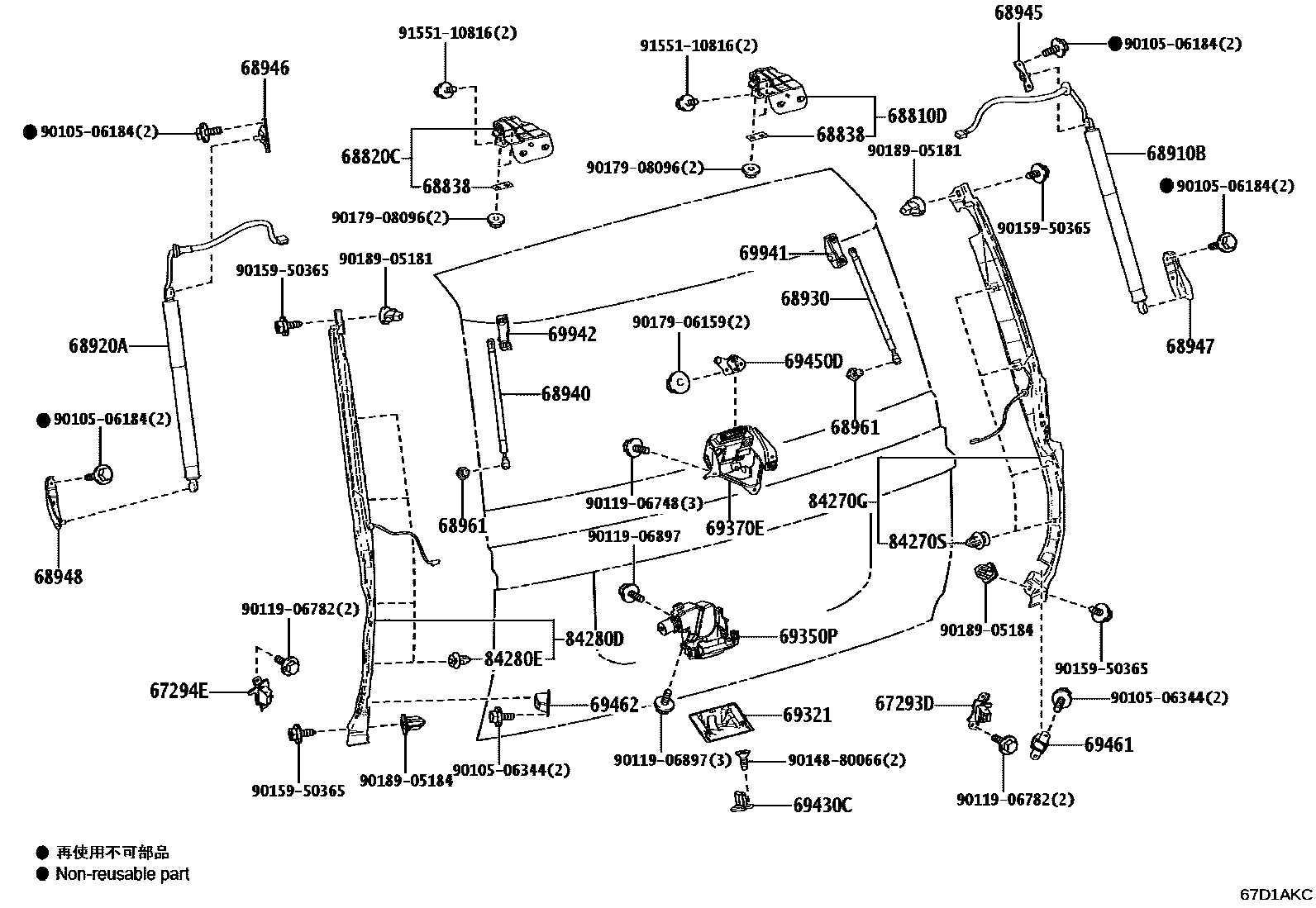

BACK DOOR LOCK & HINGE
67293DCUSHION, BACK DOOR STOPPER, RH
67294ECUSHION, BACK DOOR STOPPER, LH
68810DHINGE ASSY, BACK DOOR, RH
68820CHINGE ASSY, BACK DOOR, LH
68838PAD, BACK DOOR HINGE, NO.1
68910BUNIT ASSY, POWER BACK DOOR, RH
68920AUNIT ASSY, POWER BACK DOOR, LH
68930STAY ASSY, BACK WINDOW, RH
68940STAY ASSY, BACK WINDOW, LH
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68961BOLT, BACK DOOR STAY
69321COVER, BACK DOOR LOCK
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69370ELOCK ASSY, BACK WINDOW
69430CSTRIKER ASSY, BACK DOOR LOCK
69450DSTRIKER ASSY, BACK WINDOW LOCK
69461STOPPER, BACK DOOR SIDE MALE, RH
69462STOPPER, BACK DOOR SIDE MALE, LH
69941BRACKT, BACK DOOR GLASS GUIDE, UPPER RH
69942BRACKT, BACK DOOR GLASS GUIDE, UPPER LH
84270GSENSOR ASSY, POWER BACK DOOR, RH
84270SCLIP(POWER BACK DOOR SENSOR, RH)
84280DSENSOR ASSY, POWER BACK DOOR, LH
84280ECLIP (FOR POWER BACK DOOR SENSOR, LH)
9010506184
main90105-06184
9010506344
main90105-06344
9011906748
main90119-06748
9011906782
main90119-06782
9011906897
main90119-06897
9014880066
main90148-80066
9015950365
main90159-50365
9017906159
main90179-06159
9017908096
main90179-08096
9018905181
main90189-05181
9018905184
main90189-05184
9155110816
main91551-10816
39 parts on this diagram · 1 diagram in section
