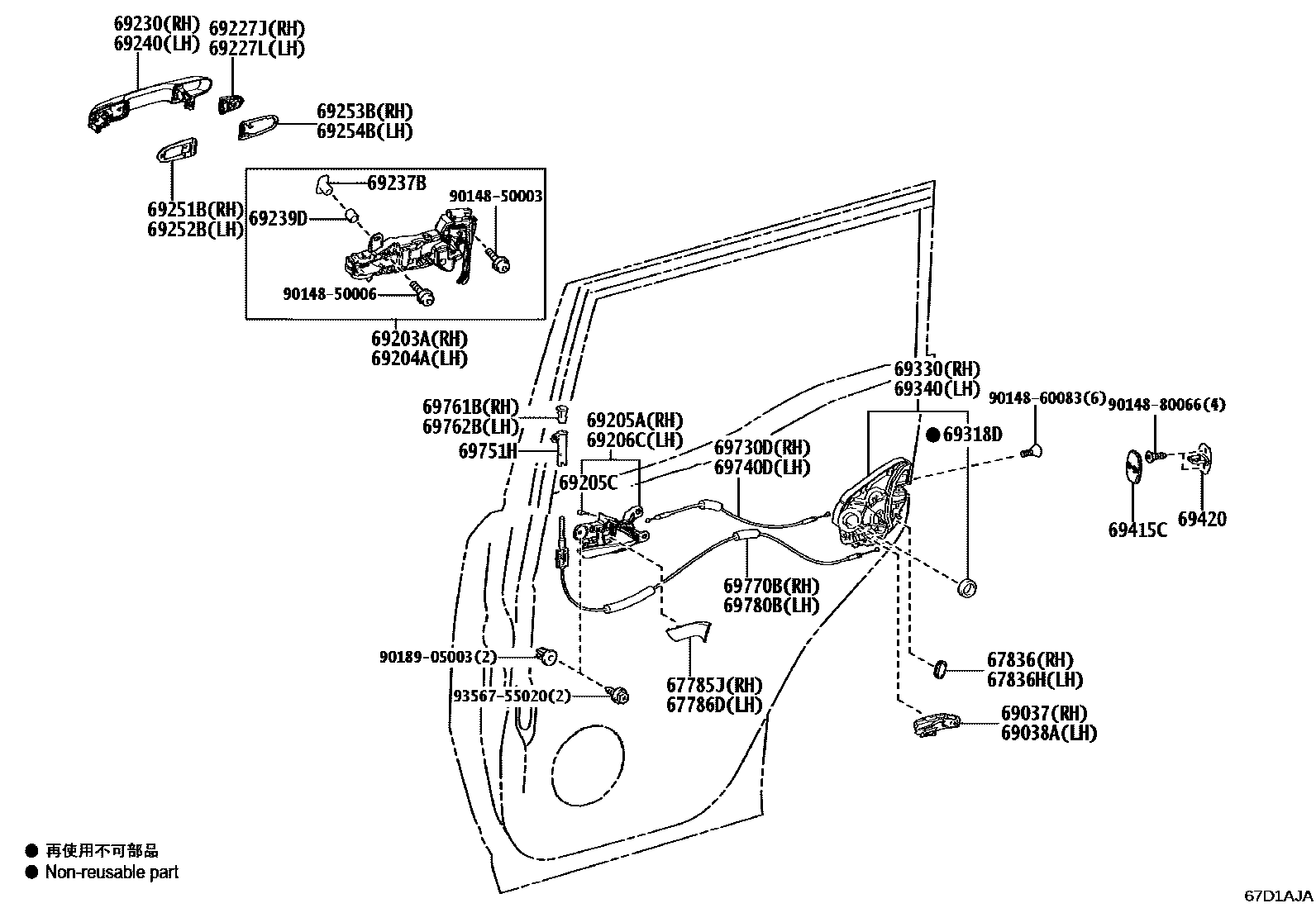

REAR DOOR LOCK & HANDLE
67785JCOVER, REAR DOOR TRIM, UPPER RH
BLACK,TRIM1#,2#,4#
67786DCOVER, REAR DOOR TRIM, UPPER LH
BLACK,TRIM1#,2#,4#
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
SONIC TITANIUM,1J7
TITANIUM CARBIDE GRAY,1L8
BLACK,085 ,1J7 ,1L8 ,223 ,6X4 ,M06 ,M07 ,M08 ,M09
GRAPHITE BLACK GF.,223
TERRANE KHAKI M.M.,6X4
DEEP BLUE MC.,8X5
69237BNUT, REAR DOOR HANDLE
69239DBUSH, REAR DOOR HANDLE
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
SONIC TITANIUM,1J7
TITANIUM CARBIDE GRAY,1L8
BLACK,085 ,1J7 ,1L8 ,223 ,6X4 ,M06 ,M07 ,M08 ,M09
GRAPHITE BLACK GF.,223
TERRANE KHAKI M.M.,6X4
DEEP BLUE MC.,8X5
69251BPAD, REAR DOOR OUTSIDE HANDLE, NO.1 RH
69252BPAD, REAR DOOR OUTSIDE HANDLE, NO.1 LH
69253BPAD, REAR DOOR OUTSIDE HANDLE, NO.2 RH
69254BPAD, REAR DOOR OUTSIDE HANDLE, NO.2 LH
69318DSEAL, DOOR LOCK WIRING HARNESS
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69415CCOVER, DOOR LOCK STRIKER, REAR
69420PLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69751HHOLDER, REAR DOOR LOCK CONTRAL KNOB
69761BBEZEL, REAR DOOR LOCK CONTROL KNOB, RH
69762BBEZEL, REAR DOOR LOCK CONTROL KNOB, LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
9014850003
main90148-50003
9014850006
main90148-50006
9014860083
main90148-60083
9014880066
main90148-80066
9018905003
main90189-05003
9356755020
main93567-55020
39 parts on this diagram · 1 diagram in section
