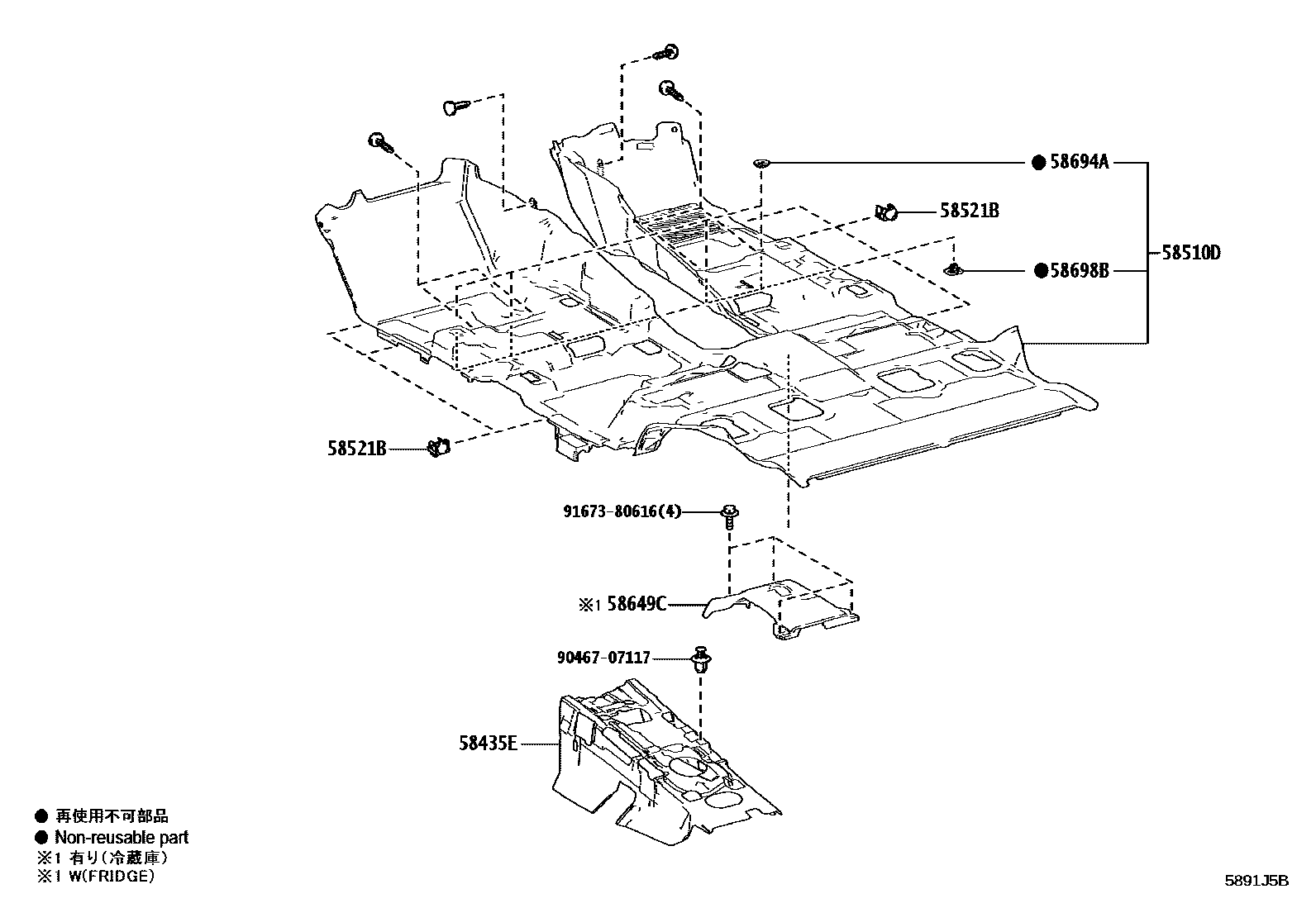

FLOOR MAT & SILENCER PAD

0001 1 0002 1

58435ESILENCER, FRONT FLOOR, CENTER

main58435-60050iVJA252202405

58510DCARPET ASSY, FLOOR, FRONT

main58510-6AR70-C0iVJA252202405

main58510-6AT70-C0supersedes 58510-6AR60-C0iVJA252202405

main58510-6AT80-C0iVJA252202405

58521BHOOK, FLOOR CARPET

main58521-60060×6iVJA252202405

58649CCOVER, MAT SET PLATE

main58649-60020iVJA252202405

58694APLATE, MAT SET, UPPER

main58694-78010×4iVJA252202405

58698BPLATE, MAT SET, LOWER

main58698-78010×4iVJA252202405

9046707117

main90467-07117

9167380616

main91673-80616

8 parts on this diagram · 2 diagrams in section
