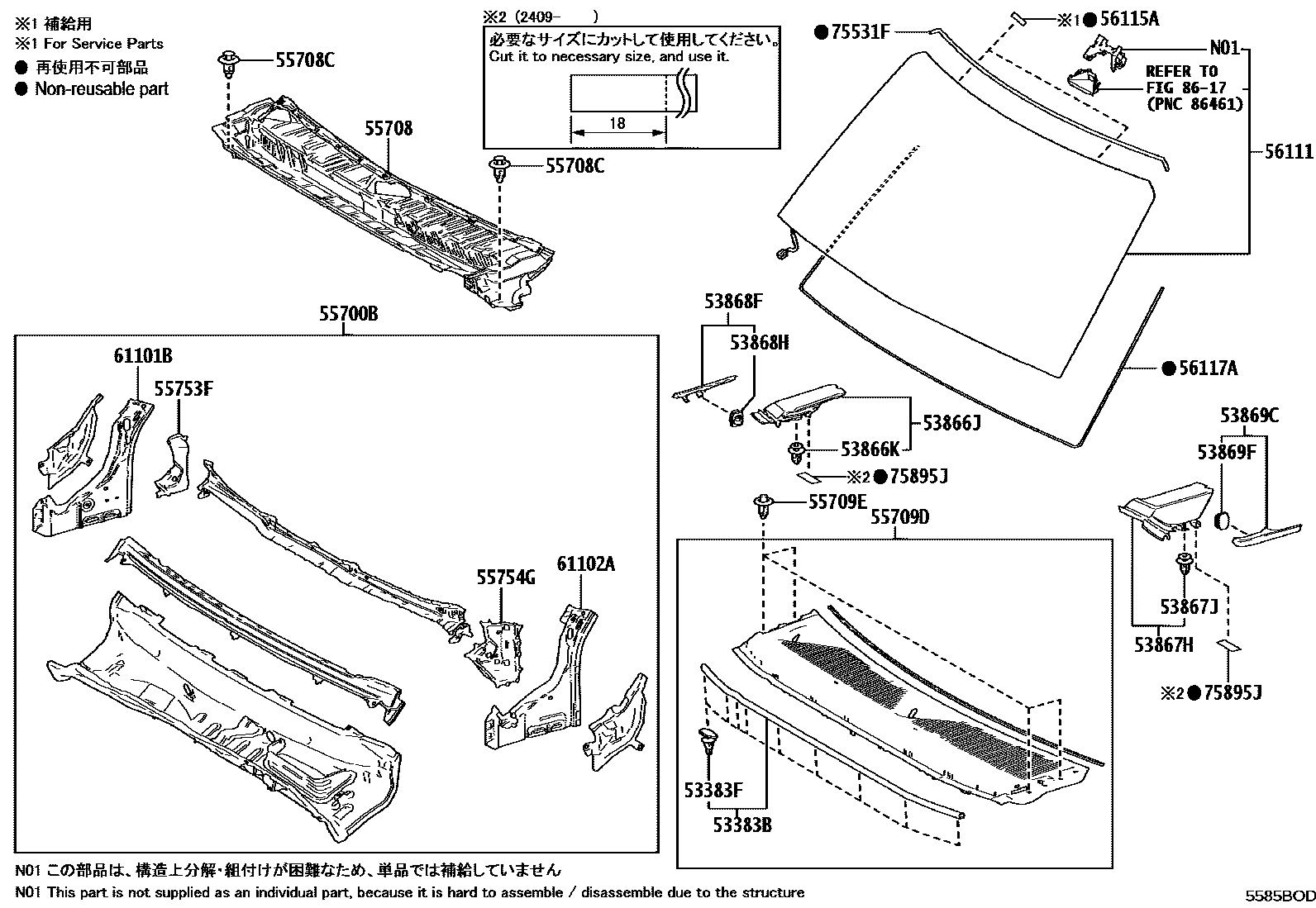

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-60150iVJA252202405

53383FRETAINER, HOOD TO COWL TOP SEAL

main67867-48030×9iVJA252202405

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-60130iVJA252202405-202409

main53866-60131iVJA252202409

53866KCLIP, FRONT FENDER TO COWL SIDE SEAL

main90467-07221iVJA252202405-202409

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-60140iVJA252202405-202409

main53867-60141iVJA252202409

53867JCLIP, FRONT FENDER TO COWL SIDE SEAL

main90467-07221iVJA252202405-202409

53868FSEAL, FRONT FENDER TO COWL SIDE, NO.2 RH

main53868-60040iVJA252202405

53868HCLIP, FRONT FENDER TO COWL SIDE SEAL, NO.2 RH

main90467-07227iVJA252202405

53869CSEAL, FRONT FENDER TO COWL SIDE, NO.2 LH

main53869-60030iVJA252202405

53869FCLIP, FRONT FENDER TO COWL SIDE SEAL, NO.2 LH

main90467-07227iVJA252202405

55700BCOWL ASSY

main55700-60F41iVJA252202405

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-60470iVJA252202405

55708CCLIP, COWL TOP VENTILATOR LOUVER

main90467-07217×2iVJA252202405

55709DSUPPORT SUB-ASSY, WIPER MOTOR MOUNTING

main55709-60080iVJA252202405

55709ECLIP, WIPER MOTOR MOUNTING SUPPORT

main90467-07076-C0×4iVJA252202405

BLACK

55753FBRACKET, INSTRUMENT PANEL TO COWL, NO.1

main55753-60050iVJA252202405

55754GBRACKET, INSTRUMENT PANEL TO COWL, NO.2

main55754-60030iVJA252202405

56111GLASS, WINDSHIELD

main56101-6B945iVJA252202405

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-60050iVJA252202405

56117ADAM, WINDOW GLASS ADHESIVE

main56117-64010iVJA252202405

61101BPANEL SUB-ASSY, COWL SIDE, RH

main61101-60340iVJA252202405

61102APANEL SUB-ASSY, COWL SIDE, LH

main61102-60370iVJA252202405

75531FMOULDING, WINDSHIELD, OUTSIDE UPPER

main75531-60100iVJA252202405

75895JTAPE, MOULDING, NO.1

main75895-55020iVJA252202409

8617PRE-COLLISION SYSTEM

→ Go to FIG 86-17

25 parts on this diagram · 1 diagram in section
