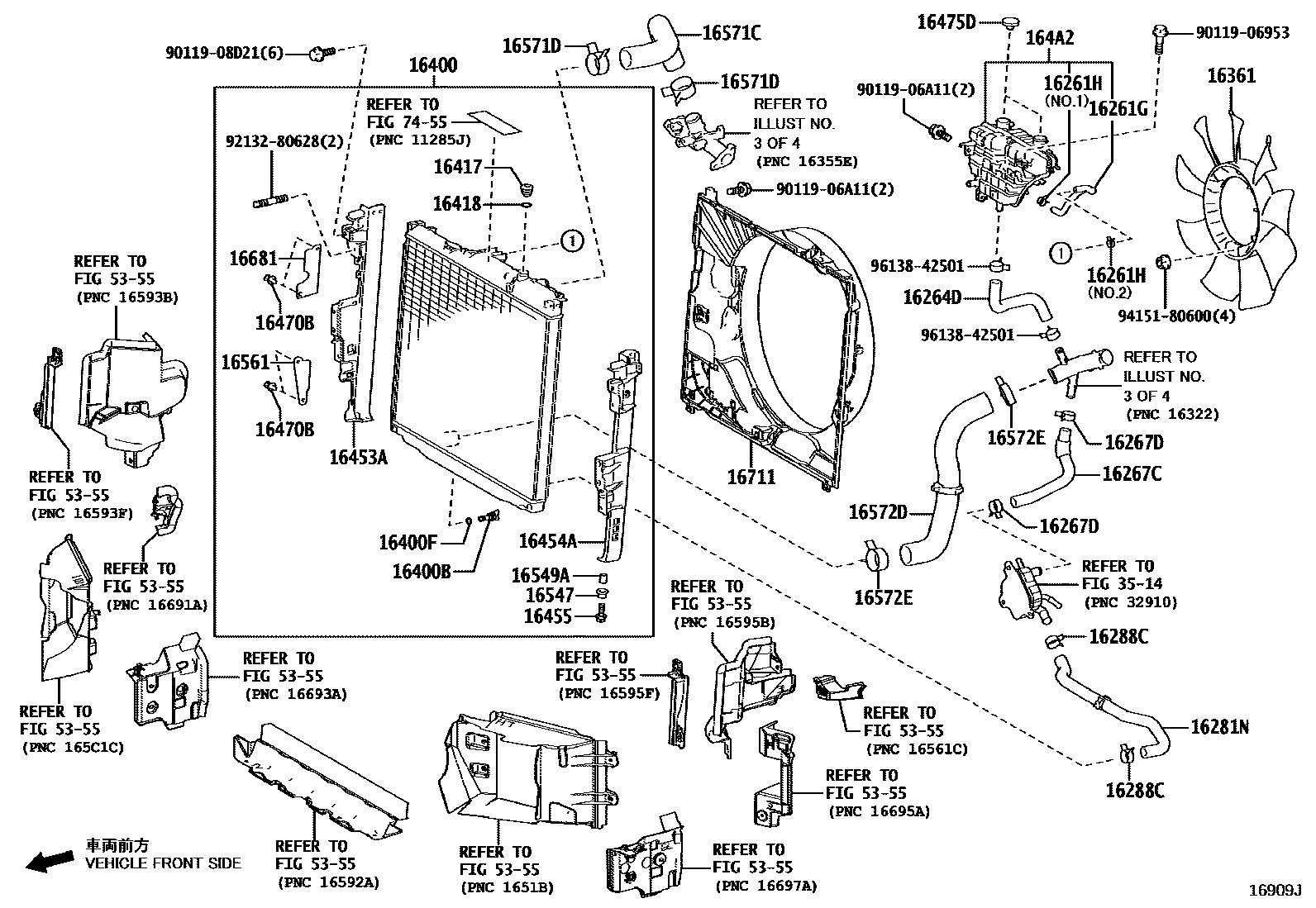

RADIATOR & WATER OUTLET

0001 1��(����������) 0002 1�������� ����������� 0003 1���������(1/2) 0004 1���������(2/2)

16261GHOSE, WATER BY-PASS, NO.1

main16261-70160iV35..VJA252202405

16261HCLIP(FOR WATER BY-PASS HOSE NO.1)

main96138-41901iV35..VJA252202405

16264HOSE, WATER BY-PASS, NO.2

main16264-70160iV35..VJA252202405

16264DHOSE, WATER BY-PASS, NO.2

main16264-70170iV35..VJA252202405

16267HOSE, WATER BY-PASS, NO.3

main16267-70141iV35..VJA252202405

16267CHOSE, WATER BY-PASS, NO.4

main16267-70150iV35..VJA252202405

16267DCLIP(FOR WATER BY-PASS HOSE NO.4)

main96138-42501×2iV35..VJA252202405

16281HOSE, WATER BY-PASS, NO.4

main16281-70100iV35..VJA252202405

16281NHOSE, WATER BY-PASS, NO.4

main16281-70110iV35..VJA252202405

16288PIPE, WATER BY-PASS, NO.4

main16288-70030iV35..VJA252202405

16288CCLIP(FOR WATER BY-PASS PIPE NO.4)

main96138-42501×2iV35..VJA252202405

16361FAN

main16361-70090iV35..VJA252202405

16400RADIATOR ASSY

main16400-70760iV35..VJA252202405

16400BPLUG, RADIATOR DRAIN COCK

main16417-30170iV35..VJA252202405

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-15520iV35..VJA252202405

16417COCK

main16417-70730iV35..VJA252202405

16418PACKING

main16418-70730iV35..VJA252202405

16453APLATE, RADIATOR SIDE SUPPORT, RH

main16453-70731iV35..VJA252202405

16454APLATE, RADIATOR SIDE SUPPORT, LH

main16454-70730iV35..VJA252202405

16455BOLT, RADIATOR SIDE SUPPORT PLATE

main16455-50370×8iV35..VJA252202405

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-07215×4iV35..VJA252202405

16475DCAP, RESERVE TANK

main16475-28140×2iV35..VJA252202405

164A2TANK, RESERVE SEALED W/O CAP

main164A2-70020iV35..VJA252202405

16547BUSH, RADIATOR SUPPORT, NO.1

main16547-70730×4iV35..VJA252202405

16549ACOLLAR, RADIATOR SUPPORT, NO.1

main16549-70730×8iV35..VJA252202405

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-70030iV35..VJA252202405

16571CHOSE, RADIATOR, NO.1

main16571-70430iV35..VJA252202405

16571DCLIP, RADIATOR HOSE, NO.1

main96136-44801×2iV35..VJA252202405

16572DHOSE, RADIATOR, NO.2

main16572-70360iV35..VJA252202405

16572ECLIP, RADIATOR HOSE, NO.2

main96136-44801×2iV35..VJA252202405

16681PLATE, RADIATOR UPPER AIR GUIDE

main16681-70010iV35..VJA252202405

16711SHROUD, FAN

main16711-70281iV35..VJA252202405

3514OIL COOLER & TUBE (ATM)

→ Go to FIG 35-14

5355FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-55

7455CAUTION PLATE

→ Go to FIG 74-55

9011906953

main90119-06953

9011906A11

main90119-06A11

9011908D21

main90119-08D21

9213280628

main92132-80628

9415180600

main94151-80600

9613842501

main96138-42501

41 parts on this diagram · 4 diagrams in section
