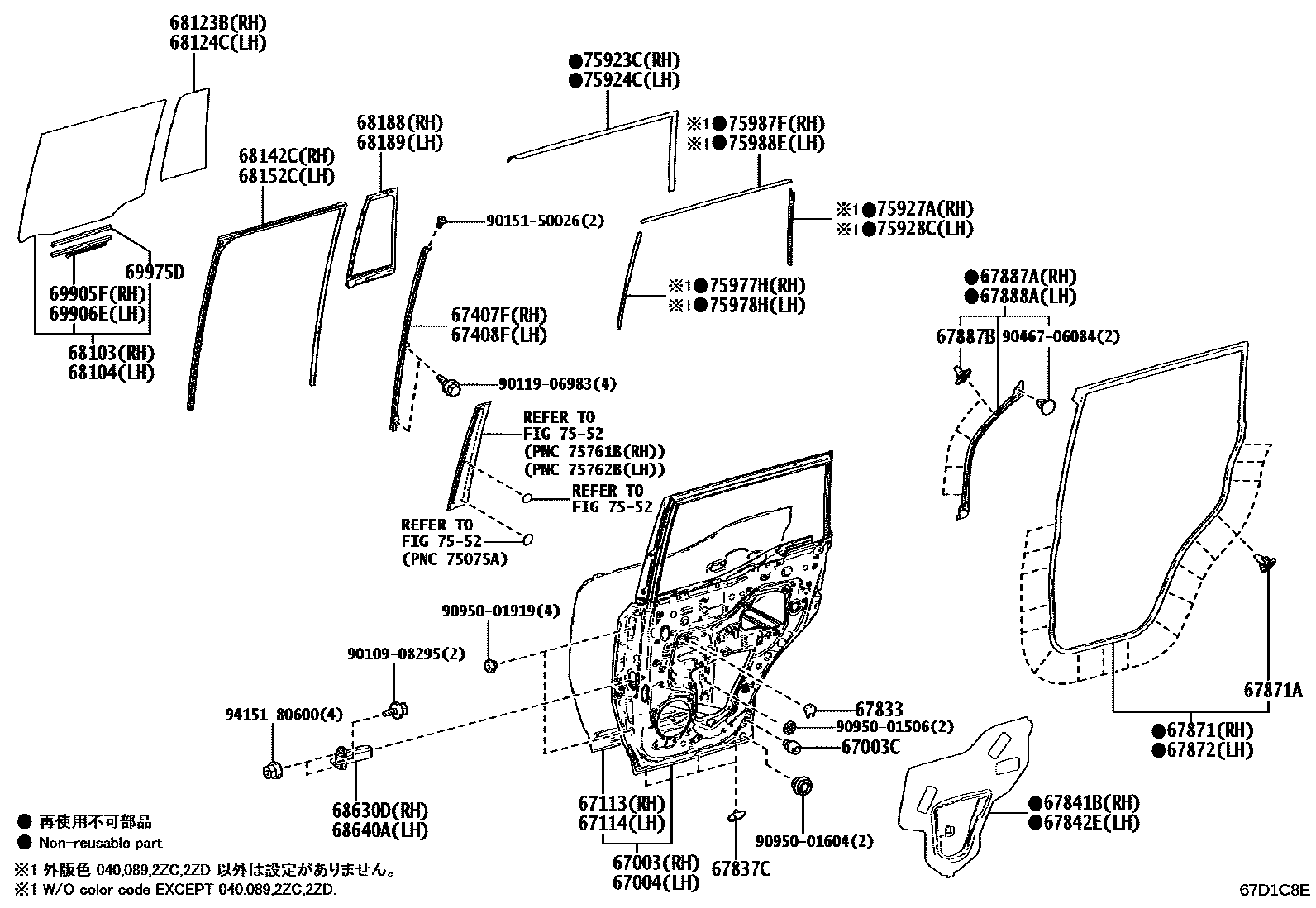

REAR DOOR PANEL & GLASS

0001 1������� 0002 1������

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-60600iGDJ250,TRJ250202404

67003CCUSHION, REAR DOOR PANEL

main90541-09124iGDJ250,TRJ250202404

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-60610iGDJ250,TRJ250202404

67113PANEL, REAR DOOR, OUTER RH

main67113-60320iGDJ250,TRJ250202404

67114PANEL, REAR DOOR, OUTER LH

main67114-60320iGDJ250,TRJ250202404

67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH

main67407-60110iGDJ250,TRJ250202404

67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH

main67408-60110iGDJ250,TRJ250202404

67833COVER, REAR DOOR SERVICE HOLE

main67833-47010iGDJ250,TRJ250202410

67837CSEAL, REAR DOOR DUST PROOF

main67837-47060iGDJ250,TRJ250202404

67841BCOVER, REAR DOOR SERVICE HOLE

main67841-60160iGDJ250,TRJ250202404-202411

main67841-60161iGDJ250,TRJ250202411

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-60110iGDJ250,TRJ250202404-202411

main67842-60111iGDJ250,TRJ250202411

67871WEATHERSTRIP, REAR DOOR, RH

main67871-60150iGDJ250,TRJ250202404

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67867-12150iGDJ250,TRJ250202404

67872WEATHERSTRIP, REAR DOOR, LH

main67872-60150iGDJ250,TRJ250202404

67887AWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-60070iGDJ250,TRJ250202404

67887BCLIP(FOR REAR DOOR WEATHERSTRIP)

main67867-52020iGDJ250,TRJ250202404

main67867-52030iGDJ250,TRJ250202404

67888AWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-60040iGDJ250,TRJ250202404

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-60550iGDJ250,TRJ250202404

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-60540iGDJ250,TRJ250202404

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-60480iGDJ250,TRJ250202404

68124CGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-60490iGDJ250,TRJ250202404

68142CRUN, REAR DOOR GLASS, RH

main68142-60090iGDJ250,TRJ250202404

68152CRUN, REAR DOOR GLASS, LH

main68152-60080iGDJ250,TRJ250202404

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-60100iGDJ250,TRJ250202404

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-60100iGDJ250,TRJ250202404

68630DCHECK ASSY, REAR DOOR, RH

main68630-60170iGDJ250,TRJ250202404

68640ACHECK ASSY, REAR DOOR, LH

main68640-60150iGDJ250,TRJ250202404

69905FCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-52050iGDJ250,TRJ250202404

69906ECHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-52050iGDJ250,TRJ250202404

69975DFILLER, REAR DOOR GLASS CHANNAL

main69975-52010iGDJ250,TRJ250202404

7552MOULDING

→ Go to FIG 75-52

75923CTAPE, BLACK OUT, NO.2 RH

main75923-60070iGDJ250,TRJ250202404

75924CTAPE, BLACK OUT, NO.2 LH

main75924-60070iGDJ250,TRJ250202404

75927ATAPE, BLACK OUT, NO.4 RH

main75927-60050iGDJ250,TRJ250202404

75928CTAPE, BLACK OUT, NO.4 LH

main75928-60050iGDJ250,TRJ250202404

75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH

main75977-60190iGDJ250,TRJ250202404

75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH

main75978-60190iGDJ250,TRJ250202404

75987FSTRIPE, REAR DOOR, OUTSIDE, RH

main75987-60720iGDJ250,TRJ250202404

75988ESTRIPE, REAR DOOR, OUTSIDE LH

main75988-60890iGDJ250,TRJ250202404

9010908295

main90109-08295

9011906983

main90119-06983

9015150026

main90151-50026

9046706084

main90467-06084

9095001506

main90950-01506

9095001604

main90950-01604

9095001919

main90950-01919

9415180600

main94151-80600

47 parts on this diagram · 2 diagrams in section
