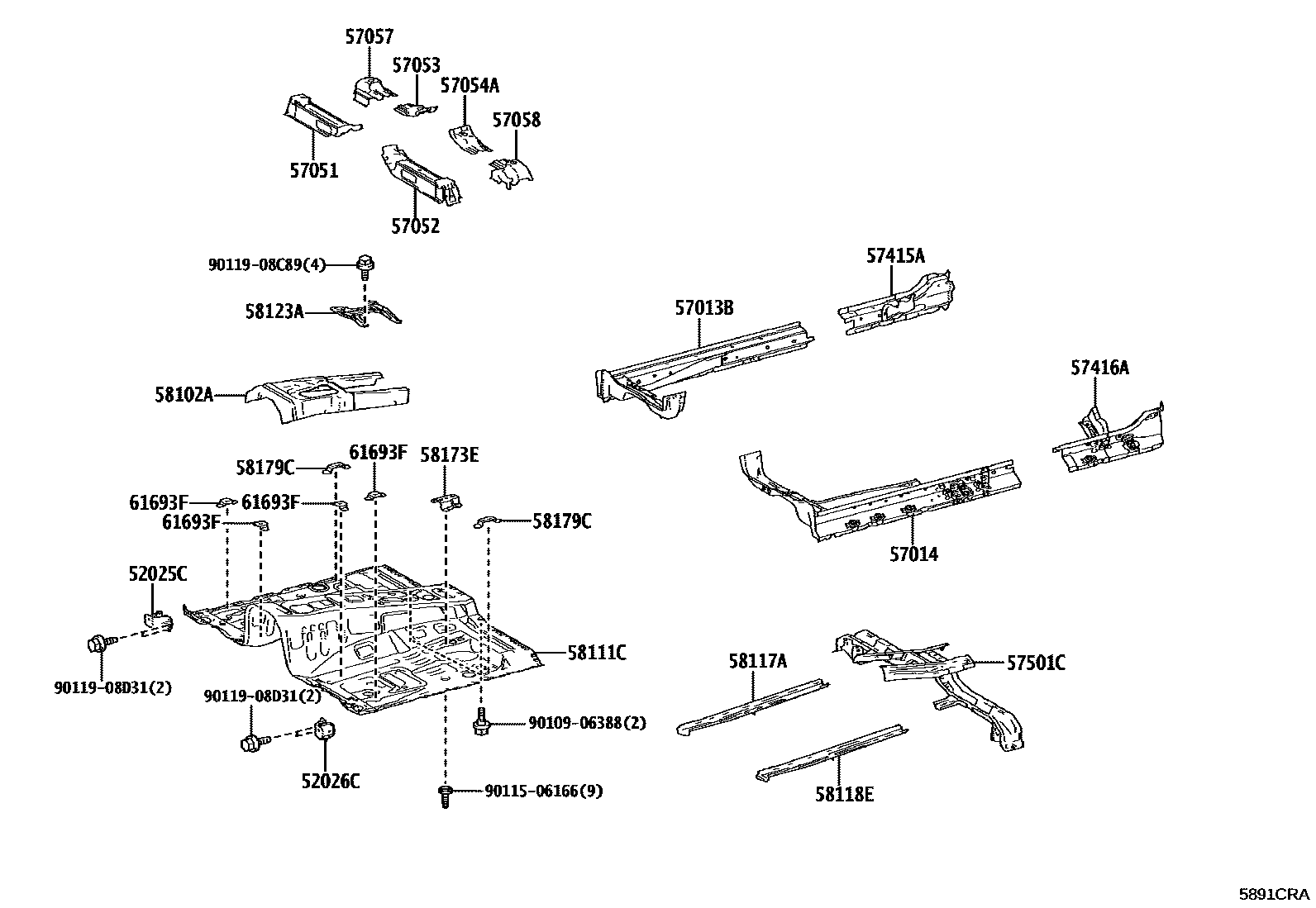

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1������� 0002 1���������

52025CEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH

main52025-60070iGDJ250,TRJ250202404

52026CEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH

main52026-60070iGDJ250,TRJ250202404

57013BMEMBER SUB-ASSY, FLOOR, FRONT RH

main57013-60050iGDJ250,TRJ250202404

57014MEMBER SUB-ASSY, FLOOR, FRONT LH

main57014-60050iGDJ250,TRJ250202404

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-60100iGDJ250,TRJ250202404

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-60100iGDJ250,TRJ250202404

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-60070iGDJ250,TRJ250202404

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-60030iGDJ250,TRJ250202404

57057REINFORCEMENT SUB-ASSY, CROSSMEMBER FLOOR, NO.7 RH

main57057-60020iGDJ250,TRJ250202404

57058REINFORCEMENT SUB-ASSY, CROSSMEMBER FLOOR, NO.7 LH

main57058-60020iGDJ250,TRJ250202404

57415ARAIL SUB-ASSY, FLOOR SIDE, REAR RH

main57403-60080iGDJ250,TRJ250202404

57416ARAIL SUB-ASSY, FLOOR SIDE, REAR LH

main57404-60070iGDJ250,TRJ250202404

57501CBRACE SUB-ASSY, FRONT FLOOR, CENTER

main57501-60030iGDJ250,TRJ250202404

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-60130iGDJ250,TRJ250202404

58111CPAN, FRONT FLOOR

main58111-60G40iGDJ250,TRJ250202404

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-60050iGDJ250,TRJ250202404

58118EBRACKET, JACK SET

main58118-60040iGDJ250,TRJ250202404

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-60130iGDJ250,TRJ250202404

58173EBRACKET, WIRING HARNESS, NO.3

main58173-60010iGDJ250,TRJ250202404

58179CBRACKET, CLAMP FLOOR

main58179-60040×2iGDJ250,TRJ250202404

61693FBRACKET, FRONT FLOOR

main58523-60020×4iGDJ250,TRJ250202404

9010906388

main90109-06388

9011506166

main90115-06166

9011908C89

main90119-08C89

9011908D31

main90119-08D31

25 parts on this diagram · 2 diagrams in section
