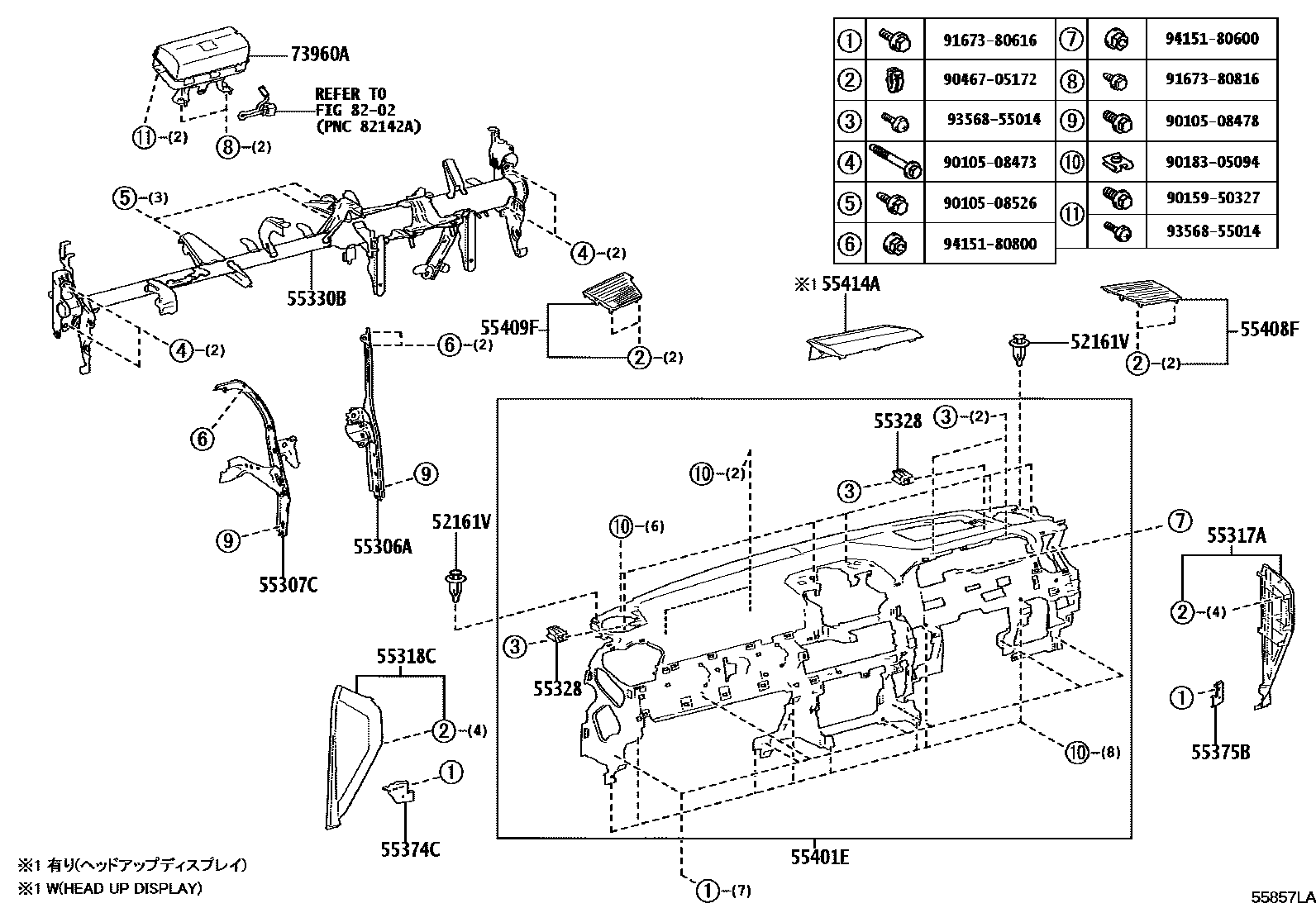

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1����������

52161VPIECE, INSTRUMENT PANEL

main52161-16010×2iGDJ250,TRJ250202404

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-60260iGDJ250,TRJ250202404

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-60200iGDJ250,TRJ250202404

55317APANEL, INSTRUMENT SIDE, RH

main55317-60170-C0iGDJ250,TRJ250..A,E,F; GDJ250,TRJ250..R,T202404

BLACK,TRIM1#,2#; BLACK,TRIM2#,4#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-60260-C0iGDJ250,TRJ250..A,E,F; GDJ250,TRJ250..R,T202404

BLACK,TRIM1#,2#; BLACK,TRIM2#,4#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-60090×2iGDJ250,TRJ250202404

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-60660iGDJ250,TRJ250202404-202501

main55330-60661iGDJ250,TRJ250202501

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-60180iGDJ250,TRJ250202404

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-60180iGDJ250,TRJ250202404

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-60650-C1iGDJ250,TRJ250..E; GDJ250,TRJ250..R,T202404

SOFT BLACK,TRIM1#,2#; SOFT BLACK,TRIM2#,4#

main55401-60710-C1iGDJ250..A,F202404

SOFT BLACK,TRIM2#,4#

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-60360-C0iGDJ250,TRJ250..A,E,F; GDJ250,TRJ250..R,T202404

BLACK,TRIM1#,2#; BLACK,TRIM2#,4#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55409-60230-C0iGDJ250,TRJ250..A,E,F; GDJ250,TRJ250..R,T202404

BLACK,TRIM1#,2#; BLACK,TRIM2#,4#

55414APANEL, INSTRUMENT CLUSTER FINISH, END

main55414-60290-C0iGDJ250..A,F202404

BLACK,TRIM2#,4#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-60310iGDJ250,TRJ250202404

8202WIRING & CLAMP

→ Go to FIG 82-02

9010508473

main90105-08473

9010508478

main90105-08478

9010508526

main90105-08526

9015950327

main90159-50327

9018305094

main90183-05094

9046705172

main90467-05172

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

26 parts on this diagram · 4 diagrams in section
