CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

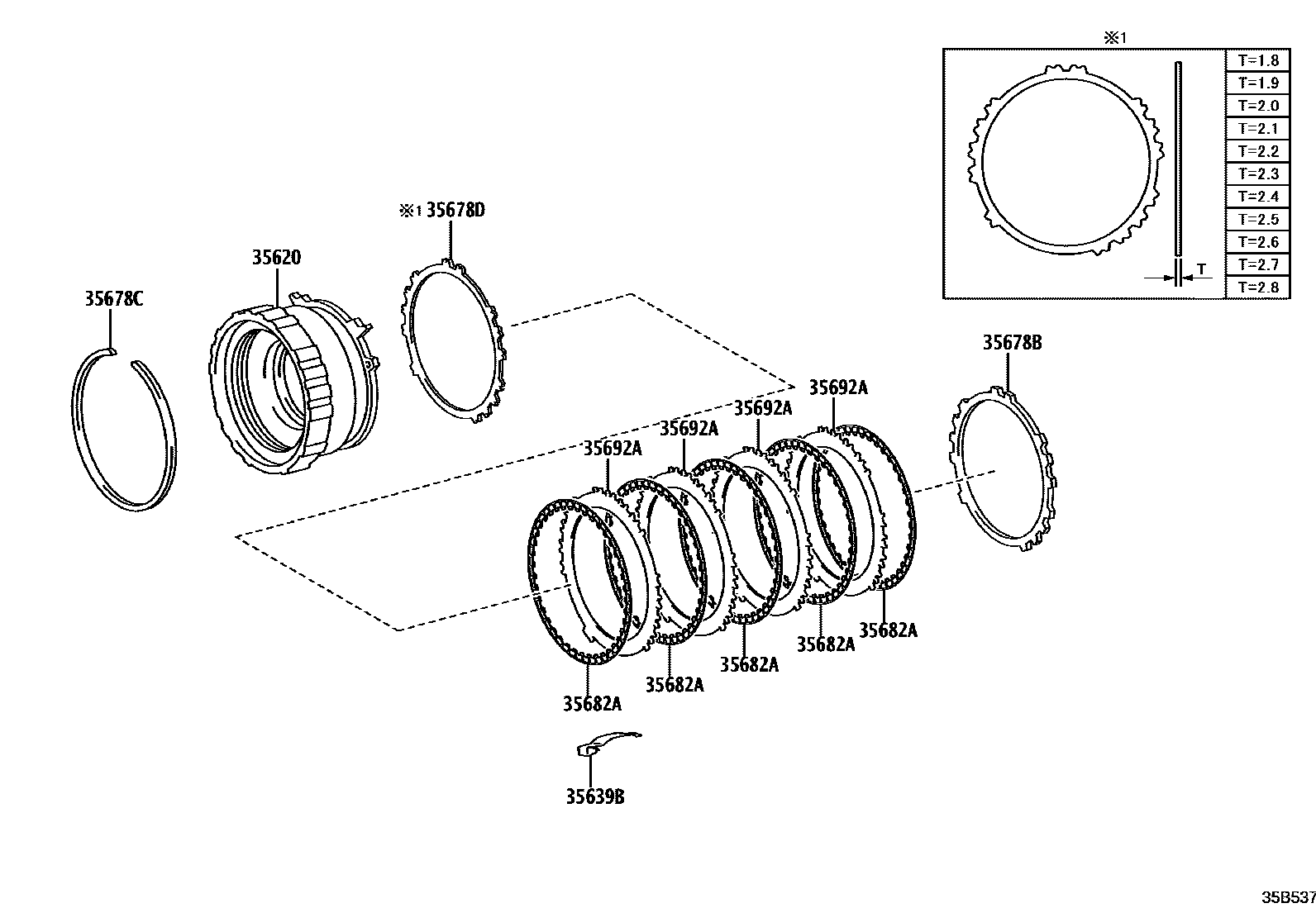

Parts diagram

35620SUPPORT ASSY, CENTER

main35620-60080i202404

35639BSPRING, BRAKE PLATE STOPPER

main35639-71010i202404

main35639-71020i202404

35678BFLANGE, BRAKE, NO.2

main35678-60390i202404

main35678-71010i202404

main35678-71020i202404

main35678-71030i202404

main35678-71040i202404

main35678-71050i202404

main35678-71060i202404

main35678-71070i202404

main35678-71080i202404

main35678-71090i202404

main35678-71100i202404

35678CRING, SNAP (FOR BRAKE NO.2)

main90520-99155i202404

main90521-99210i202404

35678DFLANGE, BRAKE, NO.2

main35678-60400i202404

main35678-60410i202404

main35678-60420i202404

main35678-60430i202404

main35678-60440i202404

main35678-60450i202404

main35678-60460i202404

main35678-60470i202404

main35678-60480i202404

main35678-60490i202404

main35678-60500i202404

35682ADISC, BRAKE, NO.2

main35682-60050×5i202404

main35682-71010×4i202404

35692APLATE, BRAKE, NO.2

main35692-60060×4i202404

main35692-71010×3i202404

7 parts on this diagram · 2 diagrams in section
