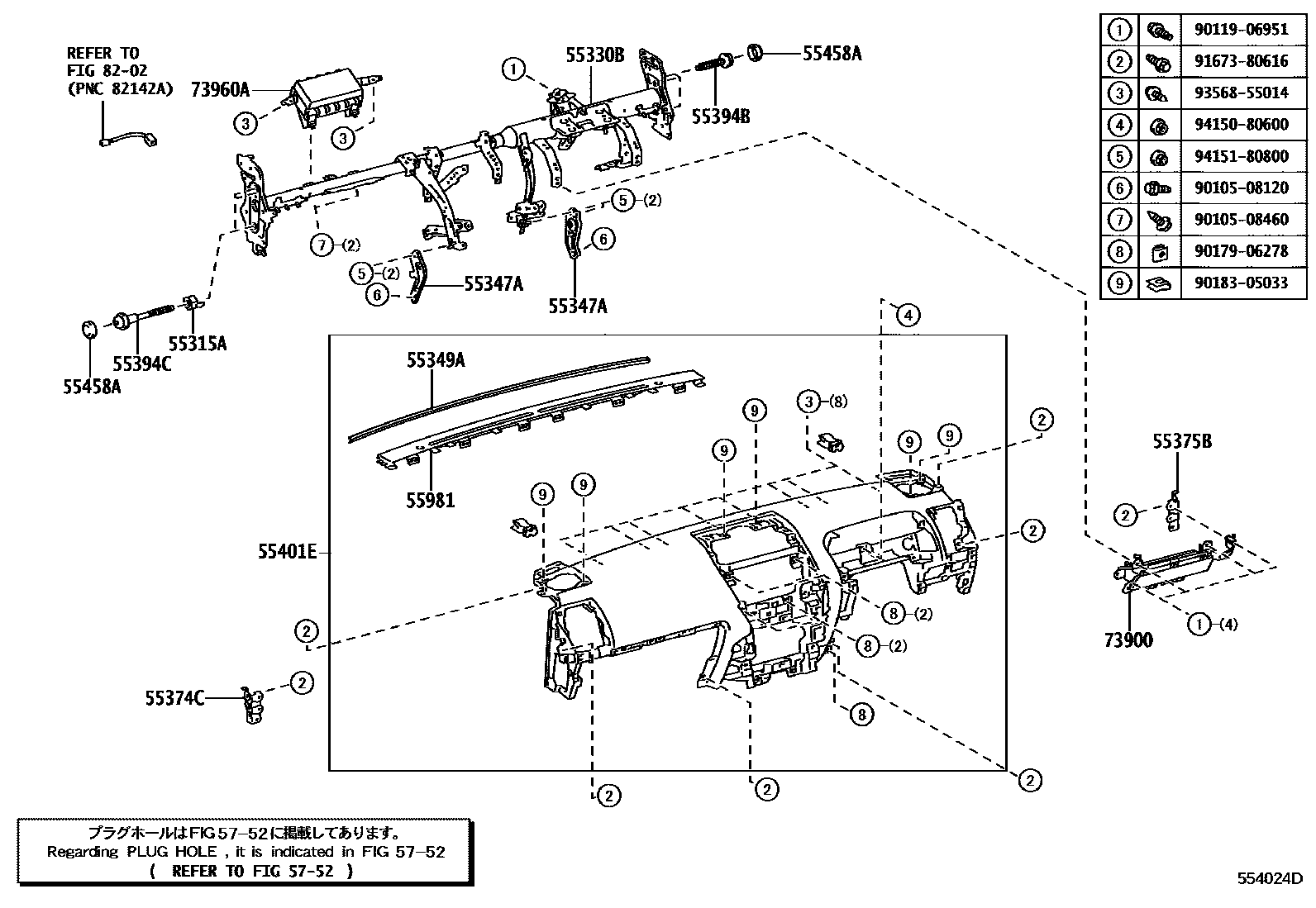

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1����������

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-53040×2iGDJ15#,TRJ150201708-202106

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-60251iTRJ150201708-202008

main55330-60261iGDJ151201708-202008

main55330-60301iGDJ150201708-202008

main55330-60550iGDJ151202008-202106

main55330-60560iGDJ150,TRJ150202008-202106

main55330-60630iGDJ151202106-202312

main55330-60640iGDJ150,TRJ150202106-202312

55347ABRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1

main55347-60110iGDJ15#,TRJ150201708-202312

main55348-60120iGDJ15#,TRJ150201708-202312

55349ACUSHION, INSTRUMENT PANEL

main55349-60100iGDJ15#,TRJ150201708-202312

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-60110iGDJ15#,TRJ150201708-202312

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-60110iGDJ15#,TRJ150201708-202312

55394BBOLT, INSTRUMENT PANEL

main55394-48050×3iGDJ15#,TRJ150201708-202312

55394CBOLT, INSTRUMENT PANEL

main55394-48060×2iGDJ15#,TRJ150201708-202106

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-60451-C0iGDJ150,TRJ150; GDJ151201708-202312

BLACK,TRIM2#; BLACK,TRIM2#,41

main55401-60451-E1iGDJ150,TRJ150; GDJ151201708-202312

ORCHID BROWN,TRIM4#; ORCHID BROWN,TRIM40

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-50100×5iGDJ15#,TRJ150201708-202106

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-60030-C0iGDJ150,TRJ150; GDJ151201708-202312

BLACK,TRIM2#; BLACK,TRIM2#,41

main55981-60030-E2iGDJ150,TRJ150; GDJ151201708-202312

ORCHID BROWN,TRIM4#; ORCHID BROWN,TRIM40

5752HOLE PLUG

→ Go to FIG 57-52

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-60040-C0iGDJ15#,TRJ150201708-201804

BLACK,TRIM2#

main73900-60040-E2iGDJ15#,TRJ150201708-201804

NEUTRAL BEIGE,TRIM4#

main73900-60150-C0iGDJ150,TRJ150; GDJ151201806-202207

BLACK,TRIM2#; BLACK,TRIM2#,41

main73900-60150-E0iGDJ150,TRJ150; GDJ151201806-202207

NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40

main73900-60151-C0iGDJ15#,TRJ150202208-202312

BLACK,TRIM2#

main73900-60151-E0iGDJ15#,TRJ150202208-202312

NEUTRAL BEIGE,TRIM4#

main73900-60170-C0iGDJ150,TRJ150; GDJ151201804-201806

TRIM2#; TRIM2#,41

main73900-60170-E2iGDJ150,TRJ150; GDJ151201804-201806

TRIM4#; TRIM40

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-60210iGDJ15#,TRJ150201708-201804

main73960-60370iGDJ15#,TRJ150201806-202207

main73960-60371iGDJ15#,TRJ150202208-202312

main73960-60400iGDJ15#,TRJ150201804-201806

8202WIRING & CLAMP

→ Go to FIG 82-02

9010508120

main90105-08120

9010508460

main90105-08460

9011906951

main90119-06951

9017906278

main90179-06278

9018305033

main90183-05033

9167380616

main91673-80616

9356855014

main93568-55014

9415080600

main94150-80600

9415180800

main94151-80800

24 parts on this diagram · 4 diagrams in section
