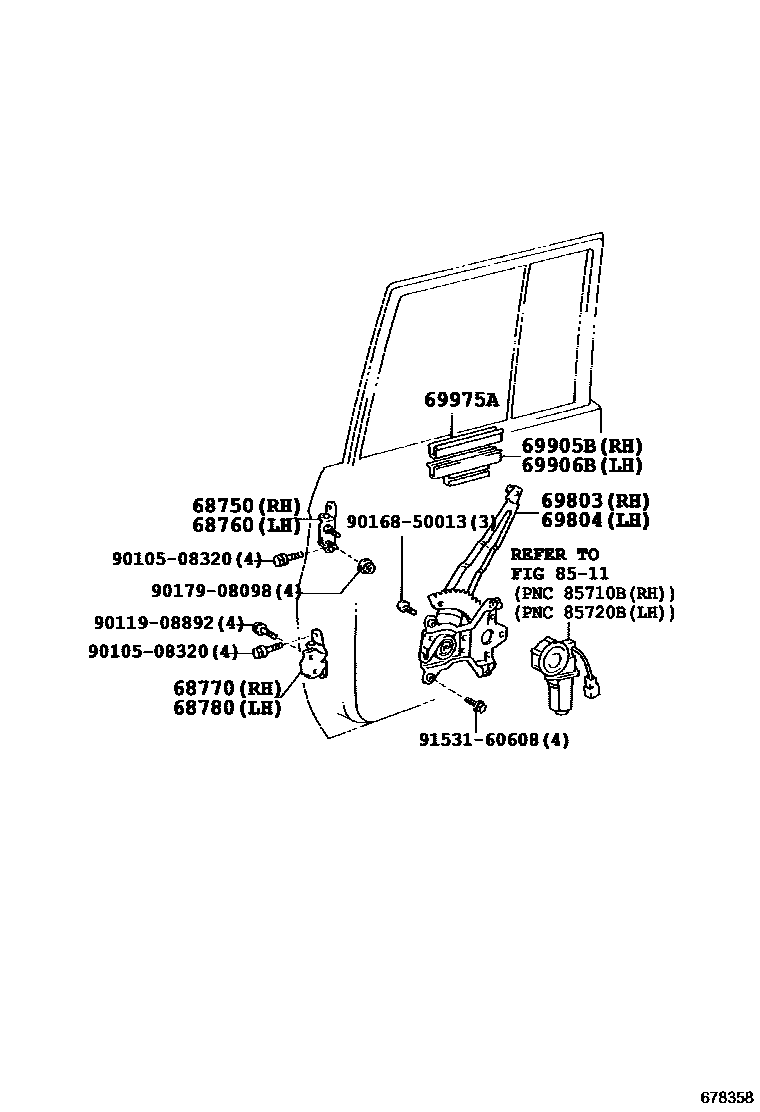

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-60040iGRJ7#201408-201507

main68750-60041iGDJ76202311

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-60040iGRJ7#201408-201507

main68760-60041iGDJ76202311

68770HINGE ASSY, REAR DOOR, LOWER RH

main68730-60020iGRJ7#201408-201507

main68730-60021iGDJ76202311

68780HINGE ASSY, REAR DOOR, LOWER LH

main68740-60020iGRJ7#201408-201507

main68740-60021iGDJ76202311

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-60020iGRJ7#201408-201507

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-60020iGRJ7#201408-201507

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-60030iGRJ7#201408-201507

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69905-60030iGRJ7#201408-201507

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-60011×2iGRJ7#201408-201507

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9010508320

main90105-08320

9011908892

main90119-08892

9016850013

main90168-50013

9017908098

main90179-08098

9153160608

main91531-60608

15 parts on this diagram · 1 diagram in section
