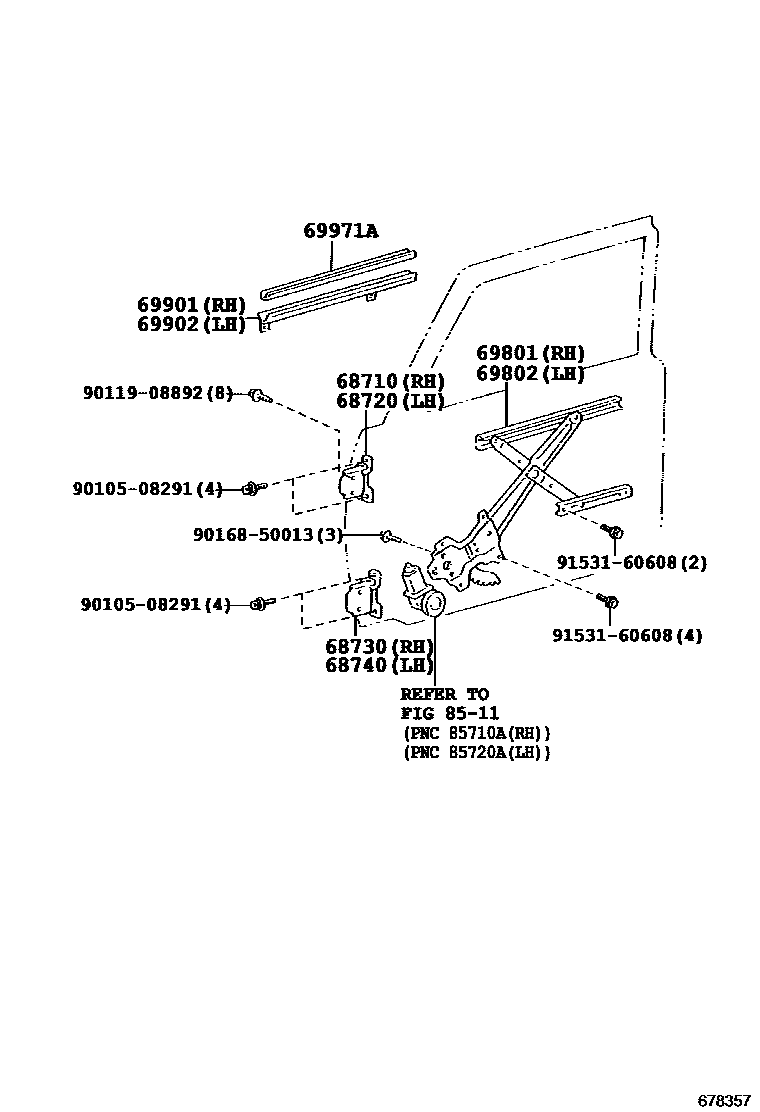

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-60040iGRJ7#201408-201507

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-60040iGRJ7#201408-201507

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-60020iGRJ7#201408-201507

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-60020iGRJ7#201408-201507

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-60020iGRJ7#201408-201410

main69801-60100iGRJ7#201411-201507

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-60020iGRJ7#201408-201410

main69802-60100iGRJ7#201411-201507

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-60020iGRJ7#201408-201507

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69902-60020iGRJ7#201408-201507

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-60020×2iGRJ7#201408-201507

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9010508291

main90105-08291

9011908892

main90119-08892

9016850013

main90168-50013

9153160608

main91531-60608

14 parts on this diagram · 2 diagrams in section
