FRONT FENDER APRON & DASH PANEL

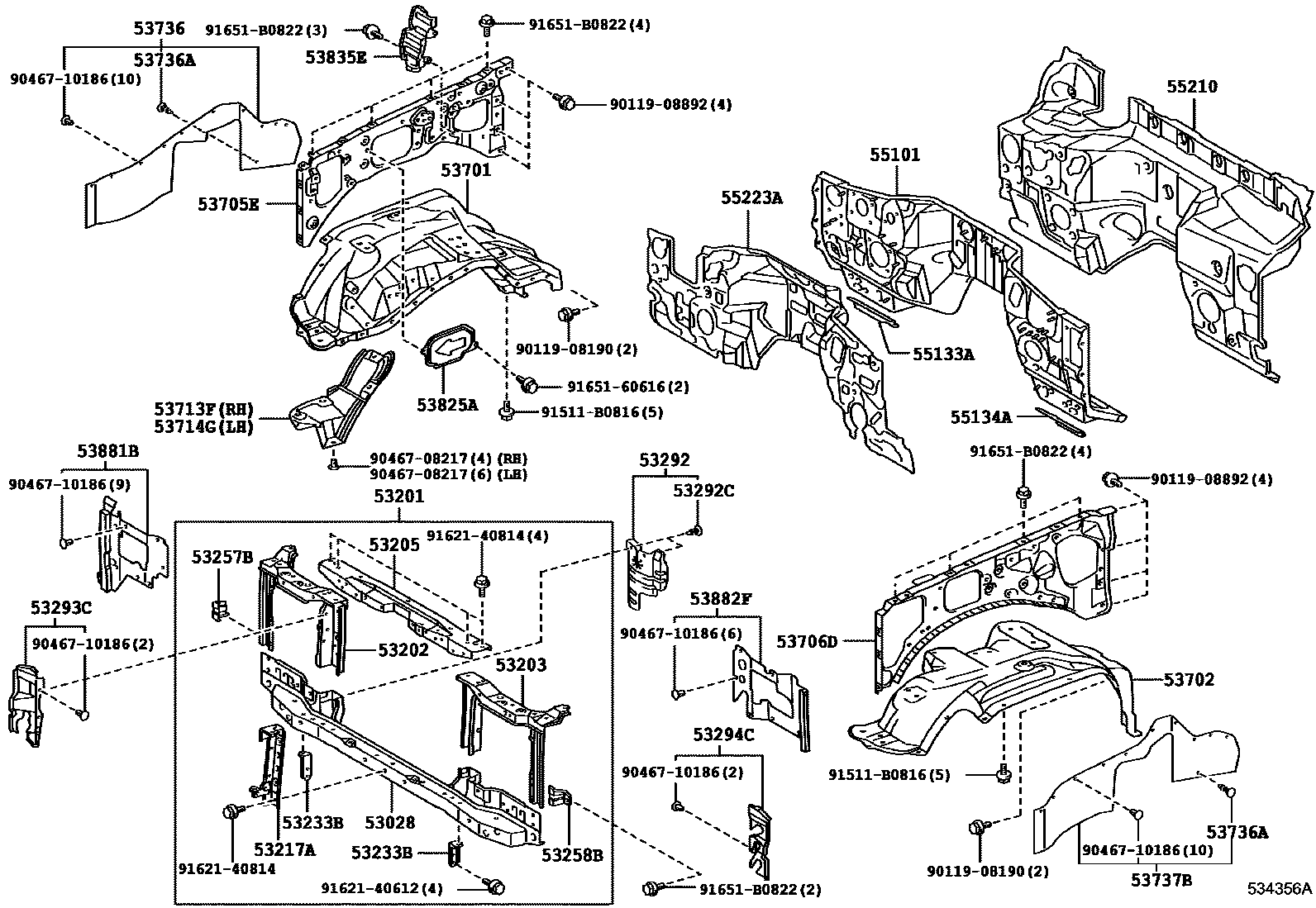

Parts diagram
53028SUPPORT SUB-ASSY, RADIATOR, LOWER
main53028-60030i201408-201507
main53028-60070i202311
53201SUPPORT SUB-ASSY, RADIATOR
main53210-60530i201408-201507
main53210-60580i202311
53202SUPPORT SUB-ASSY, RADIATOR, RH
main53202-60240i201408-201507
main53202-60330i202311
53203SUPPORT SUB-ASSY, RADIATOR, LH
main53203-60250i201408-201507
main53203-60340i202311
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
main53205-60050i201408-201507
main53205-60130i202311
53217ABRACE, HOOD LOCK SUPPORT
main53209-60100i201408-201507
main53209-60240i202311
53233BBRACKET, HEADLAMP, INNER RH
main53233-60010×2i201408-201507
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
main53257-60040i201408-201507
53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH
main53258-60020i201408-201507
53292SEAL, RADIATOR SUPPORT TO FRAME, LH
main53292-60010i201408-201507
main53292-90K00i202311
53292CCLIP, RADIATOR SUPPORT TO FRAME
main90467-08186-C0×3i201408-201507
BLACK
53293CDEFLECTOR, RADIATOR SIDE, RH
main53293-60060i201408-201507
53294CDEFLECTOR, RADIATOR SIDE, LH
main53294-60070i201408-201507
53701APRON SUB-ASSY, FRONT FENDER, RH
main53701-60D31i201408-201507
main53701-60J40i202311
53702APRON SUB-ASSY, FRONT FENDER, LH
main53702-60A80i201408-201507
main53702-60E40i202311
53705EMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH
main53705-60050i201408-201507
main53705-60110i202311
53706DMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH
main53706-60040i201408-201507
main53706-60110i202311
53713FPLATE, FENDER APRON SPLASH, RH
main53713-60070i201408-201507
main53713-60150i202311
53714GPLATE, FENDER APRON SPLASH, LH
main53714-60020i201408-201507
main53714-60110i202311
53736SEAL, FRONT FENDER APRON, RH
main53736-60210i201408-201507
main53736-60310i202311
53736ACLIP(FOR FRONT FENDER APRON SEAL)
main90467-08154-22×2i201408-201507
BLACK
53737BSEAL, FRONT FENDER APRON, LH
main53737-60140i201408-201507
main53737-60200i202311
53825APROTECTOR, FRONT FENDER, UPPER RH
main53825-60040i201408-201507
main53825-60170i202311
53835EBRACE, FRONT FENDER TO APRON, RH
main53835-60070i201408-201507
main53835-60090i202311
53881BSEAL, COOLING FAN AIR DUCT, NO.1
main53881-60020i201408-201507
main53881-60040i202311
53882FSEAL, FRONT FENDER
main53882-60060i201408-201507
main53882-60120i202311
55101PANEL SUB-ASSY, DASH
main55101-60G80i201408-201507
main55101-60K71i202311
55133AREINFORCEMENT, DASH TO FLOOR, RH
main55133-60020i201408-201507
55134AREINFORCEMENT, DASH TO FLOOR, LH
main55134-60040i202311
55210INSULATOR ASSY, DASH PANEL
main55210-60281i202311
main55210-60283i201505-201507
55223AINSULATOR, DASH PANEL, OUTER
main55223-60410i201408-201507
main55223-60411i202311
9011908190
main90119-08190
9011908892
main90119-08892
9046708217
main90467-08217
9046710186
main90467-10186
91511B0816
main91511-B0816
9162140612
main91621-40612
9162140814
main91621-40814
9165160616
main91651-60616
91651B0822
main91651-B0822

40 parts on this diagram · 5 diagrams in section
