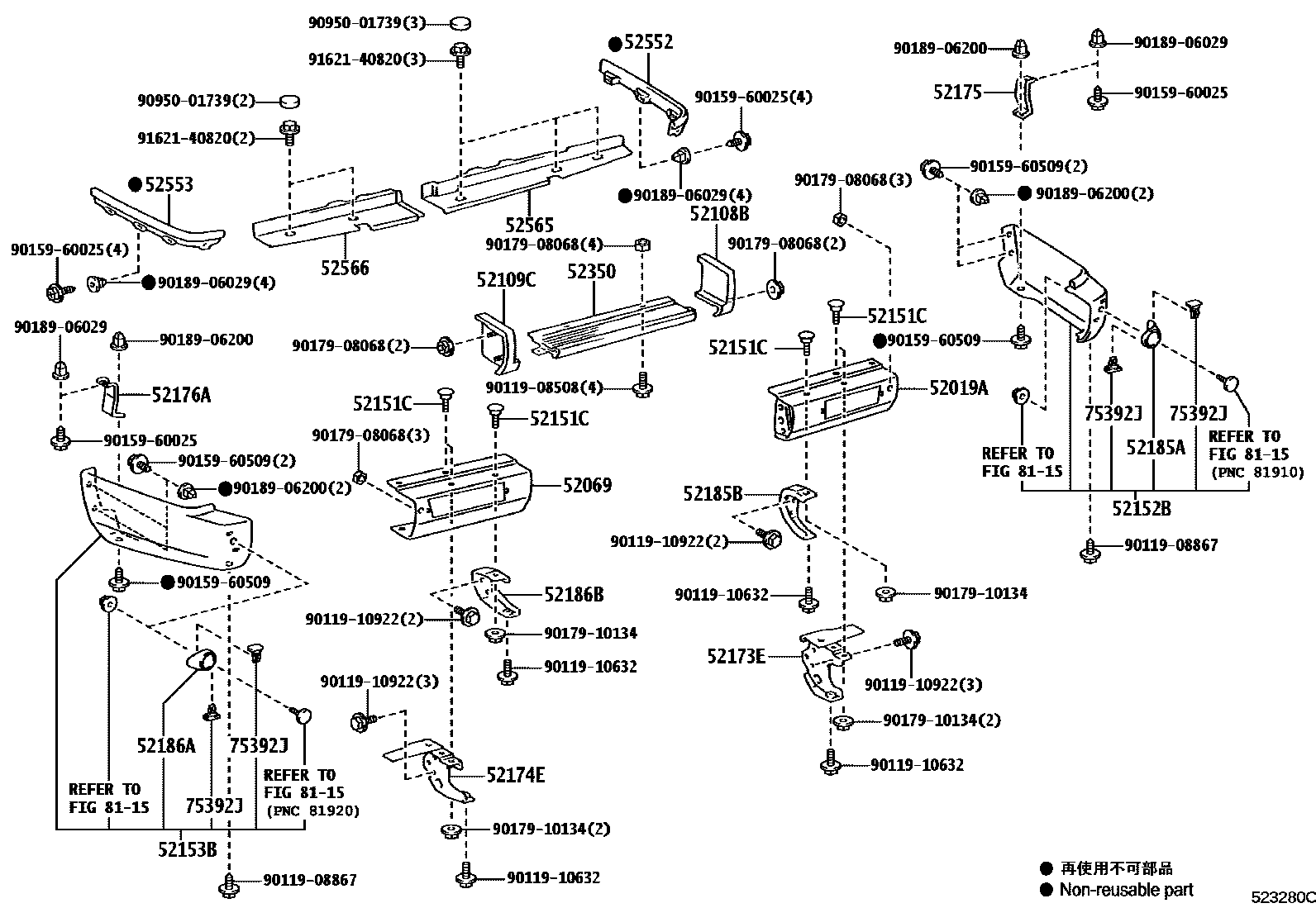

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52019ABAR SUB-ASSY, REAR BUMPER, RH

main52019-60052iGRJ76201408-201507

main52901-WY010iGDJ76202311

52069BAR SUB-ASSY, REAR BUMPER, LH

main52069-60052iGRJ76201408-201507

main52902-WY010iGDJ76202311

52108BEXTENSION SUB-ASSY, REAR BUMPER SIDE, RH

main52108-60050iGRJ76201408-201507

main52108-WY010iGDJ76202311

52109CEXTENSION SUB-ASSY, REAR BUMPER SIDE, LH

main52109-60050iGRJ76201408-201507

main52109-WY010iGDJ76202311

52151CBOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER)

main90112-10021×6iGRJ76201408-201507

52152BEXTENSION, REAR BUMPER, RH

main52106-60270-B0iGRJ76201408-201507

GRAY ME.(1D2),058 ,1F7 ,1G3 ,3Q3 ,4E9 ,4R3 ,8H6

main52106-WY010iGDJ76202311

52153BEXTENSION, REAR BUMPER, LH

main52107-60240-B0iGRJ76201408-201507

GRAY ME.(1D2),058 ,1F7 ,1G3 ,3Q3 ,4E9 ,4R3 ,8H6

main52107-WY010iGDJ76202311

52173EBRACKET, REAR BUMPER BAR, RH

main52173-60100iGRJ76201408-201507

52174EBRACKET, REAR BUMPER BAR, LH

main52174-60090iGRJ76201408-201507

52175BRACKET, REAR BUMPER ARM MOUNTING

main52175-60030iGRJ76201408-201507

main52175-WY020iGDJ76202311

52176ABRACKET, REAR BUMPER ARM MOUNTING, LH

main52175-60030iGRJ76201408-201507

main52176-WY030iGDJ76202311

52185ABRACKET, REAR BUMPER SIDE, RH

main52185-60110iGRJ76201408-201507

main52185-WY020×2iGDJ76202311

52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH

main52185-60050iGRJ76201408-201507

52186ABRACKET, REAR BUMPER SIDE, LH

main52186-60050iGRJ76201408-201507

main52186-WY010×2iGDJ76202311

52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH

main52186-60040iGRJ76201408-201507

52350STEP ASSY, REAR BUMPER

main52351-60070iGRJ76201408-201507

main52351-WY010iGDJ76202311

52552FILLER, REAR BUMPER, RH

main52552-60030iGRJ76201408-201507

52553FILLER, REAR BUMPER, LH

main52553-60030iGRJ76201408-201507

52565FILLER, REAR BUMPER EXTENSION, RH

main52565-60020iGRJ76201408-201507

52566FILLER, REAR BUMPER EXTENSION, LH

main52566-60010iGRJ76201408-201507

75392JRETAINER, OUTSIDE MOULDING

main75392-35200×4iGRJ76201408-201507

8115REFLEX REFLECTOR

→ Go to FIG 81-15

9011908508

main90119-08508

9011908867

main90119-08867

9011910632

main90119-10632

9011910922

main90119-10922

9015960025

main90159-60025

9015960509

main90159-60509

9017908068

main90179-08068

9017910134

main90179-10134

9018906029

main90189-06029

9018906200

main90189-06200

9095001739

main90950-01739

9162140820

main91621-40820

34 parts on this diagram · 2 diagrams in section
