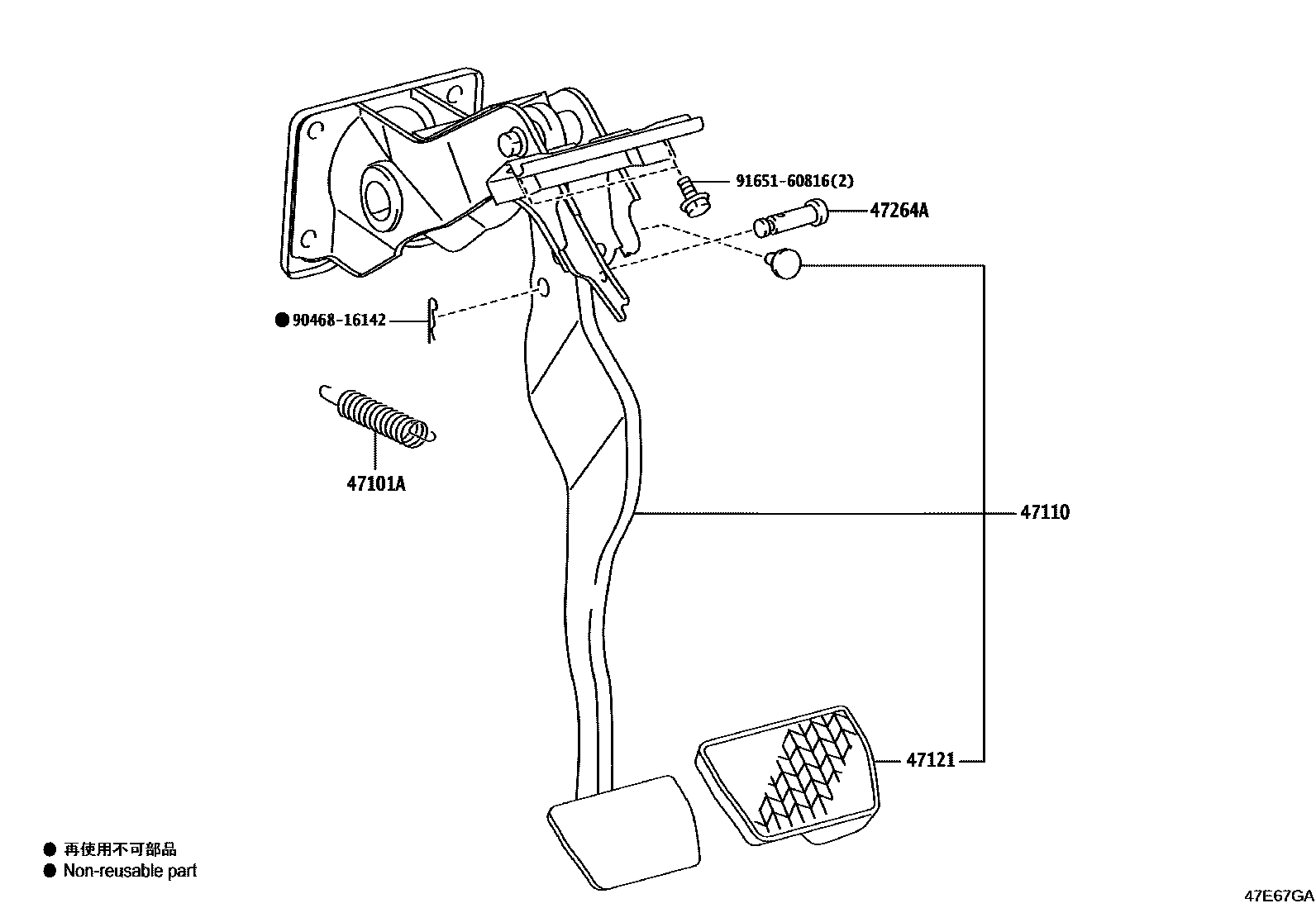

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-16029iGRJ7#201408-201507

47110SUPPORT ASSY, BRAKE PEDAL

main47110-60420iGRJ7#201408-201507

main47110-60830iGDJ76202311

47121PAD, BRAKE PEDAL

main31321-52010iGRJ7#201408-201507

main47121-16020iGDJ76202311

47264APIN(FOR PUSH ROD)

main90249-10017iGRJ7#201408-201507

9046816142

main90468-16142

9165160816

main91651-60816

6 parts on this diagram · 2 diagrams in section
