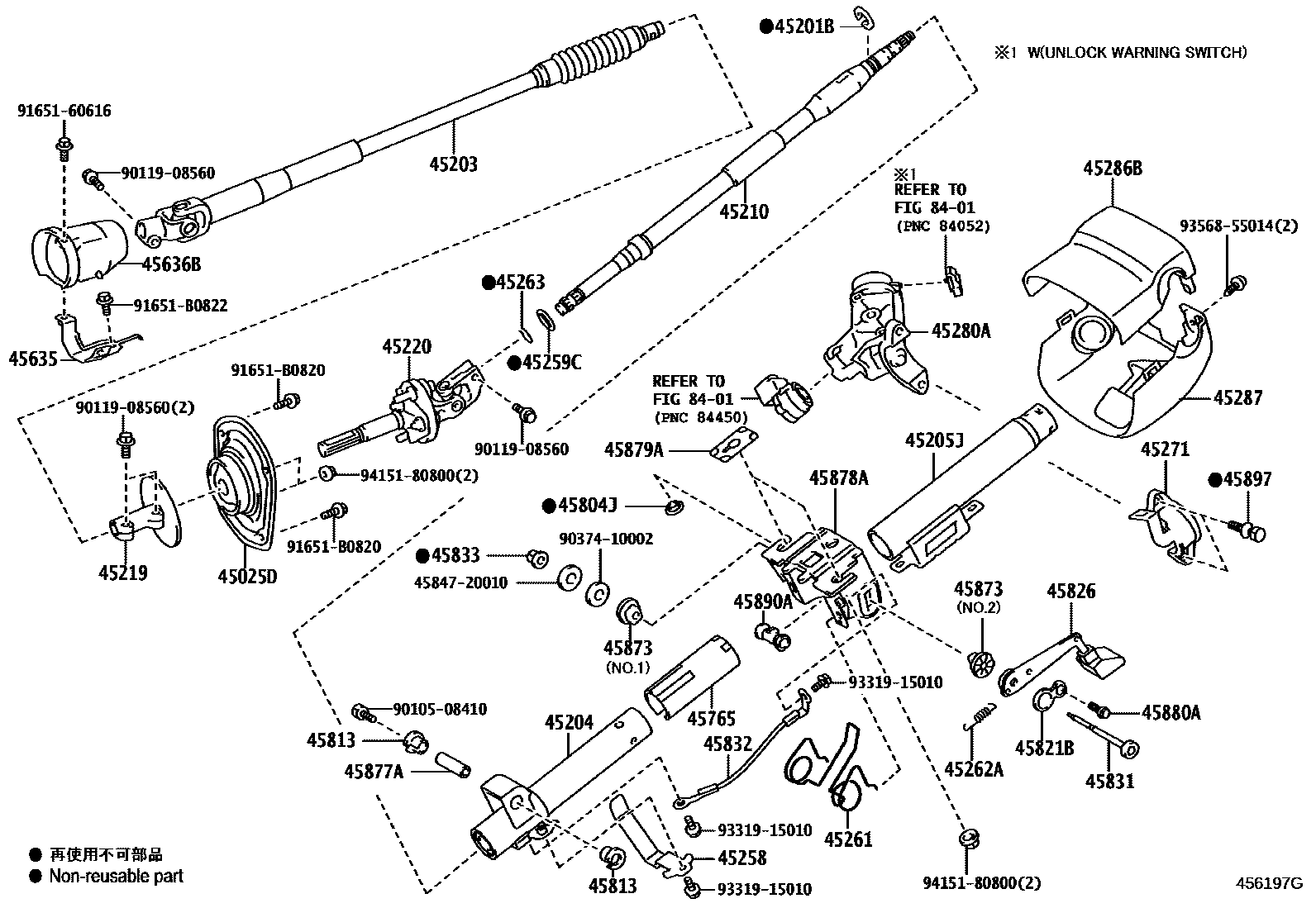

STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2
45204TUBE ASSY, STEERING COLUMN, LOWER
45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER
45210SHAFT ASSY, STEERING MAIN
45219YOKE, STEERING SLIDING
45258BRACKET, STEERING COLUMN TUBE
45259CSHEET, STEERING MAIN SHAFT BEARING
45261SPRING, TILT STEERING JUMP UP
45262ASPRING, TILT LEVER RETURN
45263RING, STEERING COLUMN, NO.1
45271CLAMP, STEERING COLUMN, UPPER
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45286BCOVER, STEERING COLUMN, UPR
BLUISH GRAY,TRIM1#
BLACK,TRIM1#,2#
45287COVER, STEERING COLUMN, LWR
BLUISH GRAY,TRIM1#
BLACK,TRIM1#,2#
45635SUPPORT, INTERMEDIATE LINK JOINT PROTECTOR
45636BPROTECTOR, INTERMEDIATE LINK JOINT
45765GUIDE, TELESCOPIC STEERING
45804JCOLLAR SUB-ASSY, BREAK AWAY
45813COLLAR, TILT STEERING SUPPORT, NO.1
45821BREINFORCE, TILT STEERING SUPPORT, NO.1
45826LEVER, STEERING TILT
45831BOLT, TILT LEVER LOCK, NO.1
45832CABLE, TILT STEERING SUPPORT BOND
45833NUT, TILT STEERING ADJUSTING, NO.1
45877ASPACER, STEERING COLUMN BRACKET
45878ABRACKET, BREAK AWAY
45879ACAPSULE, BREAK AWAY
45880ABOLT(FOR STEERING TILT LEVER)
45890APAWL ASSY, TILT STEERING
8401SWITCH & RELAY & COMPUTER
4584720010
main45847-20010
9010508410
main90105-08410
9011908560
main90119-08560
9037410002
main90374-10002
9165160616
main91651-60616
91651B0820
main91651-B0820
91651B0822
main91651-B0822
9331915010
main93319-15010
9356855014
main93568-55014
9415180800
main94151-80800
45 parts on this diagram · 2 diagrams in section
